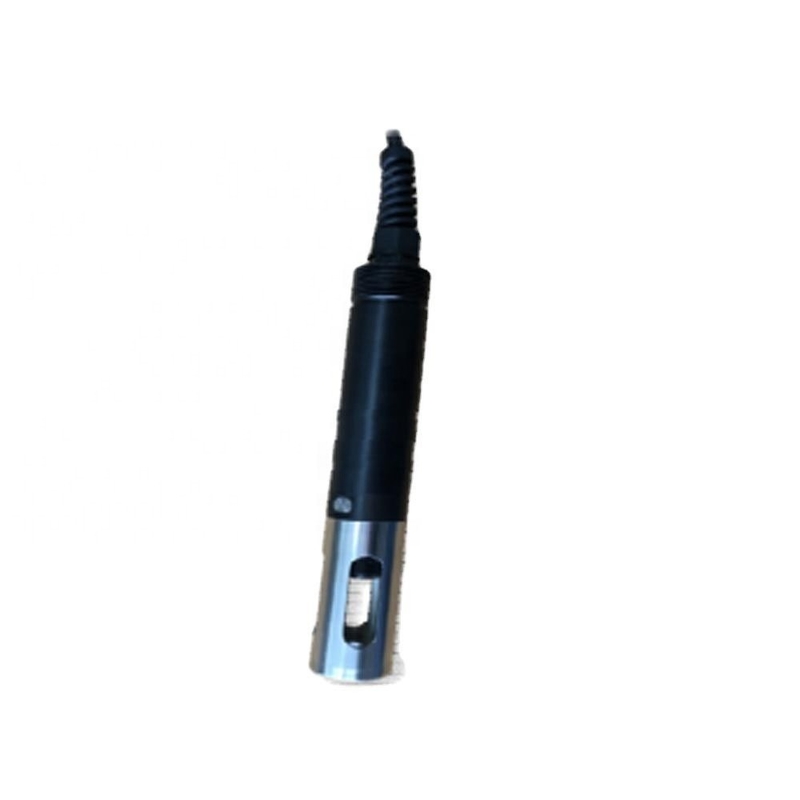

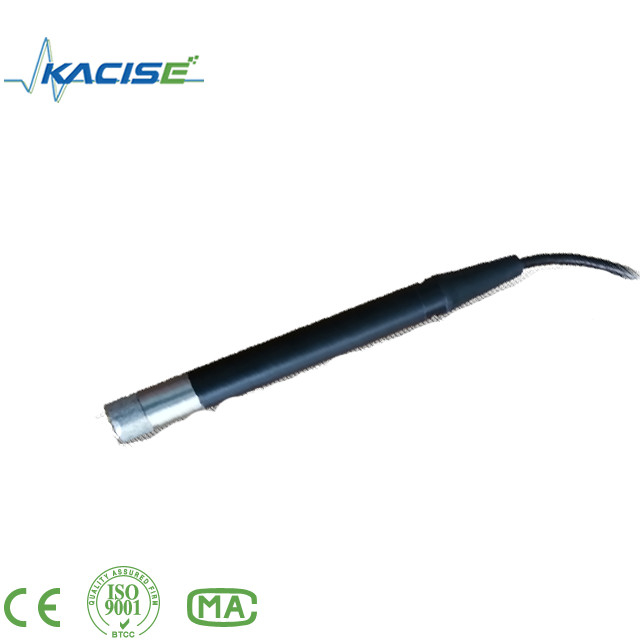

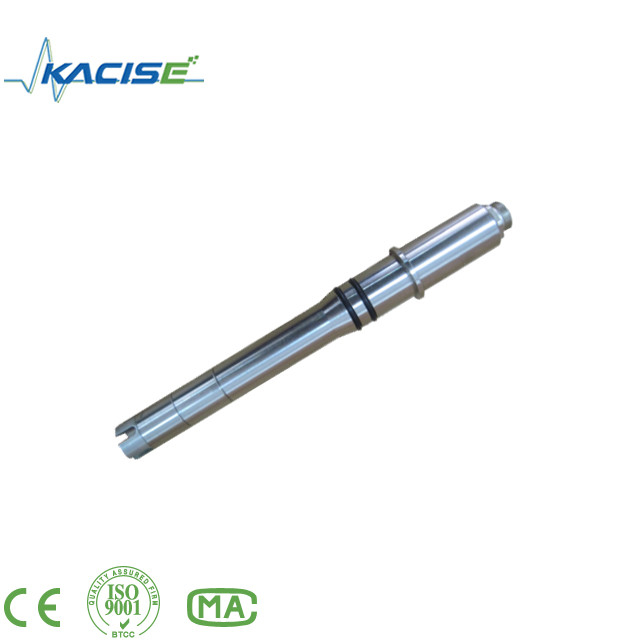

Fluorescent Dissolved Oxygen Sensor DO Sensor For Shrimp Culture With 1% Accuracy

1. Applications

The measurement principle of a fluorescence dissolved oxygen sensor is based on fluorescence lifetime technology. In this method, a specific fluorescent material is employed that exhibits changes in fluorescence intensity in response to variations in the concentration of dissolved oxygen in the surrounding environment. When exposed to excitation light, the fluorescent material emits light, and the fluorescence lifetime is influenced by the presence of oxygen molecules.As dissolved oxygen interacts with the fluorescent material, it quenches the fluorescence, meaning the duration of fluorescence emission changes. By measuring the fluorescence lifetime, the sensor can accurately determine the concentration of dissolved oxygen in the medium. This technology allows for precise and reliable measurements without the need for direct contact with the sample, providing a non-intrusive and efficient method for monitoring dissolved oxygen levels in various applications, including environmental monitoring and industrial processes.

The fluorescence dissolved oxygen sensor uses a new generation of fluorescence lifetime technology. Kacise independently develops high performance fluorescent materials. No anaerobic consumption, no flow restrictions, no electricity required. The solution requires no maintenance and calibration, no hydrogen sulphide, and excellent stability. Built-in temperature sensor and automatic temperature compensation. The RS485 output is suitable for networks without a controller.

2. Feature

• Digital sensor, RS485 output, support MODBUS,
• no membrane,
• no electrolyte,
• no interference,
• no need for frequent calibration,
• no oxygen,
• no flow restriction,
• built-in temperature sensor, automatic temperature compensation.

3.Technical Specifications
