Sensitive Dissolved Oxygen Probe sensor For Shrimp aquaculture

Place of Origin:

Shaanxi, China

Nama merek:

Kacise

Hubungi Kami

Minta Kutipan

Sensitive Dissolved Oxygen Probe sensor For Shrimp aquaculture

Rincian produk

principle:

Ultraviolet fluorescence method

Measuring range:

0~20mg/L

Accuracy:

Power supply:

DC 5~12V, current <50mA

Calibration:

two point calibration

Power suppluy:

12~24VDC ±10%

Port:

Xi'an or other

Syarat Pembayaran & Pengiriman

Harga

$100.00 - $1,000.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Supply Ability

500 Piece/Pieces per Month

Produk terkait

KCW102 Perangkat pengolahan air gelombang elektromagnetik frekuensi rendah

Dapatkan Harga Terbaik

KCW101 Frekuensi - Peralatan pengolahan air gelombang elektromagnetik yang dimodulasi

Dapatkan Harga Terbaik

KHM100 Monitor Kualitas Air Logam Berat Otomatis Online

Dapatkan Harga Terbaik

KCW104 Frekuensi efisiensi tinggi - Perangkat menyapu

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

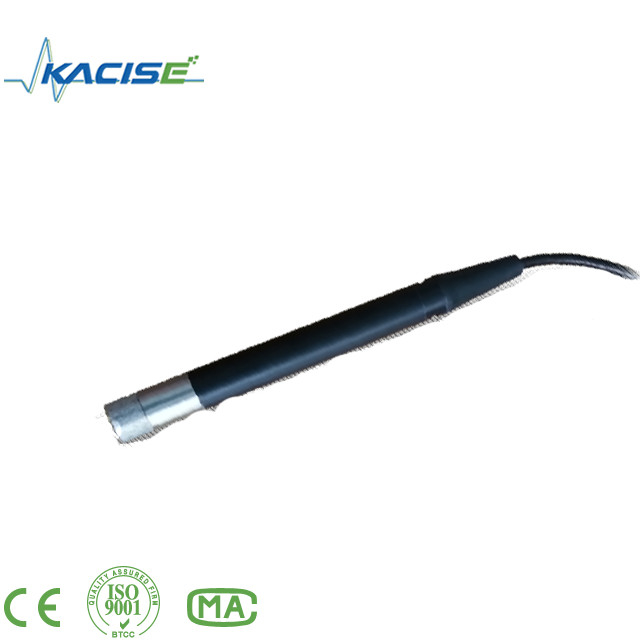

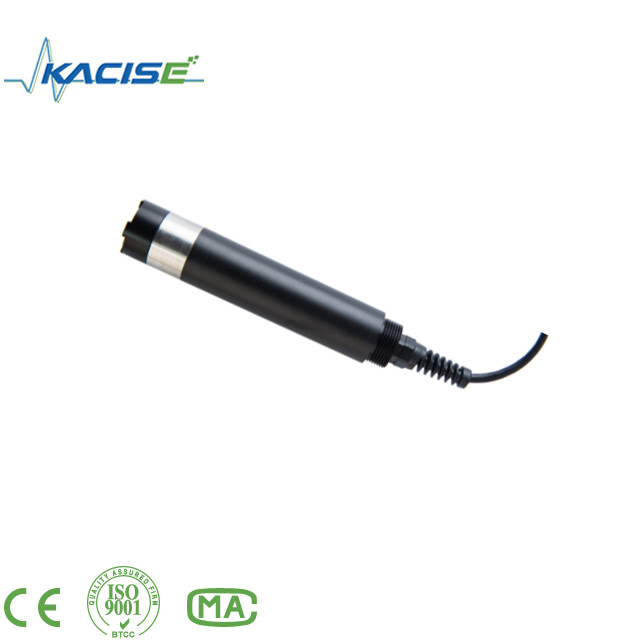

Sensitive Dissolved Oxygen Probe sensor For Shrimp aquaculture

1. Applications

The fluorescence dissolved oxygen sensor uses a new generation of fluorescence lifetime technology. Kacise independently develops high performance fluorescent materials. No anaerobic consumption, no flow restrictions, no electricity required. The solution requires no maintenance and calibration, no hydrogen sulphide, and excellent stability. Built-in temperature sensor and automatic temperature compensation. The RS485 output is suitable for networks without a controller.

2. Feature

Digital sensor, RS485 output, support MODBUS,
no membrane,
no electrolyte,
no interference,
no need for frequent calibration,
no oxygen,
no flow restriction,
built-in temperature sensor, automatic temperature compensation.

3.Technical Specifications

product	Online fluorescence dissolved oxygen sensor
principle	Ultraviolet fluorescence method
Measuring range	0~20mg/L
Response time	10 sec
accurate	1%
Protection level	IP68
Deepest depth	Underwater 60 meters	underwater 10 meters
temperature range	0 ~ 50℃
Output	Support RS-485, MODBUS protocol
Power supply	DC 5~12V, current <50mA
size	Φ26*177.5 mm
Probe cable length	10 m, customizable 5 m, 15 m and 30 m cable
Fluorescent cap life	1 year
Maximum working pressure	6bar
product material	POM or ss316
