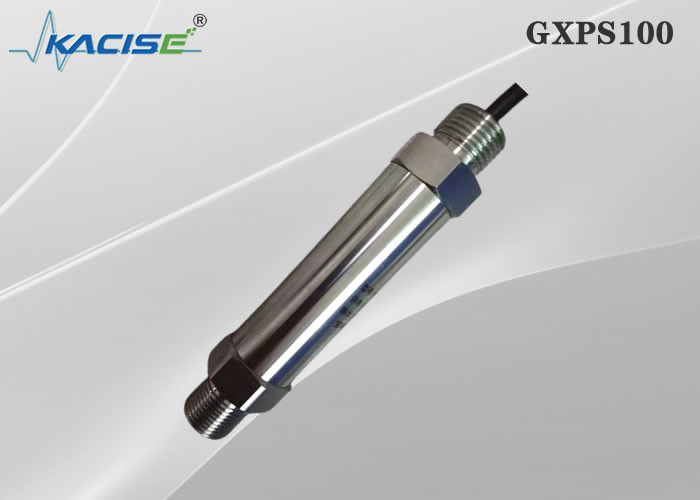

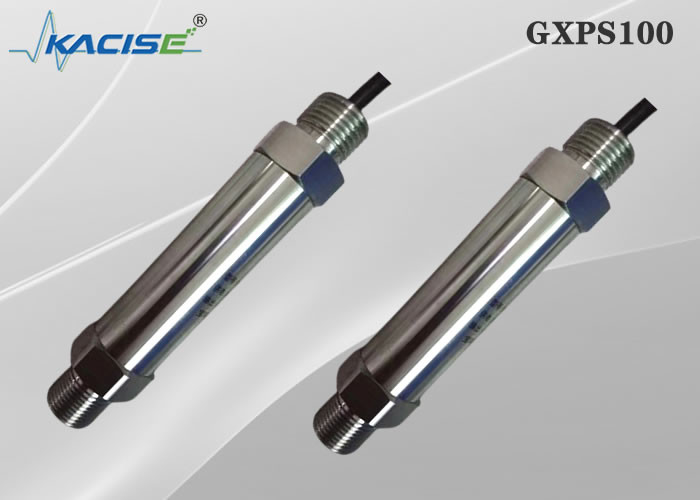

Name: GXPS100 Piezoresistive Mems Pressure Sensor For Medical Applications
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GXPS100
Price: 60 USD
Availability: InStock

Rumah > Produk > Sensor tekanan presisi >

GXPS100 Piezoresistive Mems Pressure Sensor For Medical Applications

Precision Piezoresistive Mems Pressure Sensor

Medical Piezoresistive Mems Pressure Sensor

Stainless Steel 304 Precision Pressure Sensor

Place of Origin:

China

Nama merek:

Kacise

Model Number:

GXPS100

Hubungi Kami

Minta Kutipan

GXPS100 Piezoresistive Mems Pressure Sensor For Medical Applications

Rincian produk

Measuring media:

Liquid/gas

Measuring range:

-0.1...0~0.01...60MPa

Overpressure:

150 %FS

Pressure type:

Gauge pressure

Power supply:

12~30V

Output signal:

4~20 mA

Accuracy:

±0.25%FS ±0.5%FS

Operating temperature:

-30~+80°C

Protection:

IP65

Housing material:

Stainless steel 304

Process connection:

1/4”NPT male or others

Menyoroti:

Precision Piezoresistive Mems Pressure Sensor

Medical Piezoresistive Mems Pressure Sensor

Stainless Steel 304 Precision Pressure Sensor

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

Harga

60USD/pc

Packaging Details

carton

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100+

Produk terkait

Bagian Otomotif Sensor Tekanan AC Otomotif

Dapatkan Harga Terbaik

4-20mA Output Grade Makanan Sanitasi Flush Diaphragm Hygienic Industrial Pressure Transmitter

Dapatkan Harga Terbaik

Low Cost 0,5-4,5V Kuningan Sensor Tekanan Air Untuk Gas Udara Industri

Dapatkan Harga Terbaik

4-20mA HART Output Smart Double Flange Differential Level Pressure Transmitter untuk Industri

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

1.Introduction
Smart pressure transmitter is designed for use in applications which deal with corrosive pressure media. A high sensitivity silicon pressure chip is employed in the sensor.Through strict component making, semi-finished product and all-finished product testing and aging, the transmitter is stable
and reliable, having excellent flexibility, sensitivity and diversity.It is widely used for pressure measure and control of petroleum,chemi-industry, metallurgy, power station and hydrology, etc.

2. Specification

Measuring media	Liquid/gas
Measuring range	-0.1...0~0.01...60MPa
Overpressure	150 %FS
Pressure type	Gauge pressure
Power supply	12~30V
Output signal	4~20 mA
Accuracy	±0.25%FS ±0.5%FS
Long-term stability	0.2%FS/year
Storage temperature	-40~+120°C
Operating temperature	-30~+80°C
Process connection	Bottom thread	1/4”NPT male or others
Electrical connection	G1/2
Protection	IP rating		IP65
Housing material	Stainless steel 304

3. Dimension (Unit:mm OEM acceptable)

GXPS100 Piezoresistive Mems Pressure Sensor For Medical Applications 0

4.Electrical connection

(2 wires,4~20mA)
RED: Power +
BLACK: Power - (4~20mA)

5.Production and shipment pictures

GXPS100 Piezoresistive Mems Pressure Sensor For Medical Applications 1

GXPS100 Piezoresistive Mems Pressure Sensor For Medical Applications 2

GXPS100 Piezoresistive Mems Pressure Sensor For Medical Applications 3
