Name: KWS-300 Four Electrode Digital Conductivity Sensor Accurate Temperature And Readings
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWS-300
Price: 5,000.00 USD
Availability: InStock

Rumah > Produk > Sensor Kualitas Air >

KWS-300 Four Electrode Digital Conductivity Sensor Accurate Temperature And Readings

Four Electrode Digital Conductivity Sensor

KWS-300 Digital Conductivity Meter

Temperature Readings Conductivity Sensor

Place of Origin:

China

Nama merek:

Kacise

Model Number:

KWS-300

Hubungi Kami

Minta Kutipan

KWS-300 Four Electrode Digital Conductivity Sensor Accurate Temperature And Readings

Rincian produk

Accuracy:

Resolution:

1uS/cm

Response time:

<2 sec

Ip Grade:

IP68

Maximum operating pressure:

6 bar

Temperature Range:

0 ~ 50℃

Output:

RS-485, MODBUS protocol

Power Supply:

DC 5~12V, <50mA

Temperature Sensor:

NTC

Electrode material:

Nickel

Wetted Part Material:

PEEK

Calibration Method:

One/Two-point calibration

Menyoroti:

Four Electrode Digital Conductivity Sensor

KWS-300 Digital Conductivity Meter

Temperature Readings Conductivity Sensor

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

Harga

dapat dinegosiasikan

Packaging Details

carton

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100+

Produk terkait

KCW102 Perangkat pengolahan air gelombang elektromagnetik frekuensi rendah

Dapatkan Harga Terbaik

KCW101 Frekuensi - Peralatan pengolahan air gelombang elektromagnetik yang dimodulasi

Dapatkan Harga Terbaik

KHM100 Monitor Kualitas Air Logam Berat Otomatis Online

Dapatkan Harga Terbaik

KCW104 Frekuensi efisiensi tinggi - Perangkat menyapu

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

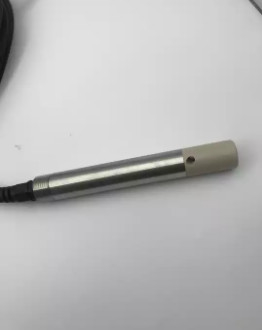

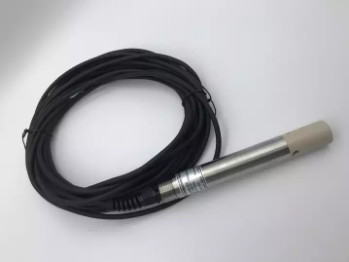

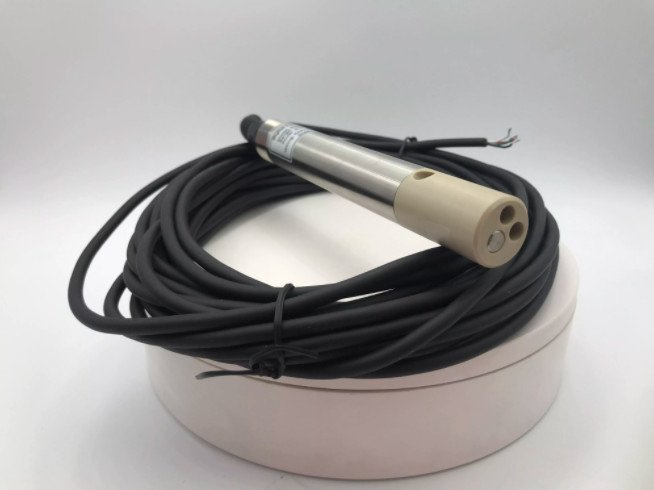

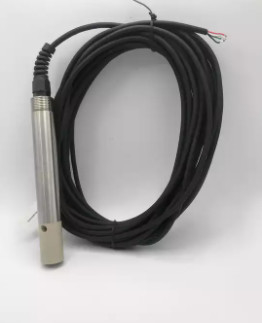

KWS-300 Digital Conductivity Sensor
Introduction
Kacise KWS-300 digital conductivity sensor with new generation of four-electrode / six-electrode
technology. Wide range of measurement, automatic switching measurement range, built-in temperature
sensor, Real-time temperature compensation. Excellent resistance to pollution, even in harsh
environments long-term online monitoring, there will be no polarization. RS485 output, can be networked
without controller.

Feature

Digital sensor, RS485 output, support Modbus
Wide measuring range, automatic switching measurement range
Built-in temperature sensor, real-time temperature compensation
Four-electrode / six-electrode technology, no polarization

Specification

Item	Four-electrode conductivity sensor			Six-electrode condutivity sensor
Model	KWS-301	KWS-302		KWS-303
Measuring Range	1uS/cm~200mS/cm	1uS/cm~100mS/cm		1uS/cm~100 mS/cm
Accuracy	1%
Resolution	1uS/cm
Response time	<2 sec
Ip Grade	IP68
Maximum operating pressure	6 bar
Temperature Range	0~50℃
Output	RS-485, MODBUS protocol
Power Supply	DC 5~12V, <50mA
Temperature Sensor	NTC
Electrode material	Nickel
Wetted Part Material	PEEK
Sensor size	Φ 22*146.5 mm		Φ 22*140 mm
Cable Length	Standard 10m, customizable 5m, 15m and 30m cables
Calibration Method	One/Two-point calibration
