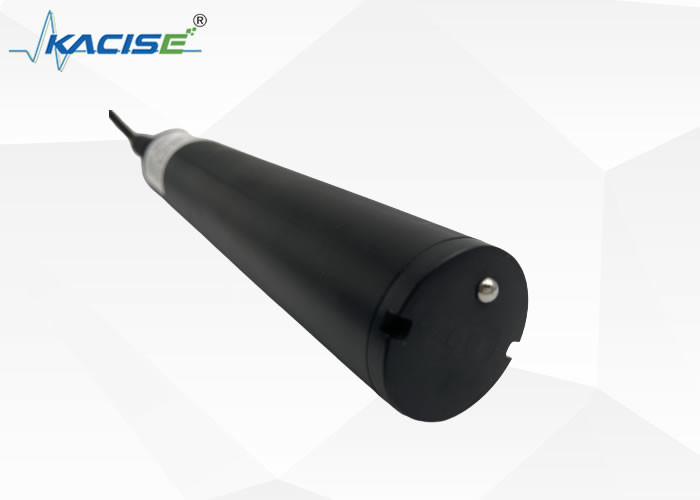

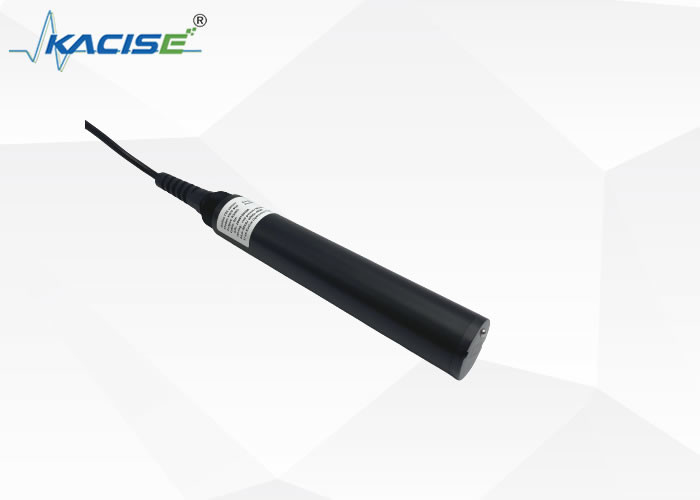

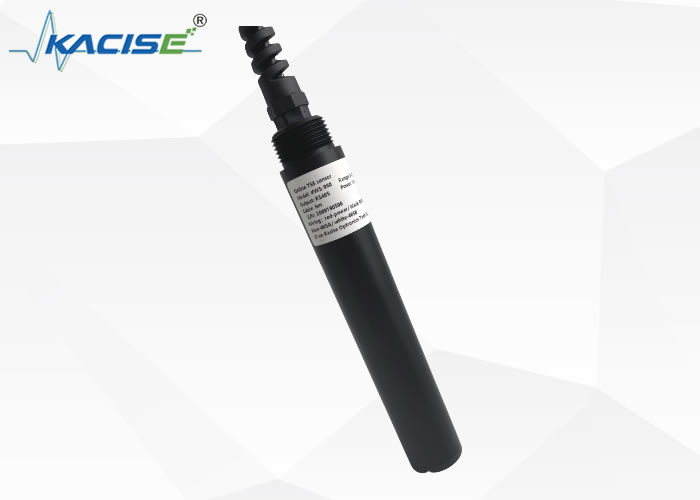

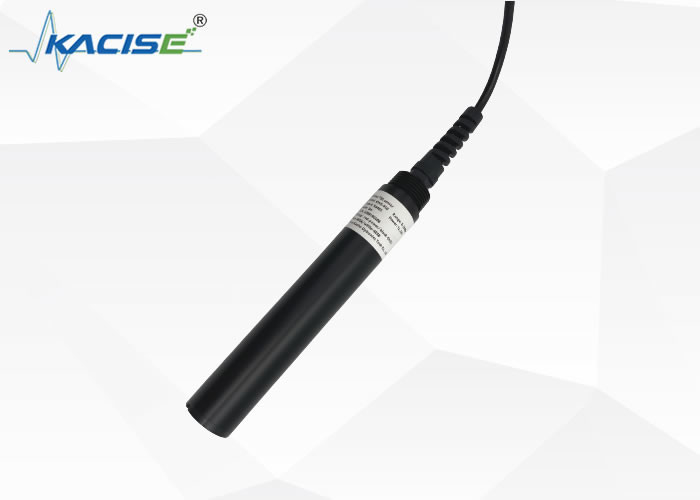

Name: Rs485 Wastewater Treatment Optical Turbidity Sensor Industrial Online Tss Sensor KWS-950
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWS-950
Price: 5,000.00 USD
Availability: InStock

Rumah > Produk > Sensor Kualitas Air >

Rs485 Wastewater Treatment Optical Turbidity Sensor Industrial Online Tss Sensor KWS-950

Wastewater Treatment Optical Turbidity Sensor

Industrial Online Tss Sensor

Rs485 Optical Turbidity Sensor

Place of Origin:

China

Nama merek:

Kacise

Model Number:

KWS-950

Hubungi Kami

Minta Kutipan

Rs485 Wastewater Treatment Optical Turbidity Sensor Industrial Online Tss Sensor KWS-950

Rincian produk

Measuring principle:

Scattered light method

Measuring range:

0 to 2000 mg / L

Resolution:

0.1 mg/L, 0.1 °C

Precision:

± 5%

Calibration method:

Two-point calibration

Temperature compensation:

Automatic temperature compensation (Pt1000 )

output method:

RS-485 (Modbus/ RTU )

Working conditions:

0 to 50 °C, < 0 .2MPa

storage temperature:

- 5 to 65 °C

Installation method:

Immersion mounting, 3/4" NPT thread

Cable length:

5 meters, other lengths can be customized

Power consumption:

< 0.5 W

power supply:

12 to 24 VDC ± 10%

Protection level:

IP68

Menyoroti:

Wastewater Treatment Optical Turbidity Sensor

Industrial Online Tss Sensor

Rs485 Optical Turbidity Sensor

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

Harga

dapat dinegosiasikan

Packaging Details

carton

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100+

Produk terkait

KCW102 Perangkat pengolahan air gelombang elektromagnetik frekuensi rendah

Dapatkan Harga Terbaik

KCW101 Frekuensi - Peralatan pengolahan air gelombang elektromagnetik yang dimodulasi

Dapatkan Harga Terbaik

KHM100 Monitor Kualitas Air Logam Berat Otomatis Online

Dapatkan Harga Terbaik

KCW104 Frekuensi efisiensi tinggi - Perangkat menyapu

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

KWS-950 Online TSS Sensor

Introduction

The KWS-950 integrated online TSS sensor is designed and manufactured using the principle of scattered light suspension measurement. When a beam of light is incident on a water sample, the light is scattered by the suspended matter in the water sample, and the scattered light in the water sample is calculated by measuring the intensity of the scattered light perpendicular to the incident light and comparing it with the internal calibration value,linearized to output the final value

Feature

0 to 50 °C; IP68 Protection, water depth within 20 meters
Principle of scattered light, built-in temperature sensor
Support RS-485, Modbus/ RTU protocol
Fiber-optic structure, strong resistance to external light interference
Infrared LED light source, high stability
Convenient, fast, stable and easy to maintain

Technical Specifications

Model	KWS-950
Measuring principle	Scattered light method
Measuring range	0 to 2000 mg / L
Resolution	0.1 mg/L, 0.1 °C
Precision	± 5%
Calibration method	Two-point calibration
Temperature compensation	Automatic temperature compensation (Pt1000 )
output method	RS-485 (Modbus/ RTU )
Working conditions	0 to 50 °C, < 0 .2MPa
storage temperature	- 5 to 65 °C
Installation method	Immersion mounting, 3/4" NPT thread
Cable length	5 meters, other lengths can be customized
Power consumption	< 0.5 W
power supply	12 to 24 VDC ± 10%
Protection level	IP68
