Name: KWS-910 Online Sludge Concentration Sensor 12V Input RS485 Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWS-910
Price: 5,000.00 USD
Availability: InStock

Rumah > Produk > Sensor Kualitas Air >

KWS-910 Online Sludge Concentration Sensor 12V Input RS485 Output

Online Sludge Concentration Sensor

RS485 Output Concentration Sensor

KWS-910 Water Quality Sensor

Place of Origin:

China

Nama merek:

Kacise

Model Number:

KWS-910

Hubungi Kami

Minta Kutipan

KWS-910 Online Sludge Concentration Sensor 12V Input RS485 Output

Rincian produk

Principle:

135° back light

Measuring Range:

0-4000 mg/L

Accuracy:

<3%

Protection Rate:

IP68

Deepest Depth:

underwater 10 meters

Temperature Range:

0 ~ 50℃

Output:

support RS-485, MODBUS protocol

Power Supply:

DC 6~12V, current <50mA (when not clean)

Installation:

Input type

Size:

Φ33mm*156mm

Probe Cable Length:

10 m, 5 m, 15 m and 30 m cable customizable

Self-Cleaning System:

Yes

Casing Material:

POM

Optical Window:

optical fiber

Menyoroti:

Online Sludge Concentration Sensor

RS485 Output Concentration Sensor

KWS-910 Water Quality Sensor

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

Harga

dapat dinegosiasikan

Packaging Details

carton

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100+

Produk terkait

KCW102 Perangkat pengolahan air gelombang elektromagnetik frekuensi rendah

Dapatkan Harga Terbaik

KCW101 Frekuensi - Peralatan pengolahan air gelombang elektromagnetik yang dimodulasi

Dapatkan Harga Terbaik

KHM100 Monitor Kualitas Air Logam Berat Otomatis Online

Dapatkan Harga Terbaik

KCW104 Frekuensi efisiensi tinggi - Perangkat menyapu

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

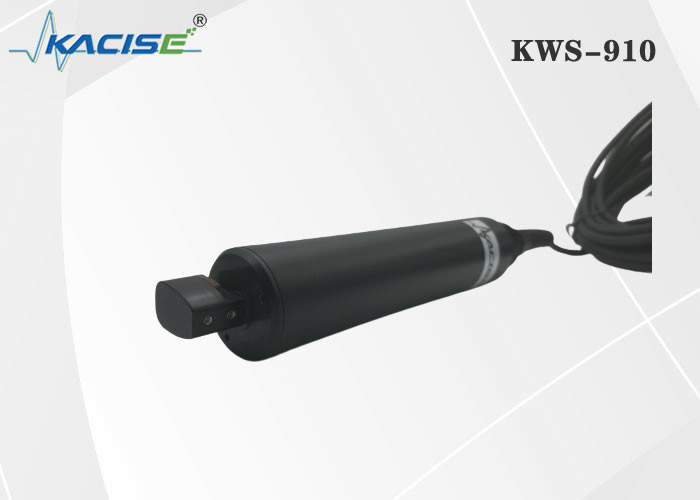

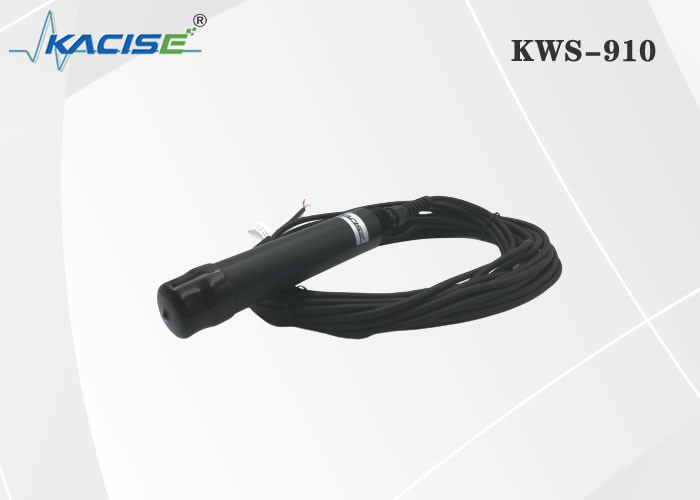

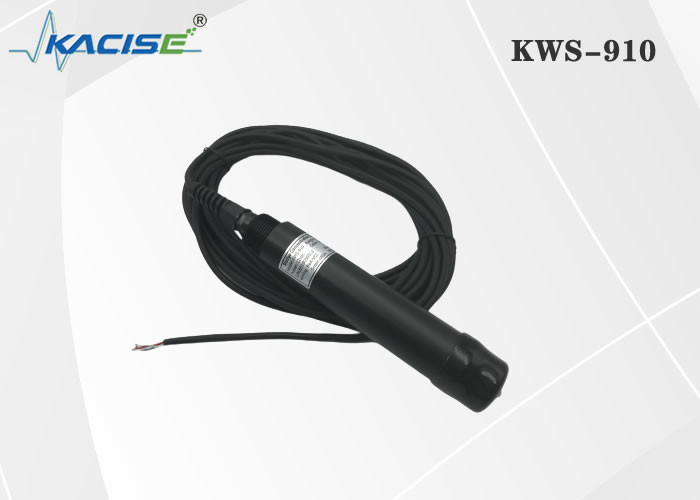

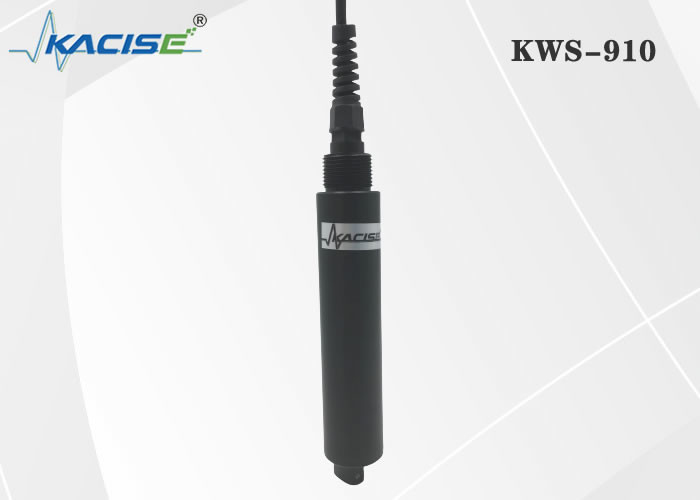

KWS-910 Online Sludge Concentration Sensor

Introduction

Kacise sludge concentration sensor adopts 135° back light principle, 880nm infrared LED light source, adopts unique adaptive software algorithm, which can effectively remove external light interference. Fiber-optic construction for excellent repeatability and stability. The use of an automatic cleaning brush eliminates air bubbles, reduces the effects of contamination on the measurement, and allows for longer maintenance intervals and excellent stability over long-term online use.

Feature

Digital sensor, RS-485 output, support MODBUS
With automatic cleaning brush to prevent contamination and eliminate air bubbles
Compensate the color of the water to eliminate the interference of color on the measurement
Fiber-optic structure, not affected by ambient light

Technical Specifications

Item	Self-cleaning Sludge Concentration Sensor
Model	KWS-910
Principle	135° back light
Measuring Range	0-4000 mg/L
Accuracy	<3%
Protection Rate	IP68
Deepest Depth	Underwater 10 meters
Temperature Range	0 ~ 50℃
Output	support RS-485, MODBUS protocol
Power Supply	DC 6~12V, current <50mA (when not clean)
Installation	Input type
Size	Φ33mm*156mm
Probe Cable Length	10 m, 5 m, 15 m and 30 m cable customizable
Self-Cleaning System	Yes
Casing Material	POM
Optical Window	optical fiber

Applications
