PPM RS485 fishpound electrode Optical Dissolved Oxygen Sensor

Place of Origin:

China (Mainland)

Nama merek:

Kacise

Sertifikasi:

certificate of explosion-proof, CE

Model Number:

KWS610

Hubungi Kami

Minta Kutipan

PPM RS485 fishpound electrode Optical Dissolved Oxygen Sensor

Rincian produk

Product name:

Aquaculture Fluorescence Dissolved Oxygen Sensor

Range:

0-20mg/L

Accuracy:

±3%

IP Grade:

IP68

Sensor Drift:

<1% per year

Casing Material:

Titanium alloy/Stainless steel

Output:

RS485

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

1pcs

Harga

USD200-USD600

Packaging Details

gift box,carton box

Delivery Time

5 working days

Payment Terms

Western Union, MoneyGram, T/T

Supply Ability

1000 Pieces per month

Produk terkait

KCW102 Perangkat pengolahan air gelombang elektromagnetik frekuensi rendah

Dapatkan Harga Terbaik

KCW101 Frekuensi - Peralatan pengolahan air gelombang elektromagnetik yang dimodulasi

Dapatkan Harga Terbaik

KHM100 Monitor Kualitas Air Logam Berat Otomatis Online

Dapatkan Harga Terbaik

KCW104 Frekuensi efisiensi tinggi - Perangkat menyapu

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

RS485 fishpound dissolved oxygen electrode Optical Dissolved Oxygen Sensor

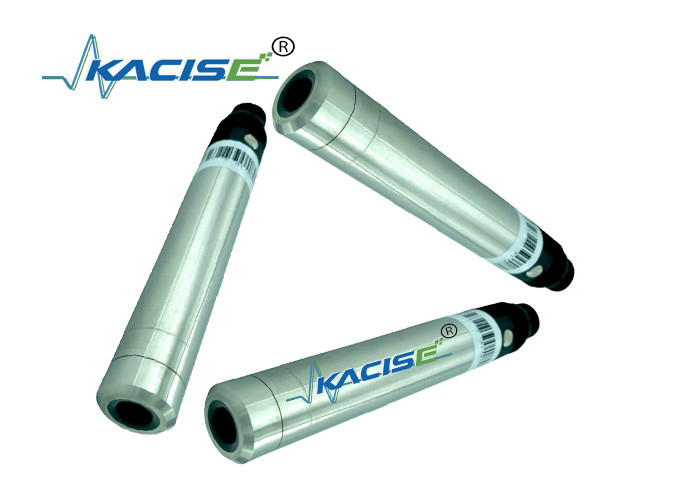

PPM RS485 fishpound electrode Optical Dissolved Oxygen Sensor 0

Introduction

The Kacise KWS-610 fluorescence dissolved oxygen sensor is designed for the aquaculture industry. It has the characteristics of stable online monitoring, and it has excellent characteristics compared with the traditional type sensor. It has no membrane, no need electrolyte, strong anti-interference, no need for frequent calibration, no consumption of oxygen, no flow rate limitation, auto matic temperature and Gas pressure compensation, gast reaction speed, long service life and more economical and convenient, so the fluorescence dissolved oxygen sensor is the best choice for real-time dynamic monitoring of oxygen content in aquaculture.

Features

No membrane, no need electrolyte
No need to consume oxygen, not affected by flow rate
Built-in temperature sensor, automatic temperature compensation
Free from chemical interferences such as sulfides
Small annual drift, fast response, and more accurate measurement
Free of maintenance, longer application cycle and lower cost of use
Fluor cap replacement is simple
Support RS-485, MODBUS protocol

Technical Specifications

Range	0-20mg/L or 0-200% saturation
Accuracy	±3%
Response Time	60s
Ip Grade	IP68
Sensor Drift	<1% per year
Temperature Accuracy	Temperature Accuracy
Output	RS485, Modbus
Power Supply	DC6-12V ±5%, current<50mA
Temperature Sensor	NTC
Casing Diameter	22mm
Casing Length	188.3mm
Cable Length	Standard 5m, customizable 10m, 15m and 30m
Fluorescent Cap Lifetime	1 year (under normal use)
Casing Material	Titanium alloy/Stainless steel

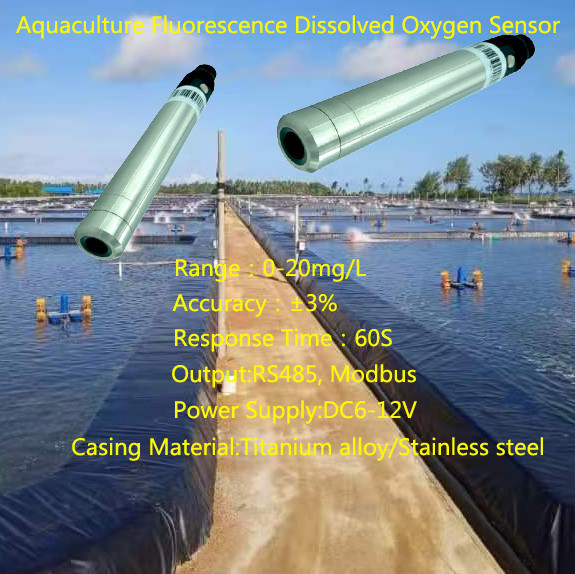

PPM RS485 fishpound electrode Optical Dissolved Oxygen Sensor 1
