Name: 10m Ultrasonic Transducer Sensor non contact liquid level sensor For Tank
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS630
Price: 1,000.10 USD
Availability: InStock

Rumah > Produk > Sensor Transduser Ultrasonik >

10m Ultrasonic Transducer Sensor non contact liquid level sensor For Tank

10m Ultrasonic Transducer Sensor

10m Non Contact Liquid Level Sensor

10m Liquid Level Sensor For Tank

Place of Origin:

China (Mainland)

Nama merek:

Kacise

Sertifikasi:

certificate of explosion-proof, CE

Model Number:

KUS630

Hubungi Kami

Minta Kutipan

10m Ultrasonic Transducer Sensor non contact liquid level sensor For Tank

Rincian produk

Response Time:

＜50ms

Beam Angle:

7°±2

Temp. Compensation:

inside/outside/fix temp.

Operating Voltage:

14.5VDC~27VDC

Output:

RS485,0~5V

Operating Ambient Temp.:

0~70℃ (-40~85℃, -55~125℃, etc, customizable)

IP grade:

IP65

Detection Range:

200mm~3000mm

Transducer Frequency:

70KHZ

Repeatability Precision:

≤1%

Usage:

Long range object detection

Range:

10-30m

Menyoroti:

10m Ultrasonic Transducer Sensor

10m Non Contact Liquid Level Sensor

10m Liquid Level Sensor For Tank

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

1pcs

Harga

dapat dinegosiasikan

Packaging Details

gift box,carton box

Delivery Time

5 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal

Supply Ability

1000 Pieces per month

Produk terkait

Sensor jarak bawah air KUS-W80 200kHz Frekuensi transduser dan arus bebas beban rendah untuk pengukuran jarak bawah air

Dapatkan Harga Terbaik

KUS-W50 Sensor Jarak Bawah Air Perlindungan Polaritas Balik Dan Area Buta 0,6m Untuk Pemantauan Bawah Air Tanpa Kerumitan

Dapatkan Harga Terbaik

KWD200 Sensor Komunikasi Bawah Air Ultrasonik

Dapatkan Harga Terbaik

KWD400 360 derajat pemindaian sonar presisi tinggi Konsumsi daya ≤ 12W

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

KUS630 10m-30m

non contact Intelligent Ultrasonic Water Level Sensor RS485 Output liquid level sensor

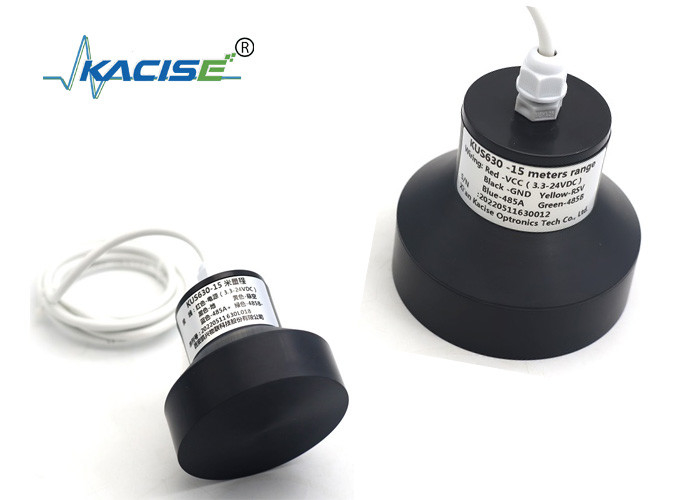

10m Ultrasonic Transducer Sensor non contact liquid level sensor For Tank 0

1. Product features:

High sensitivity.
Compact and robust structure.
IP68 high protection rating.
Corrosion resistant casing, suitable for corrosive medium and application

Application

Tank level measurement
Bin level measurement
Proximity zone detection
People detection
Robot ranging sensor
Autonomous navigation
Multi-sensors navigation
Distance measuring
Long range object detection
Industrial automation

2. Product Description

This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,
designed to meet IP65.

3. Parameter

General specifications

Model: KUS630
Measuring range	0.6m... 15m Or 1.2m….30m Or 1.8m….50m
Blind spot	0 ... 0.6m/1.2m/1.8m(Unstable working area is within 0.6m, it is not recommended to work in this range); the minimum blind area version of 0.3m can be achieved, which needs to be customized.
Supply voltage	3.3 ... 24 V DC , ripple 10 %SS
Working current	≤ 45 mA (fastest measurement speed) Low-power version, sleep power consumption is less than 0.3mA, sending power consumption is 20mA (less than 2ms), and receiving power consumption is not more than 8mA (less than 150ms)
Output signal	1:Programmable analog output 0-10V. 2:RS485 output. 3:Uart serial output 4:4-20mA output 5:Switch output
Measurement accuracy	≤1 %F.S.
Temperature compensation	Yes
Ranging resolution	0.1mm；

Working conditions

Working temperature	-25…70℃(248...343K)
Storage temperature	-40…85℃(233...358K)

Other instructions

Electrical connection	5-core cable (analog output), 6-core cable (switch output)；
Protection class	IP68
shell material	PVC /PVDF/PTFE/ABS

4. Dimensions

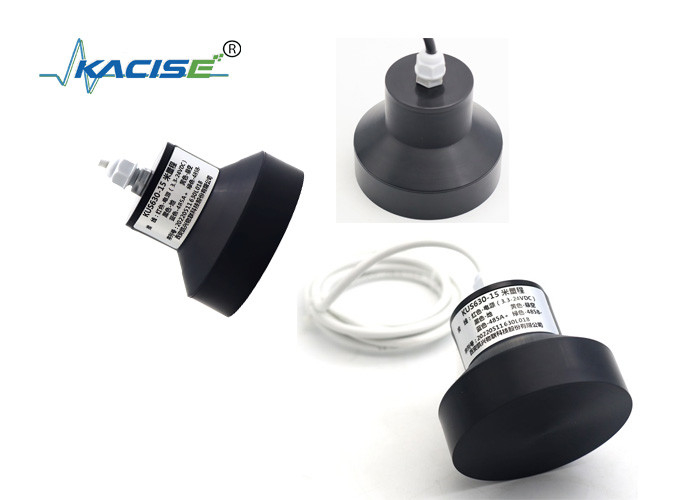

10m Ultrasonic Transducer Sensor non contact liquid level sensor For Tank 1

5. Wiring

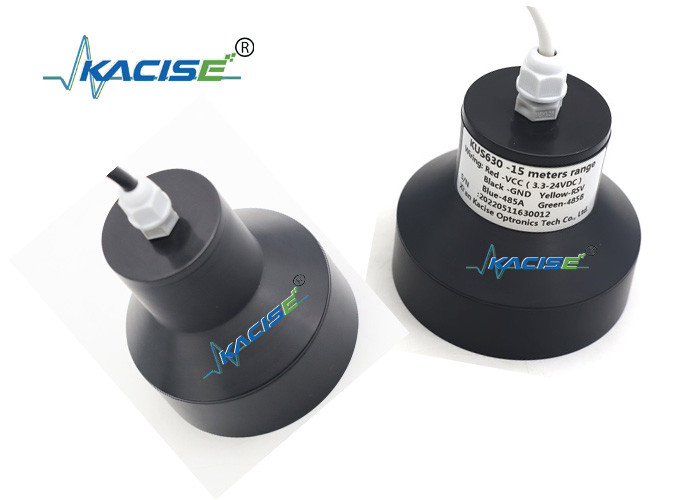

10m Ultrasonic Transducer Sensor non contact liquid level sensor For Tank 2
