low power 5m Ultrasonic water level Sensor RS485 KUS600

Place of Origin:

China (Mainland)

Nama merek:

Kacise

Sertifikasi:

ce,ISO9001

Model Number:

KUS series

Hubungi Kami

Minta Kutipan

low power 5m Ultrasonic water level Sensor RS485 KUS600

Rincian produk

Product:

Ultrasonic Distance Sensor

Detection Range:

300mm~5000mm

Transducer frequency:

approx. 220kHz

Output:

RS485 + 4-20mA/0-10V

Input power:

3.3V~24V

IP grade:

IP68

Material:

PVDF

Type:

Waterproof

Theory:

Ultrasonic Sensor

Warranty:

12 Months

Product name:

PVDF 5m Ultrasonic water level meter

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Pieces per Week

Produk terkait

Sensor jarak bawah air KUS-W80 200kHz Frekuensi transduser dan arus bebas beban rendah untuk pengukuran jarak bawah air

Dapatkan Harga Terbaik

KUS-W50 Sensor Jarak Bawah Air Perlindungan Polaritas Balik Dan Area Buta 0,6m Untuk Pemantauan Bawah Air Tanpa Kerumitan

Dapatkan Harga Terbaik

KWD200 Sensor Komunikasi Bawah Air Ultrasonik

Dapatkan Harga Terbaik

KWD400 360 derajat pemindaian sonar presisi tinggi Konsumsi daya ≤ 12W

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

KUS600B 3.3V input power RS485 output low consumption for wireless transmission ultrasonic distance transmitter

1. Electronic interface and signals definition

Electrical connections and signal definitions

Line order	Colour	Definition
1	Red	Power is positive
2	Black	power return ground
3	Yellow	Analog output, voltage output, current output switch output
4	Blue	RS485 A+ or uart TXD
5	Green	RS485 B- or uart RXD

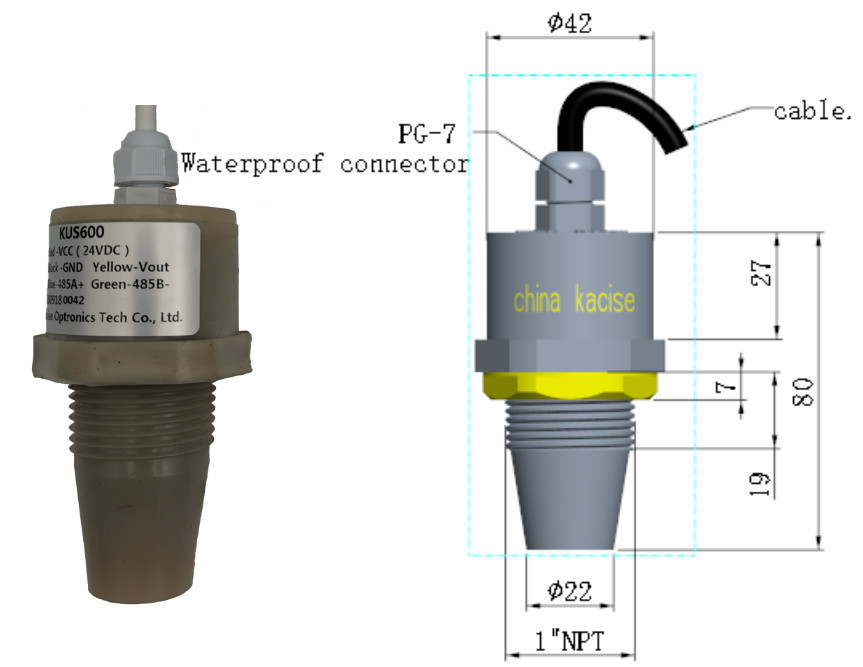

3. Dimensions

Unit in the diagram is mm

low power 5m Ultrasonic water level Sensor RS485 KUS600 1

4. Installation conditions
If the sensor is installed at the environment temperature fall below 0℃,It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.

5. Ordering information

KUS	model	output	range	describe
	630	Product series model
	Custom made
		0-10V	Analog 0-10V output
		0-5V	Analog 0-5V output
		0-3V	Analog 0-3V output
		4-20mA	Analog 4-20mA output
		SW	Switch output
		Uart	Uart serial output MODBUS RTU protocol
		RS485	RS485 output MODBUS RTU protocol
			XX m	XX m means the maximum measurement distance (default 10m)
KUS	550	RS485	2m

low power 5m Ultrasonic water level Sensor RS485 KUS600 2

Packing and shipping

low power 5m Ultrasonic water level Sensor RS485 KUS600 3
