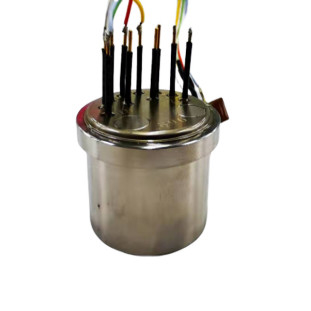

High Temperature Quartz Flexible Accelerometer Module Analog output

KSJR-5 High temperature Quartz flexible Accelerometer

• Feature

☆ Tactical navigation grade performance

☆ High value

☆ Environmentally rugged

☆ Analog output

☆ Compact design

☆ Built-in test

        ☆  Field-adjustable range

• Application
• ☆ Deep well level measuring

☆ Automotive test instrumentation

☆ Braking system deceleration

☆ Bridge and building sway and tilt monitoring

☆ Industrial and robotic control

☆ Land vehicle navigation

☆ Subway and train ride comfort control

        ☆ Offshore drilling platform motion monitoring

• Introduction

For an economic package, Kacise produces the KSJR-4 Quartz flexible Accelerometer for industrial grade applications including: automotive test instrumentation, braking system deceleration, bridge and building sway and tilt monitoring, industrial and robotic control, land vehicle navigation, subway and high-speed train ride comfort control, and offshore drilling platform motion monitoring. The KSJR-4 features a etched-quartz-flexure seismic system. An amorphous quartz proof-mass structure provides excellent bias, scale factor, and axis alignment stability. The integral electronics develops an acceleration-proportional output current providing both static and dynamic acceleration measurements. By use of a customer supplied output load resistor, appropriately scaled for the acceleration range of the application, the output current can be converted into a voltage.

• Parameter

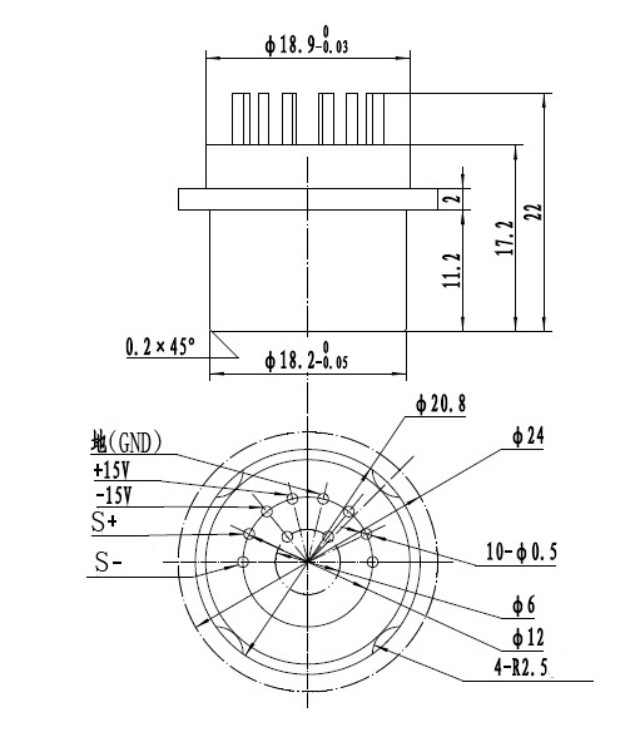

• Electronic interface and signals definition
•
