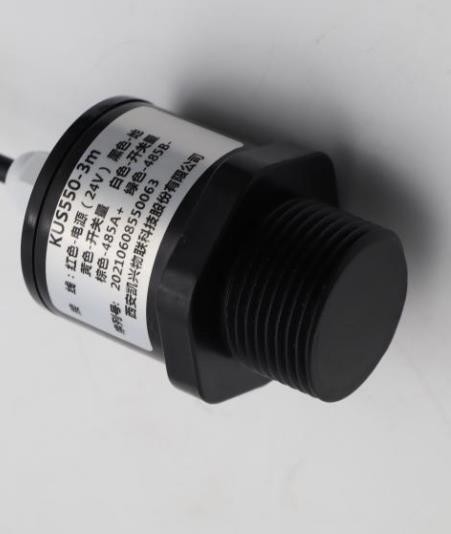

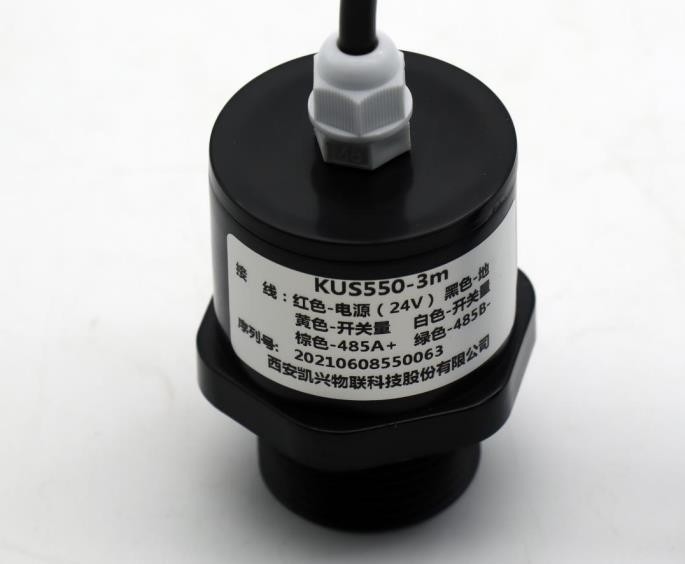

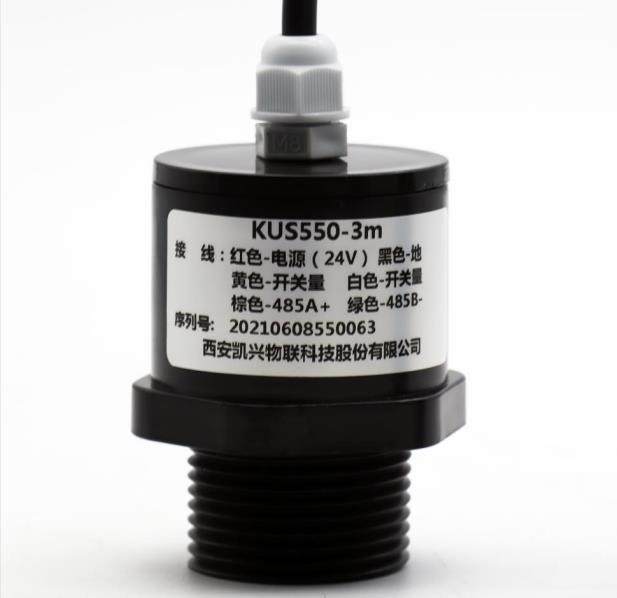

KUS550 Ultrasonic Level Sensor
1.Dimension
Unit in the diagram is mm.
2.Parameter
General specifications
| Model: KUS550 |
| Measuring range |
0.25m~3m (5m customizable)KUS550A
0.15m-0.6m(1m customizable)KUS550B；
|
| Blind spot |
The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm; |
| Supply voltage |
3.3 ... 30 VDC, ripple 10 %SS |
| Working current |
≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA; |
|
Output signal
|
0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output. |
| Measurement accuracy |
≤1 %F.S. |
| Temperature compensation |
Yes |
| Ranging resolution |
0.1mm； |
Working conditions
| Working temperature |
-40…85℃(233...358K) |
| Storage temperature |
-40…85℃(233...358K) |
3.Adjusting the analogue output.
The analogue output can be programed as the user want. Such as working at switch output or working at liner output all the parameters can be set by the RS485 interface.
There is 8 types of output functions can be programed.
All the setting routine as follows,
Step 1 set one pointed distance by the RS485,
Step 2 set another pointed distance by the RS485.
Step3 set the output type liner or switch, and set the related output options
Step4 reboot the sensor
1. Window mode normally-open and liner mode positive slope output function.
2. Window mode normally-closed and liner mode negative slope output function.
3. Single switching point, normally-open function.
4. Single switching point, normally-closed function.
5. Single switch point with hysteresis gap normally-open function.
6. Single switch point with hysteresis gap normally-closed function.
7. Detection of object presence-normal open function.
8. Detection of object presence-closed open function.
Switching point, Setting distance only after power on. The internal clock can assure can't be changed after 5 minutes after power on. If want to change the switching point, the user can only setting the request distance after power restart.
4.Introduction
This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,
designed to meet IP65.
5.Features
. Designed for outdoor or indoor environments
. High sensitivity
. Free run operation can continually measure and output ranger information
. Sensor beam angle is 7 degrees.
Selection reminder: For special requirements, please contact our company and indicate in the order.
Precautions:
1. If you need to calibrate the meter, please contact our company. Non-professionals are not allowed to calibrate the meter.
2. When calibrating the meter, please turn on the meter first, and calibrate it after 1 hour of constant temperature.
