Ip68 4~20mA RS485 Ammonia Nitrogen Sensor For Water Quality
Kacise KAN601 Online Ammonia Nitrogen Sensor Patented Probe IP68 Protection Level Easy To Install: 3/4 NPT Thread

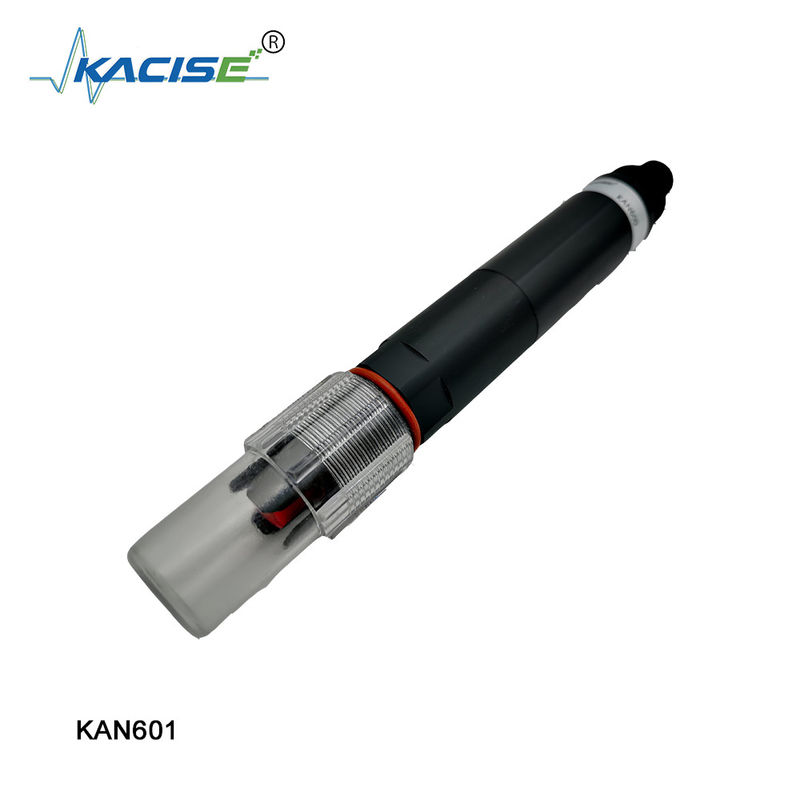

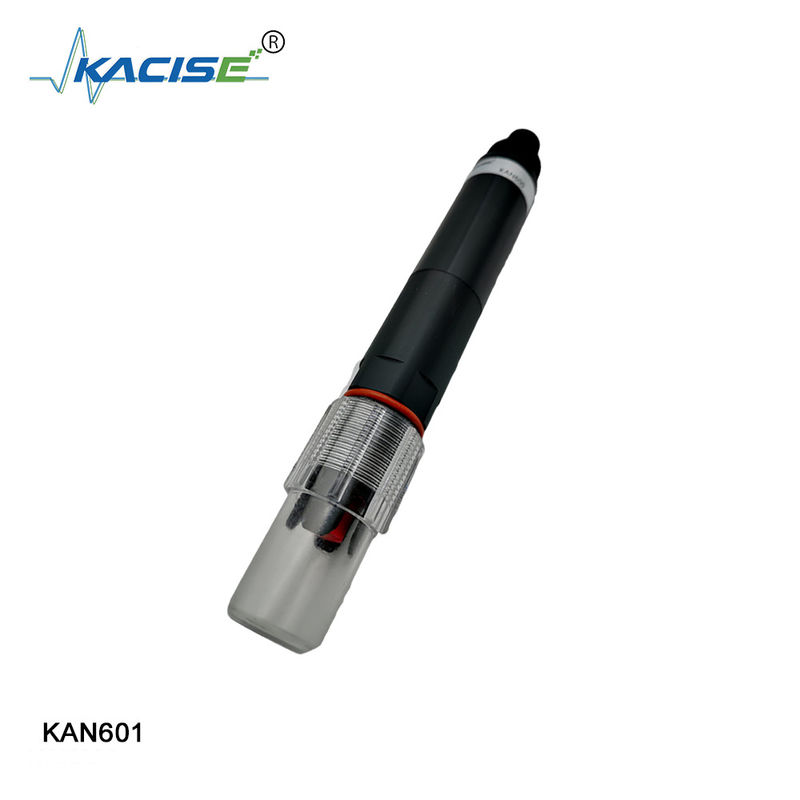

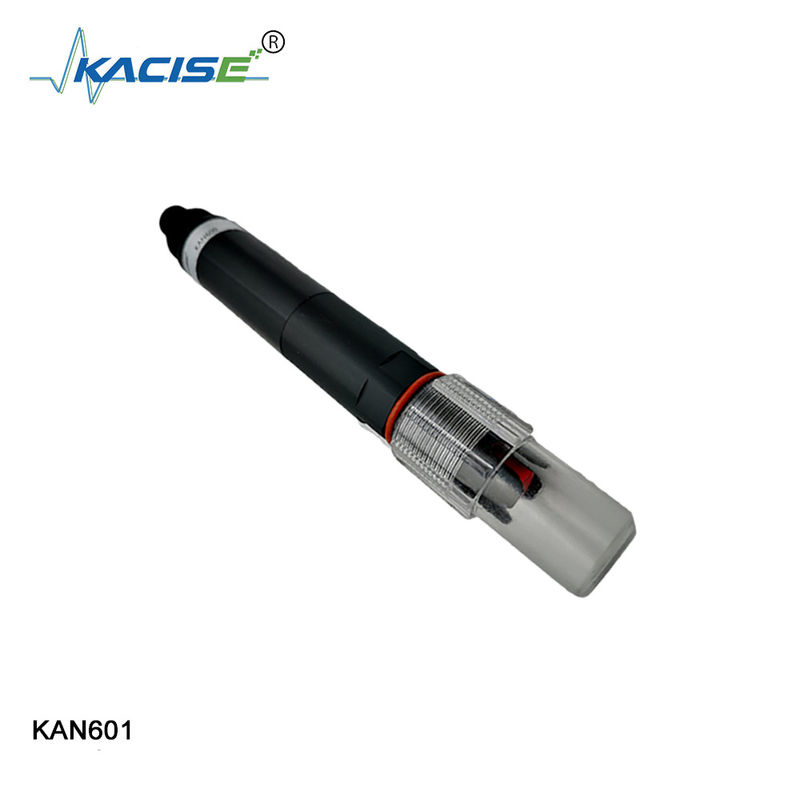

KAN601 Online Ammonia Nitrogen Sensor
Application Environment
KAN601 integrated online ammonia nitrogen sensor is fabricated using a PVC membrane-based ammonium ion-selective electrode for testing ammonium ion content in water with temperature compensation to ensure fast, simple, accurate, and economical testing. The technical parameters, maintenance, and communication protocols of the ammonia nitrogen sensor are described in detail in this user manual.
- Signal output: RS-485 bus, Modbus/RTU protocol, convenient to connect to PLC, DCS, industrial control computer, general controller, paperless recording instrument or touch screen, and other third-party equipment.
- In the patented ammonium ion probe, the internal reference solution oozes extremely slowly from the microporous salt bridge at a pressure of at least 100 KPa (1 Bar). Such a reference system is very stable and has a longer electrode life than conventional industrial electrodes.
- Easy to install: 3/4 NPT thread (pipe thread) for easy submersible installation or installation in pipes and tanks.
- IP68 protection level.
| Model |
KAN601 |
| Measuring range |
0～10.00mg/L(0～100.00mg/L) |
| Resolution |
0.1mg/L |
| Accuracy |
±10% or ±1mg/L |
| Working temperature |
0～40℃ |
| Working pressure |
＜0.1MPa |
| Medium PH range |
4～10 pH |
| Temperature compensation |
Temperature compensation (Pt1000) |
| Power supply |
12～24 VDC ±10% |
| Signal output |
RS-485 bus, Modbus/RTU protocol |
| Wetted material |
PVC and POM |
| Installation |
3/4NPT thread, immersion installation |
| Cable length |
5 meters, other lengths can be customized |
| Calibration |
Two-point calibration |
| Power consumption |
＜0.3W@12V |
| Protection grade |
IP68 |
Dimensional Drawing
Tip: Wastewater treatment processes
Wastewater treatment processes are concerned with controlling the energy-efficient removal of pollutants in the smallest possible space in the shortest possible time.
Required are:
• detailed knowledge of the underlying process
• highest possible transparency of the process steps through corresponding measuring methods
The efficient control of Nitrogen in wastewater systems is possible by making those measurements directly in the wastewater process. This not only ensures purification but above all guarantees the economic operation of the entire plant.
Purification processes for the removal of nitrogen from wastewater
Nitrogen is found in a large variety of compounds and forms and is considered to be the ultimate “quick-change artist”.
In municipal wastewater, it is mainly encountered as a waste product in the form of urea, which is already converted in part to ammonium nitrogen by ammonification.
In the aeration basin, the initial step of nitrification consists of oxidizing the nitrogen present in wastewater via nitrite to nitrate, for which oxygen is required. During subsequent
denitrification, the nitrate (NO3–) is further converted to elemental nitrogen N2 under the absence of oxygen. This nitrogen in gas form is harmlessly released into the environment.
Due to the various framework conditions and different biologically active groups of microorganisms, both methods are conducted in two fundamentally separate processes.
The temporal and spatial sequence can be adapted to local conditions.
