Place of Origin:
China (Mainland)
Nama merek:
KACISE
Sertifikasi:
CE
Model Number:
KLD-2603

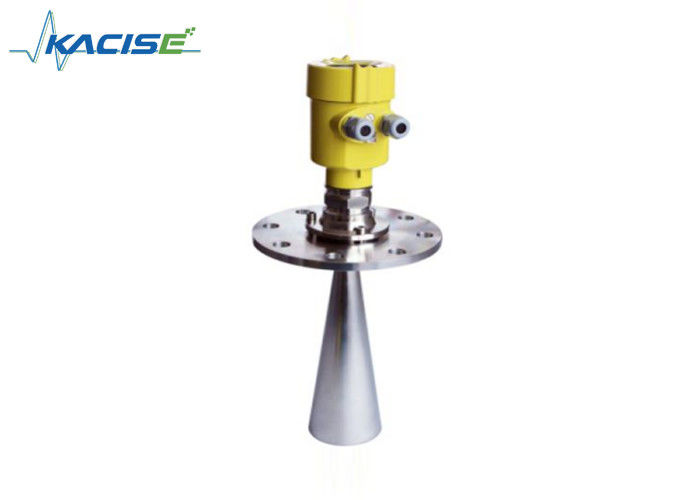

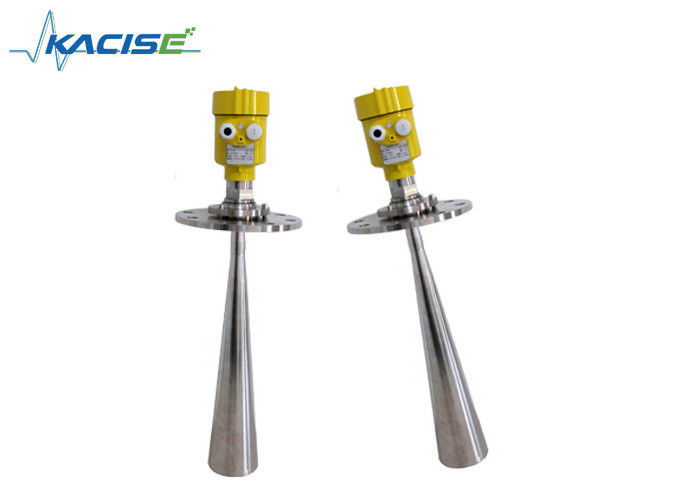

This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 80 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.
Product1 Parameters
| Suitable for Medium | Strongly corrosive liquid |
| Application | HCl, H2SO4, HF and strong base in tank, etc. |
| Measuring Range | 10m |
| Process Connection | Flange, Min. flange is DN80 |
| Medium Temperature | -40 ~ 120 ℃ |
| Process Pressure | -0.1 ~ 0.1MPa |
| Accuracy | ±5~10mm |
| Protection Grade | IP67 |
| Frequency Range | 26GHz |
| Explosion-proof Grade | Exia IICT6 Gb |
| The signal Output | 4 ~ 20mA/HART(2 wire/4wire),RS485/Modbus is optional |
Product2 Parameters
| Suitable for Medium | Resistance to temperature and pressure, and slightly corrosive liquid. |
| Application | Acetone, toluene, toluene, DM, etc. in tank |
| Measuring Range | 30m |
| Process Connection | Flange, Min. flange is DN80 |
| Medium Temperature | -40 ~ 150 ℃ |
| Process Pressure | -0.1 ~ 4MPa |
| Accuracy | ±3~10mm |
| Protection Grade | IP67 |
| Frequency Range | 26GHz |
| Explosion-proof Grade | Exia IICT6 Gb |
| The signal Output | 4 ~ 20mA/HART(2 wire/4wire),RS485/Modbus is optional |
Product3 Parameters
| Suitable for Medium | Powder, granule, bulk solid |
| Application | Lime powder, cement, coal ash, coal and ore etc. in silo |
| Measuring Range | 35m for powder, 45m for granule and block |
| Process Connection | Flange, Min. flange is DN100 |
| Medium Temperature | -40 ~ 250 ℃ |
| Process Pressure | -0.1 ~ 0.1MPa |
| Accuracy | ±20~50mm |
| Protection Grade | IP67 |
| Frequency Range | 26GHz |
| Explosion-proof Grade | Exia IICT6 Gb |
| The signal Output | 4 ~ 20mA/HART(2 wire/4wire),RS485/Modbus is optional |
Product4 Parameters
| Suitable for Medium | Powder, granule, bulk solid |
| Application | Lime powder, cement, coal ash, coal and ore etc. in silo |
| Measuring Range | 50m for powder, 70m for granule and block |
| Process Connection | Flange, Min. flange is DN250 |
| Medium Temperature | -40 ~ 250 ℃ |
| Process Pressure | -0.1 ~ 0.1MPa |
| Accuracy | ±20~50mm |
| Protection Grade | IP67 |
| Frequency Range | 26GHz |
| Explosion-proof Grade | Exia IICT6 Gb |
| The signal Output | 4 ~ 20mA/HART(2 wire/4wire),RS485/Modbus is optional |
Product5 Parameters
| Suitable for Medium | Powder, granule, bulk solid |
| Application | Lime powder, cement, coal ash, coal and ore etc. in silo |
| Measuring Range | 15m for powder, 20m for granule and block |
| Process Connection | Flange, Min. flange is DN100 |
| Medium Temperature | -40 ~ 250 ℃ |
| Process Pressure | -0.1 ~ 0.1MPa |
| Accuracy | ±20~50mm |
| Protection Grade | IP67 |
| Frequency Range | 26GHz |
| Explosion-proof Grade | Exia IICT6 Gb |
| The signal Output | 4 ~ 20mA/HART(2 wire/4wire),RS485/Modbus is optional |
Product6 Parameters
| Suitable for Medium | Liquid without pressure |
| Application | Pharmaceutical plants, food factories have sanitary requirements for the tank and process tank |
| Measuring Range | 20m |
| Process Connection | Flange, Min. flange is DN100 |
| Medium Temperature | -40 ~ 150 ℃ |
| Process Pressure | -0.1 ~ 0.1MPa |
| Accuracy | ±3~10mm |
| Protection Grade | IP67 |
| Frequency Range | 26GHz |
| Explosion-proof Grade | Exia IICT6 Gb |
| The signal Output | 4 ~ 20mA/HART(2 wire/4wire),RS485/Modbus is optional |
