Place of Origin:
china
Nama merek:
kacise
Sertifikasi:
iso9001
Model Number:
KUS550

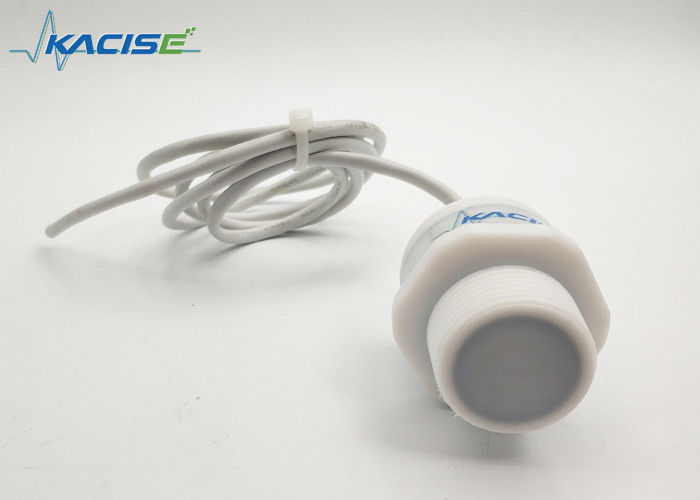

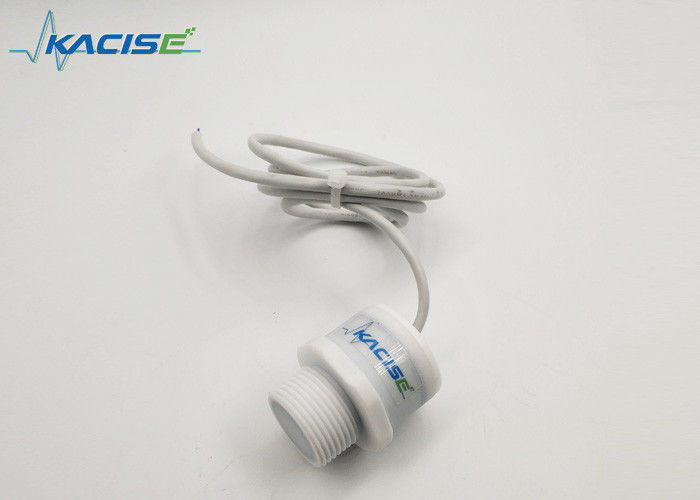

Low-power battery-powered wireles Fluid Level Meter Ultrasonic Level Transmitter
1.Product Description
This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,
designed to meet IP65.
2. Product features:
3. Parameter
| General Parameters | Mechanical Parameter | ||
| Detection Range | 200mm-3000mm | Connection | 5 Pin Cable |
| Transducer Frequency | 125KHz | Weight | 100g |
| Repeatability Precision | ≤1% | IP Grade | IP65 |
| Response Time | <50ms | ||
| Beam Angle | 7° ± 2 | ||
| Temp. Compensation | Inside/outside/fix temp. | ||
| Electrical Parameters | |||
| Operating Voltage | 24VDC | ||
| Limit Working Voltage | 13VDC-30VDC | ||
| Power Consumption | ≤30mA | ||
| Circuit Protection | short-circuit protection, overload protection | ||
| Output | Digital Output | RS485 | |
| Anaolue Output | 0-5V | ||
| Switch Output | 0V /5V | ||
| Ambient Environment | |||
| Operating Ambient Temp. | 0-70°C (-40-85°C, -55-125°C, etc, customizable ) | ||
| Storage Temperature | -40-125°C | ||
4.Dimensions
5.Wiring
6.Application
