Place of Origin:
China
Nama merek:
Kacise
Sertifikasi:
CE
Model Number:
LC-M2

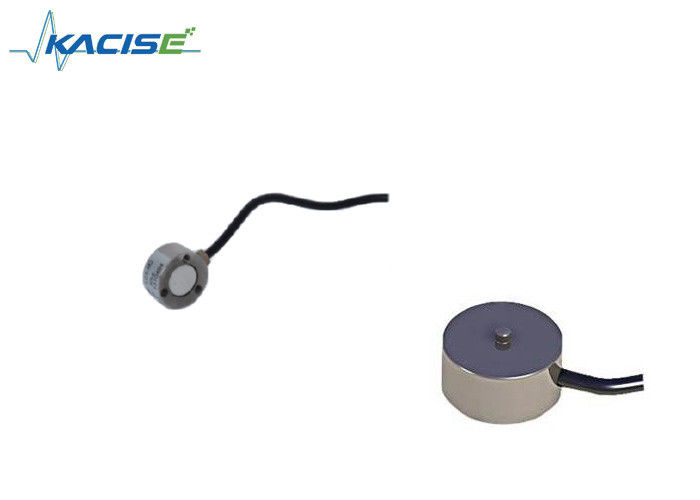

LC-M2 Load cell/Weighing sensor
Feature
Strong sealing and easy to install
Small in size, low density and stable performance
Optional measurement range:0.1kN-20kN (approximate 10kg- 2t)
Mainly used in lab testing facilities, industrial measurement units,
construction machinery and so on
Dimension
| Rated Load(kN) Dimension(Unit: mm, Error: ±1mm) | ||||||||
| ΦA | ΦC | ΦD | H | E | M | H1 | SR | |
| 0.1~2 | 20 | 2.5 | 15.5 | 12 | 10 | M3 | 3.5 | 6 |
| 3~10 | 26 | 5 | 18.5 | 15 | 11.5 | M4 | 3.5 | 6 |
| 20 | 30 | 6 | 20 | 18 | 14 | M4 | 3.5 | 15 |
Specification
| Description | |
| Material | Stainless Steel |
| Rated Load(kg) | 0.1/0.2/0.3/0.5/1/2/3/8/10/20kg |
| Performance | |
| Overall Precision | 0.5(linearity + hysteresis + repeatability) |
| Sensitivity | 1.0~1.5mV/V |
| Excitation voltage | 5~12V DC (Recommend 10V) |
| Creep(30 min) | ±0.03%F.S/30min |
| Zero balance | ±1.0%FS |
| Input Resistance | 350±20Ω |
| Output Resistance | 350±3Ω |
| Insulation Resistance | ≥5000MΩ |
| Working Environment | |
| Safety overload | 150%F.S |
| Ultimate overload | 200%F.S |
| Zero Drift | ±0.05%F.S/10°C |
| Output Drift | ±0.05%F.S/10°C |
| Protection Class |
IP65 |
Installation and Wiring Diagram
