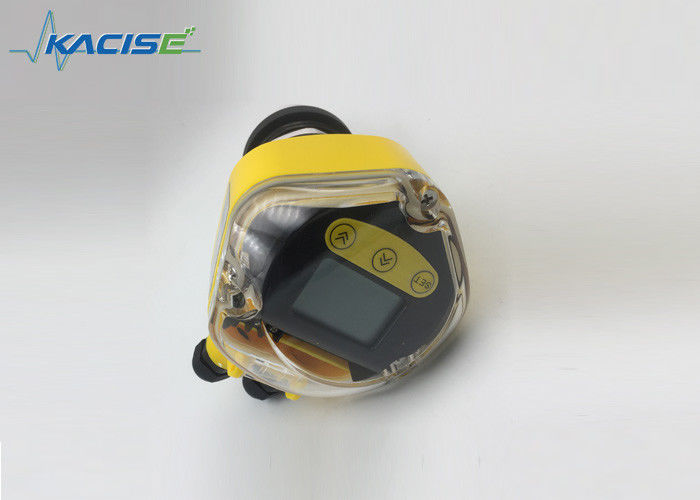

Reliable Ultrasonic Water Meter Distance Measurement With LED Display

Rincian produk

Product type:

integrated

Power Supply:

24 VDC Optional: 220V AC+15% 50Hz

Display:

English Led Display

Cable Probe:

Digital Output:

RS485

Resolution:

3mm or 0.1%

Product Name:

KUM-A Digital Integrated High Performation Ultrasonic Level Meter Non-Contact Level Sensor Level Mesurement Used in Water Treatment

Apply:

Water

Menyoroti:

ultrasonic water flow meter

ultrasonic btu meter

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

1PCS

Harga

USD157 to USD610 per pc

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Produk terkait

Video

KDI Series Display Controller Mendukung Komunikasi Multi - Machine

Dapatkan Harga Terbaik

Video

KDI Series Display Controller dengan Open Internal Parameter Setting Interface Keakuratan Tinggi dan Resolusi 0,1

Dapatkan Harga Terbaik

Video

Kontroler Tampilan Pengukuran Seri KDI yang akurat dengan Multiple Index Input Switching dan Kompensasi Suhu

Dapatkan Harga Terbaik

Video

KDI Series Light Column Display Controller Dengan Pengukuran Digital Dan Analog

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

KUM-A Digital Integrated High Performation Ultrasonic Level Meter Non-Contact Level Sensor Level Mesurement Used in Water Treatment

KUM-A ultrasonic level meter is a non-contact and cost-effective level meter with high reliability, high accuracy and easy installation. It does not have to contact the medium and can meet the measuring requirements of most applications.

Technical Features

Non-contact, can be used in various applications;
Various types of probes are available to meet the requirements of various applications.
High accuracy: 0.5%, 1%
English LED Display

Structure

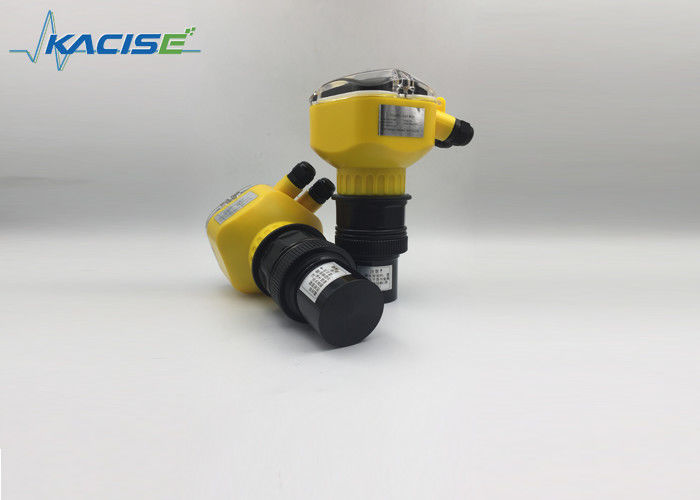

Reliable Ultrasonic Water Meter Distance Measurement With LED Display 0

Technical Specifications

Specs	Value
Pressure Voltage	5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m
Accuracy	0.5%, 1.0%
Display	LCD
Ambient Temperature	Display instrument-20～+60℃ transducer-20～+80℃
Medium	liquid and solid
Analog Output	4-20mA
Digital Output	RS485, RS232 (both are optional)
Power Supply	24Vdc
Protection Grade	Display instrument IP65,transducer IP68
Probe Type	PVDF, aluminum alloy, ABS, stainless steel 316L, teflon, titanium alloy

Model Selection

KUM-A
	Measurement Range
	A	5m
	B	10m
	C	15m
	D	20m
	E	30m
	F	40m
	G	50m
	H	60m
		Output Signal
		A	4-20mA
			Accuracy
			0.5	0.5%
			1.0	1%
				Power Supply
				A	24Vdc
				B	11~30Vdc
					Probe Type
					A	PVDF
					B	Aluminum alloy
					C	ABS
					D	Stainless steel 316L
					E	Teflon
					F	Titanium alloy

Applications and Installations

Distance measurement
Depth measurement

Reliable Ultrasonic Water Meter Distance Measurement With LED Display 1
