Accuracy 0.5% KCF100 Series Liquid Level Transmitter Temperature Adjustable 4-20mA

Rincian produk

Level range:

0~150mm

Accuracy:

0.5%, 1%

Output:

4-20mA

Medium:

Liquid, Solid

Menyoroti:

ultrasonic level transmitter

ultrasonic liquid level sensor

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

1PCS

Harga

dapat dinegosiasikan

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal

Supply Ability

1000 Piece/Pieces per Week negotiable

Produk terkait

Video

KDI Series Display Controller Mendukung Komunikasi Multi - Machine

Dapatkan Harga Terbaik

Video

KDI Series Display Controller dengan Open Internal Parameter Setting Interface Keakuratan Tinggi dan Resolusi 0,1

Dapatkan Harga Terbaik

Video

Kontroler Tampilan Pengukuran Seri KDI yang akurat dengan Multiple Index Input Switching dan Kompensasi Suhu

Dapatkan Harga Terbaik

Video

KDI Series Light Column Display Controller Dengan Pengukuran Digital Dan Analog

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

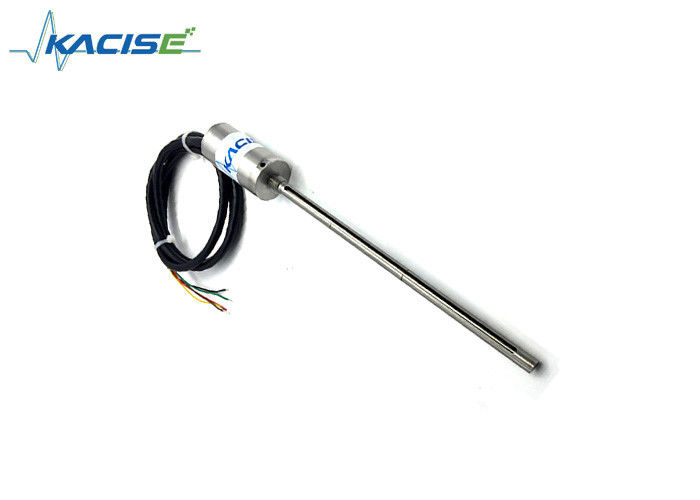

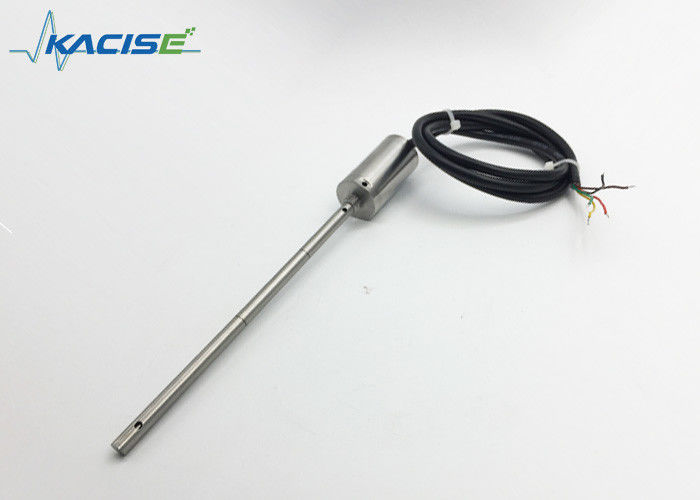

KCF100 Series Temperature And Level Transmitter

1. Technical Features

Range 0~150mm
Short circuit protection and reverse polarity protection
High precision, high stability, high reliability
Temperature, liquid level double output
Protection class IP68

2. Introduction

KCF100 series temperature and pressure integrated liquid level transmitter is an adjustable capacitance type liquid level transmitter developed by our company for high precision and high stability measurement of oil level and water level. It has short-circuit protection and certain over-voltage surge protection capability, and has the characteristics of fast response, wide voltage supply, strong load capacity and wide temperature measurement range. It supports two calibratable analog outputs, ModBus RTU communication protocol and fast forced zero function, the overall performance is stable and reliable.

3. Electronic interface and signals definition

Color	Definition
Red	+V
Black	GND
Brown	Level output 4-20mA
White	Temperature output 4-20mA
Green	RS485-A
Yellow	RS485-B

4. Parameter

Accuracy 0.5% KCF100 Series Liquid Level Transmitter Temperature Adjustable 4-20mA 0

4.Parameter

Spec.	Numerical value
Level range	0~150mm
Temperature range	-30~100℃
Accuracy	Typical error of level 0.35% Temperature error ±2.5 °C
Response time	Level measurement is typically less than 1 seconds Temperature measurement is typically less than 3 seconds.
Load resistance	≤300Ω
Working current	< 60mA (when two 4-20mA output same time)
Operating temperature	-30°C~80°C
Compensation temperature	-10°C~80°C
Storage temperature	-40°C~125°C
Medium compatibility	All Caustic Medium Compatible with 316L
Output signal	4~20mA / RS485-Modbus
Power supplies	9~24Vdc
Connection	M10.00*1mm male thread
Cable	Polyethylene cable
IP Grade	IP68

5. Model Selection

KUM-B
	Measurement Range
	A	5m
	B	10m
	C	15m
	D	20m
	E	30m
	F	40m
	G	50m
	H	60m
		Output Signal
		A	4-20mA
			Accuracy
			0.5	0.5%
			1.0	1%
				Power Supply
				A	24Vdc
				B	11~30Vdc
					Probe Type
					A	PVDF
					B	Aluminum alloy
					C	ABS
					D	Stainless steel 316L
					E	Teflon
					F	Titanium alloy

6. Applications and Installations:

Petroleum, chemical, electric power
Equipment supporting, hydraulic and other industries

7.Company Information

Name: Accuracy 0.5% KCF100 Series Liquid Level Transmitter Temperature Adjustable 4-20mA
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KCF100
Price: 1,000.00 USD
Availability: InStock

Accuracy 0.5% KCF100 Series Liquid Level Transmitter Temperature Adjustable 4-20mA 1
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

Accuracy 0.5% KCF100 Series Liquid Level Transmitter Temperature Adjustable 4-20mA 2

Accuracy 0.5% KCF100 Series Liquid Level Transmitter Temperature Adjustable 4-20mA 3
