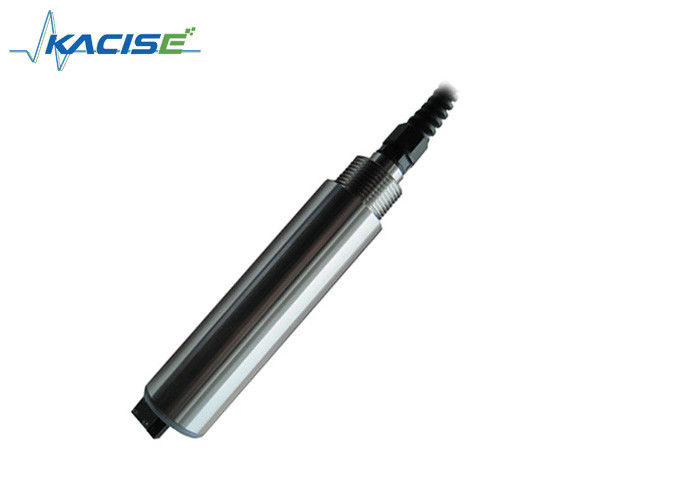

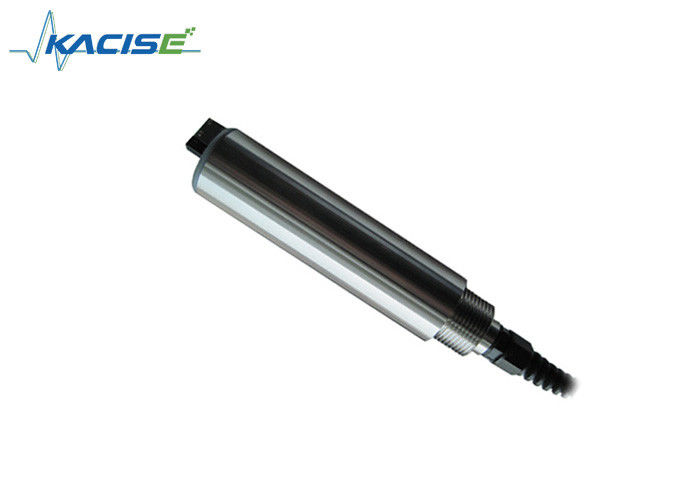

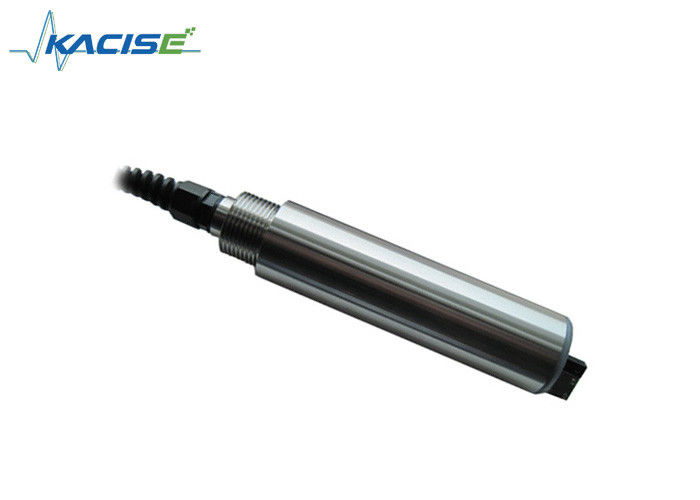

Digital Sensor Fiber Optic Chlorophyll Sensor Kws-400 RS-485 Output

Digital Sensor Fiber Optic Chlorophyll Sensor Kws-400 RS-485 Output

water turbidity sensor

oil in water sensor

Place of Origin:

china

Nama merek:

Kacise

Sertifikasi:

ce

Model Number:

Kws-400

Hubungi Kami
Minta Kutipan
Rincian produk
Measuring range:
0~400ug/L
Resolution:
0.1 µg/L
accurate:
1%
Output:
Support RS-485, MODBUS protocol
Power supply:
DC 5~12V, current <50mA
Probe cable length:
10 m, customizable 5 m, 15 m and 30 m cable
Cahaya Tinggi:

water turbidity sensor

,

oil in water sensor

Syarat Pembayaran & Pengiriman
Minimum Order Quantity
0-100
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100
Deskripsi Produk

Online Fiber optic chlorophyll sensor



1. Applications



Chlorophyll and its metallic form are essential organic compounds located in chloroplasts, playing a critical role in capturing light energy and facilitating vital biological processes. Given their promising applications, the electrochemical properties of chlorophyll and metallic chlorophyll have garnered significant attention and research focus.



The fiber chlorophyll sensor operates based on the fluorescence principle. It employs a high-energy LED light source to illuminate water, taking into account the spectral absorption characteristics of chlorophyll a. This illumination stimulates chlorophyll a in the water to emit fluorescence at a specific wavelength, enabling the measurement of chlorophyll a concentration. The sensor's fiber structure exhibits outstanding repeatability and stability, remaining resilient against ambient light interference. Additionally, the integration of an automatic cleaning brush helps eliminate air bubbles, minimizing the impact of contamination on measurements. This design facilitates prolonged online use, extends maintenance intervals, and enhances overall measurement stability.



2. Introduction



The Kacise chlorophyll sensor, developed with advanced fluorescent sensing technology, stands out with its superior features, including high sensitivity, high linearity, and low noise in comparison to similar international products. Notably, the KWS-400B online self-cleaning chlorophyll sensor is uniquely equipped with an automatic cleaning brush, streamlining its design for increased efficiency.



The integrated structure of the sensor, combined with efficient power management, ensures stable data performance. This design eliminates the need for frequent maintenance and calibration, enabling long-term online use. The Kacise chlorophyll sensor is versatile, finding applications in monitoring, investigating, and researching algae and phytoplankton in various environments, including rivers, lakes, ponds, marine surveys, aquaculture, and drinking water sources.

Digital Sensor Fiber Optic Chlorophyll Sensor Kws-400 RS-485 Output 0

3. Feature



Digital sensor, RS-485 output, support MODBUS

With automatic cleaning brush to prevent contamination and eliminate air bubbles

Direct measurement is easier than traditional analysis methods

Continuous online monitoring and real-time control of water quality



Digital Sensor Fiber Optic Chlorophyll Sensor Kws-400 RS-485 Output 1

Integrated sensor field application example



4.Technical Specifications



Item Fiber Chlorophyll Sensor Self-Cleaning Chlorophyll Sensor
Model KWS-400A KWS-400B
Principle fluorescence principle
Measuring Range 0~400ug/L or 0~100RFU
Resolution 0.01 µg/L
Protection Rate IP68
Max. pressure 6 bar 3 bar
Temperature Range 0 ~ 50℃
Output Support RS-485, MODBUS protocol
Power Supply DC 9~24V, 1A
Working current <50mA (when not brush); <200mA (when brush)
Installation Input type, circulation type Input type
Size Φ22mm*175.5mm Φ36mm*198.2mm
Cable Length 10 m, customizable
Self-Cleaning System NO Yes
Calibration 0-point, one-point or two-point calibration
Casing Material Stainless or Titanium



                   KWS-400A                                      KWS-400B

Digital Sensor Fiber Optic Chlorophyll Sensor Kws-400 RS-485 Output 2Digital Sensor Fiber Optic Chlorophyll Sensor Kws-400 RS-485 Output 3
