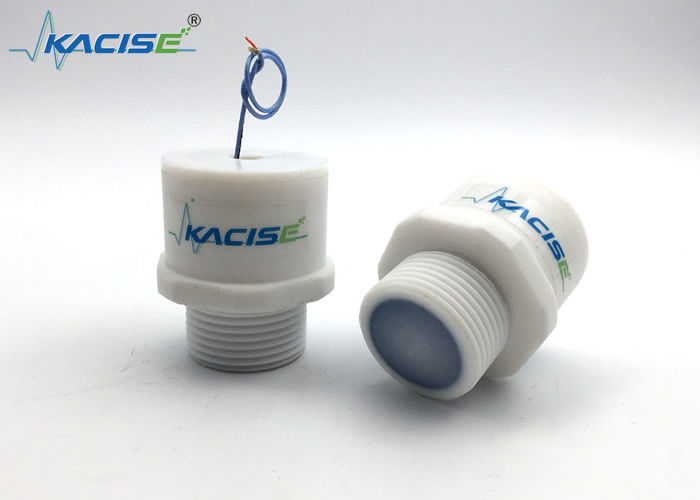

Name: Food Grade PTFE Ultrasonic Fluid Level Meter 1"NPT Chemical Resistance
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS550
Price: 1,000.00 USD
Availability: InStock

Rumah > Produk > Fluid Level Meter >

Food Grade PTFE Ultrasonic Fluid Level Meter 1"NPT Chemical Resistance

ultrasonic fluid level sensor

ultrasonic level transmitter

Place of Origin:

CHINA

Nama merek:

KACISE

Sertifikasi:

Model Number:

KUS550

Hubungi Kami

Minta Kutipan

Food Grade PTFE Ultrasonic Fluid Level Meter 1

Rincian produk

Material:

PTFE

Thread:

1" NPT

IP grade:

IP67

Menyoroti:

ultrasonic fluid level sensor

ultrasonic level transmitter

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

1PCS

Harga

dapat dinegosiasikan

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Produk terkait

Video

KDI Series Display Controller Mendukung Komunikasi Multi - Machine

Dapatkan Harga Terbaik

Video

KDI Series Display Controller dengan Open Internal Parameter Setting Interface Keakuratan Tinggi dan Resolusi 0,1

Dapatkan Harga Terbaik

Video

Kontroler Tampilan Pengukuran Seri KDI yang akurat dengan Multiple Index Input Switching dan Kompensasi Suhu

Dapatkan Harga Terbaik

Video

KDI Series Light Column Display Controller Dengan Pengukuran Digital Dan Analog

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

1"NPT Food Grade Chemical Resistance Whole Body PTFE Anti Corrosion Ultrasonic Level Sensor

Introduction

This sensor provides very short to long-range detection and ranging, in a compact, robust PVC/PTFE housing, designed to meet IP67.

Features

. IP67 Designed for outdoor or indoor environments

. High sensitivity

. Free run operation can continually measure and output ranger information

. Sensor beam angle is 10 degrees (full angle)

. Chemical Resistance Whole Body PTFE

. Anti Corrosion

. Suitable for Sanitary and Hygienic application

Applications

. Tank level measurement

. Bin level measurement

. Proximity zone detection

. People detection

. Robot ranging sensor

. Autonomous navigation

. Multi-sensors navigation

. Distance measuring

. Food level detection

. Industrial automation

Parameters

General Parameters		Mechanical Properties
Detection Range	200mm~3000mm	Connection	5 pin cable
Transducer Frequency	70KHZ	Weight	100g
Repeatability Precision	≤1%	IP grade	IP67
Response Time	<50ms
Beam Angle	7°±2
Temp. Compensation	inside/outside/fix temp.
Electrical Parameters
Operating Voltage	14.5VDC~27VDC
Limit Working Voltage	13VDC~30VDC
Power Consumption	≤30mA
Circuit Protection	short-circuit protection, overload protection
Output	Digital Output	RS485
	Analogue Output	0~5V
	Switch Output	0V / 5V
Ambient Environment
Operating Ambient Temp.	0~70℃ (-40~85℃, -55~125℃, etc, customizable)
Storage Temperature	-55~125℃

Food Grade PTFE Ultrasonic Fluid Level Meter 1"NPT Chemical Resistance 0
