Place of Origin:
China
Nama merek:
Kacise
Sertifikasi:
CE
Model Number:
GXPS330
Application
Feature
Instruction

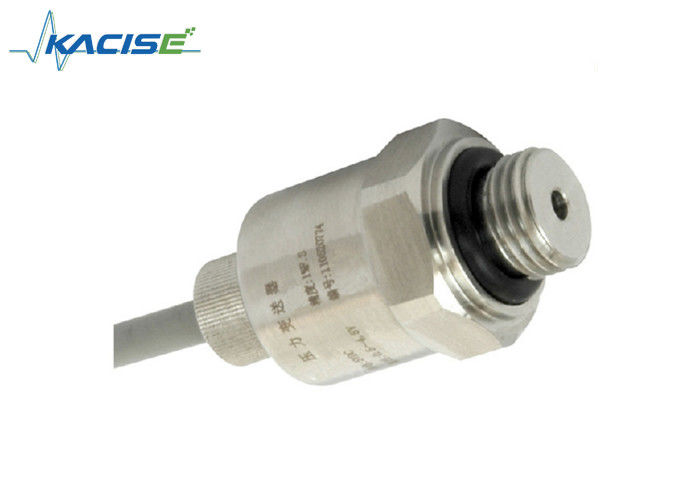

GXPS330 Series pressure transmitter is a highly reliable, high stability, high accuracy, and the whole temperature digital compensation product, which is specifically designed for automotive diesel fuel tank, the tank pressure measurement. The oil-filled core and shell are all stainless steel structure, using the latest digital compensation to ensure the accuracy. The oil-filled core and shell are all stainless steel structure, using the latest digital compensation to ensure the accuracy of the whole temperature region will not be reduced or lost, through a computer interface to calibrate the zero and full scale, can also program-controlled adjustment of the external zero and span.
Electronic interface and signals definition
Parameter
| Pressure range: | 0~20kpa…60Mpa 0~0.2bar…600bar2.9psi…8700psi |
| Overload pressure: 1.5 times nominal pressure(1.5X) | rupture pressure: 3 times nominal pressure(3X) |
| Accuracy: ±0.5%F.S | Stability: 0.25%F.S/Year |
| compensation temperature: -20°C~80°C | Working temperature: -40°C~80°C |
| Output signal: 4-20mA | power supply: 15VDC |
| Insulation: > 20MΩ @100V | Electrical Connections : connection terminal |
| Medium: diesel oil | Protection grade: IP67 |
| Pressure type: pressure gauge |
