Place of Origin:
China
Nama merek:
KACISE
Sertifikasi:
ISO / CE
Model Number:
KEF Series

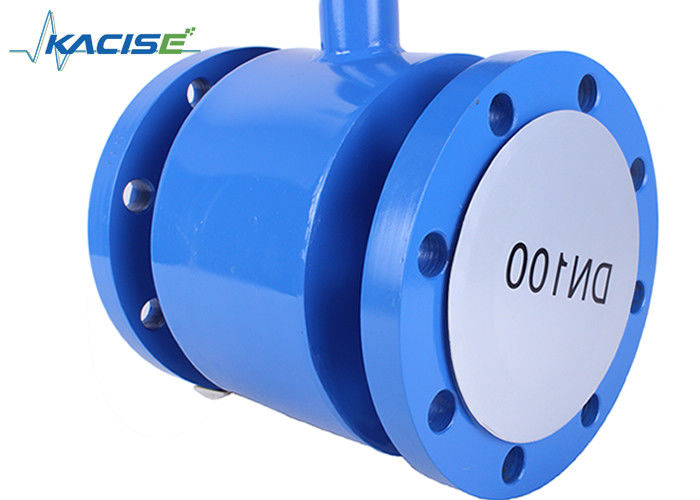

DN100 Resistant Strong Acid Electromagnetic Flow Meter / Caudalimetro / Magnetic Flow Meter For Chemical Products
Introduction
KEF series electromagnetic flowmeter is widely used in sewage treatment, chemical industry, metallurgical industry, pharmaceutical factory, water supply plant and other industrial departments. The flowmeter has 4~20mA output and RS485 communication. In addition to measuring general liquid, electromagnetic flowmeter can also measure the flow of certain types of solid, such as liquid-solid mixed fluid, high-viscosity fluid, acid-base salt.
Features
1. Simple structures, firm, no movable parts and long operation life.
2. No intercepting fluid parts, no pressure loss and fluid clogging.
3. No mechanical inertia, quick response and good stability, application in automatic examination, adjustment & controlling.
4. Measuring accuracy not influenced by physical parameters such as style, temperature, viscosity, density and pressure.
6. Supply many styles of flow meters such as inline type and insertion type, etc.Adopt EEPROM memory to measure operation data, safe and reliable protection of memory.
7. High pressure sensor with PFA liner is resistant to high pressure and negative pressure, and available to chemistry and corrosive solution.
8. It is applicable not only to general process, but also in tough applications such as mining, papermaking, pastry, etc.
Parameters
| Pipe diameter | DN6~DN2600 | |
| Accuracy | 0.3% (Option), 0.5%, 1.0% of F.S.. | |
| Repeatability | Below 0.25% | |
| Power | AC: 220V, 50-60Hz; DC: +24V(Option) | |
| Output Signals | 4~20mA, Pulse, 0~5V,0~10V | |
| Conduit connection | M20 * 1.5 Thread | |
| Communication Interface | RS-232; RS-485; HART | |
| Operation Pressure | 1.0MPa, 1.6MPa, 4.0MPa, 16MPa (Special) | |
| Fluid Temperature | -20°C~80°C, 80°C ~130°C, 130°C ~180°C Depending on Lining Material | |
| Ambient Temperature | Sensor -40°C ~80°C. transducer -15°C ~50°C | |
| Ambient Humidity | ≤ 85%RH (at 20C) | |
| Cable Outlet Size | M20×1.5 | |
| Power Supply | 220VAC±10%, 50-60Hz±1Hz, 24VDC±10%, Battery power (3-5years) | |
| Power Consumption | ≤ 15W | |
| Protection Ratings | Remote type: sensor IP68, transducer IP65. | |
| Materials | Electrode | 316L (stainless steel), Hastelloy C, Hastelloy B,Titanium, Tantalum, etc. |
| Liner | PTFE, Soft rubb er, Hard rubber, F46, FS, PUR. | |
| Measuring tube | SS 304, carbon steel | |
| Flange | Carbon Steal, SS304 | |
| Ground ring | 316L (stainless steel), HC, Ti, Ta, Cu. | |
| Connection of Flange |
National Standard GB9119-88 (DIN2051, BS4504), JIS,ANSI. Screw. Tri-clamp for sanitary application Insertion type. |
|
| EX-proof protection | Exde ib ii BT2 | |
| Quality control |
ISO9001-2008, CE |
|
Model selection
