Proline t-mass I 500 thermal mass flowmeter

Rincian produk

Keluaran:

4-20 mA HART (aktif/pasif)

Input:

Masukan status

Komunikasi digital:

HART, MODBUS RS485

Persetujuan Area Berbahaya:

ATEX, cCSAus, IECEx, NEPSI, JPN, UK Ex, EAC, KC

Keamanan Produk:

CE, C-Tick

Menyoroti:

Proline t-mass thermal flowmeter

thermal mass flowmeter with warranty

electromagnetic flow meter for liquids

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 HARI KERJA

Syarat-syarat pembayaran

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Menyediakan kemampuan

1000 Potongan/potongan per Minggu ne

Produk terkait

Proline Promass S 300 Coriolis flowmeter

Dapatkan Harga Terbaik

Proline Promass P 500 Coriolis flowmeter

Dapatkan Harga Terbaik

Proline Promass Q 300 Coriolis flowmeter

Dapatkan Harga Terbaik

Proline t-mass F 500 thermal mass flowmeter

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

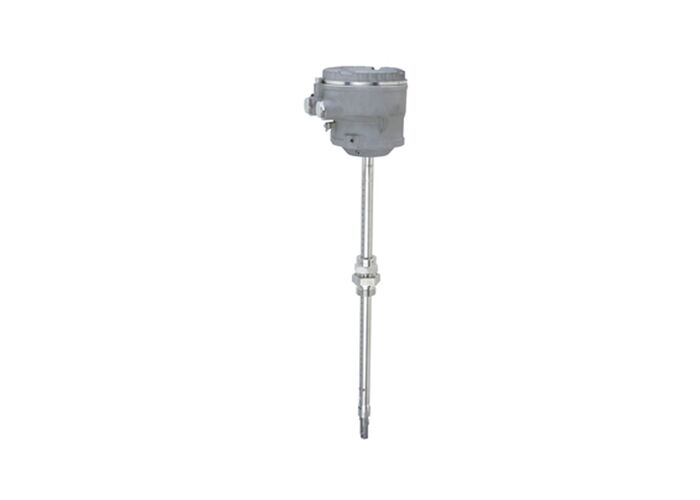

Proline t-mass I 500 Thermal Mass Flowmeter

Advanced insertion flowmeter with exceptional long-term stability, featuring remote transmitter configuration with up to 4 I/Os. Designed for precise measurement of utility and process gases in circular piping or rectangular ducts.

Key Specifications

Measurement Error	Gas: 1.0% o.r. (10 to 100% o.f.s.), 0.1% o.f.s. (1 to 10% o.f.s.)
Measuring Range	20 to 733,501 kg/h (44 to 1,669,340 lb/h)
Temperature Range	-40 °C to +180°C (-40 °F to +356°F)
Process Pressure	-0.5 to 20 bar_g (-7.25 to 290 psi_g)
Nominal Diameter	DN 80 to 1500 (3" to 60")

Field of Application

The patented sensor design provides unprecedented measurement stability in thermal insertion mass flow measurement, compensating in real time for changes in process conditions including temperature, pressure, flow direction, and gas type.

Measurement Principle

Thermal mass flow measurement characterized by high operable flow range and direct mass flow measurement without additional pressure and temperature compensation.

Key Benefits

Flexible programming based on 21 standard gases or custom gas mixtures
Premium measurement accuracy and repeatability for superior process control
Reliable monitoring with detection of process disturbances and reverse flow
Flexible installation for large dimensional range in circular pipes or rectangular ducts
Comprehensive process and diagnostic information access
Integrated verification through Heartbeat Technology

Wetted Materials

Insertion Tube: Stainless steel, 1.4404 (316/316L)

Process Connections: Stainless steel, 1.4404 (316/316L)

Sensing Element (Unidirectional): Stainless steel, 1.4404 (316/316L), Alloy C22, 2.4602 (UNS N06022)

Sensing Element (Bidirectional): Stainless steel, 1.4404 (316/316L)

Clamping Rings: PEEK, PVDF, 1.4404 (316/316L)

Flat Ring Seal: EPDM, FKM

Technical Features

Sensor Features

Bidirectional measurement with high performance
Patented drift-free sensor design with SIL 2 certification
Reverse flow detection capability

Transmitter Features

Remote version with up to 4 I/Os
Backlit display with touch control and WLAN access
Standard cable between sensor and transmitter
Freely configurable I/O functionality

Measured Variables

Mass flow, temperature, standard volume flow, volume flow, free air delivery, velocity, heat flow, energy flow, density

Environmental Specifications

Ambient Temperature	-40 to 60°C (-40 to 140°F) Optional: Transmitter: -50 to 60°C (-50 to 140°F), Sensor: -60 to 60°C (-60 to 140°F)
Degree of Protection	IP66/67, Type 4X enclosure Sensor: IP68, Type 6P (optional)

Electrical Specifications

Outputs	4-20 mA HART (active/passive), 4-20 mA (active/passive), Pulse/frequency/switch output (active/passive), Relay output
Inputs	Status input, 4-20 mA input
Digital Communication	HART, Modbus RS485
Power Supply	DC 24V, AC 100 to 240V

Certifications & Approvals

Hazardous Area	ATEX, cCSAus, IECEx, NEPSI, JPN, UK Ex, EAC, KC
Product Safety	CE, C-tick
Functional Safety	IEC 61508, applicable in safety-relevant applications per IEC 61511
Metrological	ISO/IEC 17025 calibration, Heartbeat Technology compliant with ISO 9001:2015
Pressure	CRN
Material	3.1 material, NACE MR0175/MR0103
