Proline Promass F 300 Coriolis flowmeter

Proline Promass F 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Tempat asal:

Swiss

Nama merek:

Endress+Hauser

Sertifikasi:

Hubungi Kami

Minta Kutipan

Proline Promass F 300 Coriolis flowmeter

Rincian produk

Input:

Masukan status masukan 4-20 mA

Catu Daya:

DC 24 VAC 100 hingga 230 VAC 100 hingga 230 V / DC 24 V (area tidak berbahaya)

Persetujuan Area Berbahaya:

ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex, KC

Keamanan Produk:

CE, C-Tick, EAC Marking

Menyoroti:

Proline Promass F 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 HARI KERJA

Syarat-syarat pembayaran

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

Proline Promass S 300 Coriolis flowmeter

Dapatkan Harga Terbaik

Proline Promass P 500 Coriolis flowmeter

Dapatkan Harga Terbaik

Proline Promass Q 300 Coriolis flowmeter

Dapatkan Harga Terbaik

Proline t-mass F 500 thermal mass flowmeter

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

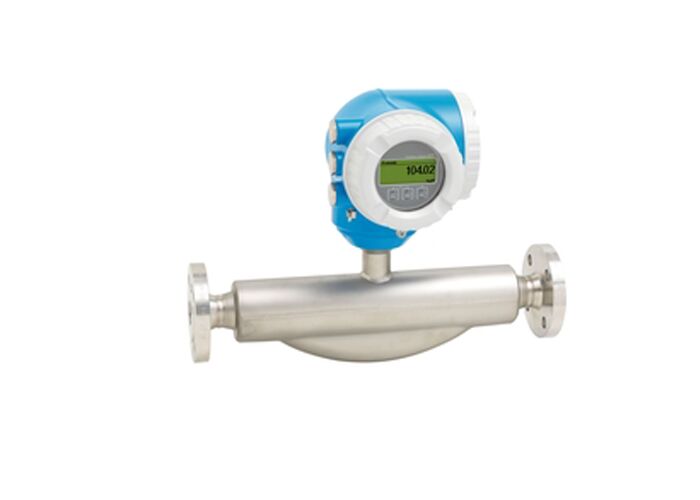

Proline Promass F 300 Coriolis Flowmeter

The Promass F 300 is a highly accurate Coriolis flowmeter designed for demanding industrial applications. With premium measurement performance for both liquids and gases, this compact device offers exceptional reliability in fluctuating and harsh environments.

Key Features

Highest measurement accuracy with ±0.05% mass flow error (PremiumCal option)
Multivariable measurement (flow, density, temperature)
Wide temperature range: -196 to +350 °C (-320 to +662 °F)
Compact design with no inlet/outlet run requirements
Heartbeat Technology for integrated verification and extended recalibration cycles
Backlit display with touch control and WLAN access

Technical Specifications

Measurement Performance

Mass Flow (Liquid) ±0.10% (standard), ±0.05% (option)

Volume Flow (Liquid) ±0.10%

Mass Flow (Gas) ±0.25%

Density (Liquid) ±0.0005 g/cm³

Operating Ranges

Measuring Range 0 to 2,200,000 kg/h (0 to 80,840 lb/min)

Nominal Diameter DN 8 to 250 (³⁄₈ to 10")

Max. Process Pressure PN 100, Class 600, 63K

Temperature Specifications

Medium Temperature (Standard) -50 to +150 °C (-58 to +302 °F)

Medium Temperature (Options) -50 to +240 °C, -50 to +350 °C, -196 to +150 °C

Ambient Temperature -40 to +60 °C (-40 to +140 °F)

Materials & Construction

Measuring Tube Materials

1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)

Connection Materials

1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022); 1.4301 (F304)

Sensor Housing

Standard: 1.4301 (304); Option: 1.4404 (316/316L)

Transmitter Housing

AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygienic design

Measured Variables

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

Approvals & Certifications

Hazardous Area

ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex, KC

Product Safety

CE, C-tick, EAC marking

Metrological

MI-005, NTEP, MC, MI-002, PTB, ISO/IEC 17025

Marine

LR, DNV, ABS, BV, CCS

Pressure

PED, CRN, AD 2000

Material

3.1 material, NACE MR0175/MR0103, PMI, EN ISO, ASME, NORSOK

Hygienic

3-A, EHEDG, cGMP
