Name: SC4AJ Conductivity Sensor with Cell Constants 0.02 cm-1 and 0.1 cm-1 for Temperature Range 0 to 110℃
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Sensor SC4AJ
Price: 5,000.00 USD
Availability: InStock

Rumah > Produk > Sensor Kualitas Air >

SC4AJ Conductivity Sensor with Cell Constants 0.02 cm-1 and 0.1 cm-1 for Temperature Range 0 to 110℃

Cell constant 0.02 cm-1 Conductivity Sensor

Cell constant 0.1 cm-1 SC4AJ

Temperature Range 0 to 110℃ Water Quality Sensor

Nama merek:

Yokogawa

Nomor model:

Sensor SC4AJ

Hubungi Kami

Minta Kutipan

SC4AJ Conductivity Sensor with Cell Constants 0.02 cm-1 and 0.1 cm-1 for Temperature Range 0 to 110℃

Rincian produk

Prinsip pengukuran:

Sistem dua elektroda

Konstan sel:

0,02 cm-1, 0,1cm-1

Kisaran suhu:

0 hingga 110 ℃ (untuk elektroda)

Sterilisasi untuk elektroda:

135 ℃ (275 ℉), dalam waktu 30 menit dalam sterilisasi uap

Rentang tekanan:

0 hingga 1 MPa (untuk elektroda)

Menyoroti:

Cell constant 0.02 cm-1 Conductivity Sensor

Cell constant 0.1 cm-1 SC4AJ

Temperature Range 0 to 110℃ Water Quality Sensor

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 pcs

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

MoneyGram, Western Union, T/T, D/P, D/A, L/C.

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Dapatkan Harga Terbaik

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Dapatkan Harga Terbaik

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Dapatkan Harga Terbaik

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

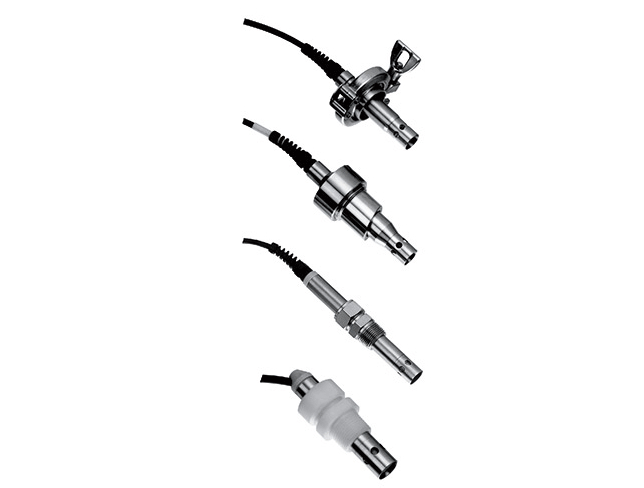

Conductivity Sensor SC4AJ

Yokogawa has been supplying superior on-line analyzers for monitoring or controlling the conductivity of liquid solutions. Our product line includes the FLXA402 four-wire conductivity/resistivity converter, along with the FLXA202 and FLXA21 two-wire conductivity/resistivity transmitters, complemented by a range of precision sensors for accurate liquid conductivity measurement.

The SC4AJ conductivity sensor features a compact, convenient design suitable for diverse applications including boiler water monitoring, hydroponics conductivity measurement, and ultrapure water resistivity measurement in semiconductor, pharmaceutical, food, and power industries.

Specifications

Measurement Object	Conductivity of liquids or solutions
Measuring Principle	Two-electrode system
Cell Constant	0.02 cm^-1, 0.1 cm^-1
Measuring Range	0 - 0.5 to 0 - 200 μS/cm (Cell constant: 0.02 cm^-1, with SC450G, SC202) 0 - 100 μS/cm to 0 - 1 mS/cm (Cell constant: 0.02 cm^-1, with SC100) 0 - 5 μS/cm to 0 - 1 mS/cm (Cell constant: 0.1 cm^-1, with SC450G, SC202) 0 - 500 μS/cm to 0 - 5 mS/cm (Cell constant: 0.1 cm^-1, with SC100; Material: Titanium)
Temperature Range	0 to 110℃ (For electrode)
Sterilization for Electrode	135℃ (275℉), within 30 minutes in Steam Sterilization
Pressure Range	0 to 1 MPa (For electrode)
Sample Solution Condition	Although flow rate is not limited in measurement, air bubbles should not be mixed in the sample solutions to obtain correct measured values.
Temperature Sensor	Pt1000
Weight	Sensors: Adapter mounting type (SC4AJ-S-AD-09-002-05): approx. 450 g Adapter mounting type (SC4AJ-S-AD-15-002-05): approx. 520 g Welding socket type (SC4AJ-S-SA-NN-002-05): approx. 670 g 5" welding clamp type (SC4AJ-S-SB-NN-002-05): approx. 550 g 2" welding clamp type (SC4AJ-S-SC-NN-002-05): approx. 670 g Adapters: 3/4" stainless steel adapter (/PS): approx. 110 g 3/4" PVDF adapter (/PF): approx. 35 g Straight welding socket (/SA1): approx. 300 g Angle welding socket 15 (/SA2): approx. 320 g Welding clamp 1" (/SB1): approx. 330 g Welding clamp 1.5" (/SB2): approx. 305 g Welding clamp 2" (/SC1): approx. 350 g
Process Connection	Adapter mounting, welding socket, welding clamp
