Name: KAW100 All - in - One Precise Measurement Automotive Pressure Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Kaw100
Price: 152.00 USD
Availability: InStock

Rumah > Produk > Sensor tekanan presisi >

KAW100 All - in - One Precise Measurement Automotive Pressure Sensor

Sensor Tekanan Otomotif Pengukuran yang Tepat

Semua dalam Satu Sensor Tekanan Otomotif

Sensor tekanan otomotif

Tempat asal:

Cina

Nama merek:

KACISE

Sertifikasi:

Nomor model:

Kaw100

Hubungi Kami

Minta Kutipan

KAW100 All - in - One Precise Measurement Automotive Pressure Sensor

Rincian produk

Supply current:

15mA MAX

Rentang Tekanan:

0 ~ 5bar 、 0 ~ 10bar 、 0 ~ 20bar 、 0 ~ 40bar 、 (cutomized)

Power Supply:

4.75~5.25VDC(( With reverse polarity protecticion overvoltage protection 32V DC

Output:

0.5V ~ 4.5V DC, (10%-90%VCC)

Process Connection:

G1/4，7/16-UNFfemale,(cusomized)

Konektor listrik:

Mengemas

Menyoroti:

Sensor Tekanan Otomotif Pengukuran yang Tepat

Semua dalam Satu Sensor Tekanan Otomotif

Sensor tekanan otomotif

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Produk terkait

Bagian Otomotif Sensor Tekanan AC Otomotif

Dapatkan Harga Terbaik

4-20mA Output Grade Makanan Sanitasi Flush Diaphragm Hygienic Industrial Pressure Transmitter

Dapatkan Harga Terbaik

Low Cost 0,5-4,5V Kuningan Sensor Tekanan Air Untuk Gas Udara Industri

Dapatkan Harga Terbaik

4-20mA HART Output Smart Double Flange Differential Level Pressure Transmitter untuk Industri

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

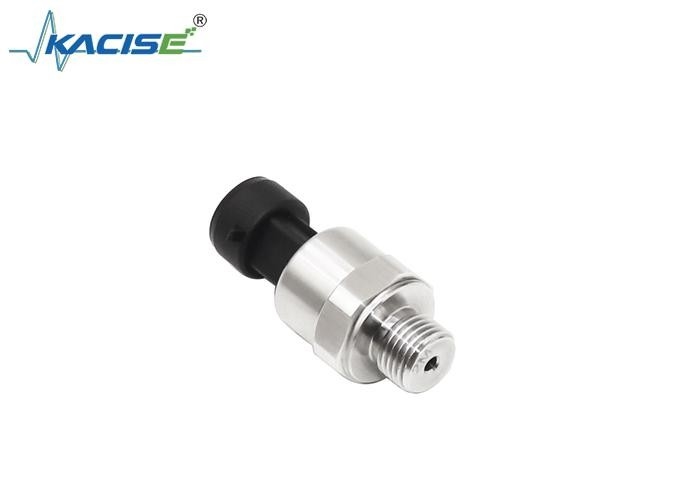

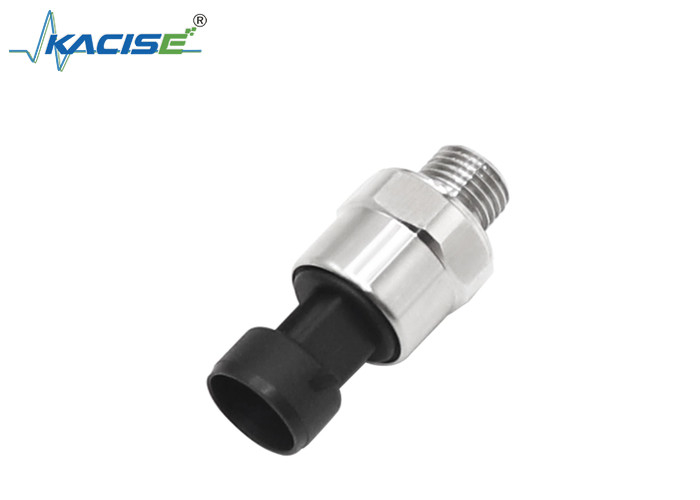

KAW100 All - in - One Precise Measurement Automotive Pressure Sensor

Introduction

The KAW100 All - in - One Precise Measurement Automotive Pressure Sensor is specifically designed for a wide range of automotive applications, including vehicles, transmissions, air - conditioning systems, and oil pressure measurements.

Product Applications

This sensor features a fully welded 316L diaphragm and is filled with diffusible silicon oil. It doesn't require any O - ring seals that could contact the pressure medium, making it compatible with all types of liquids. The absence of moving parts ensures a longer service life.

It offers multiple process connection options, facilitating easy installation. With a typical accuracy of 1%, it provides excellent precision for critical applications. Factory - calibrated, there's no need for on - site calibration. It has plug - and - play reliability, and its rugged and compact design saves installation space. Additionally, OEM/ODM services are available to meet special requirements.

Product Description

Model	KAW100
Power Supply	4.75~5.25VDC(( With reverse polarity protecticion overvoltage protection 32V DC
Supply current	15mA MAX
Pressure range	0~5Bar,0~10Bar,0~20Bar,0~40Bar,(Cutomized)
Output	0.5V~4.5V DC,(10%-90%VCC)
Process Connection	G1/4,7/16-UNFfemale,(cusomized)
Electrical connector	Pack
Working Temperature	-40℃C~130℃℃
Storage Temperature	-50℃~135C
Safe Pressure	1.5~2 time of the pressure range
Burst Pressyre	100Bar G
Accuracy	+1%F.S( Linearity,Hysteresis, Repeatability, Calibration)
Total Error Band	Static error band @25℃,5VDC,+3%(-30℃~125°℃)
Meadium	Engine oil, POE oil, refrigerant, gas, water or liquid
Material	Housing 304 SST; wetted parts 316L
Mounting Torque	10~20N·m
Anti-freeze function	The sensor has no anti-freezing function when the sensor's working medium is water.
