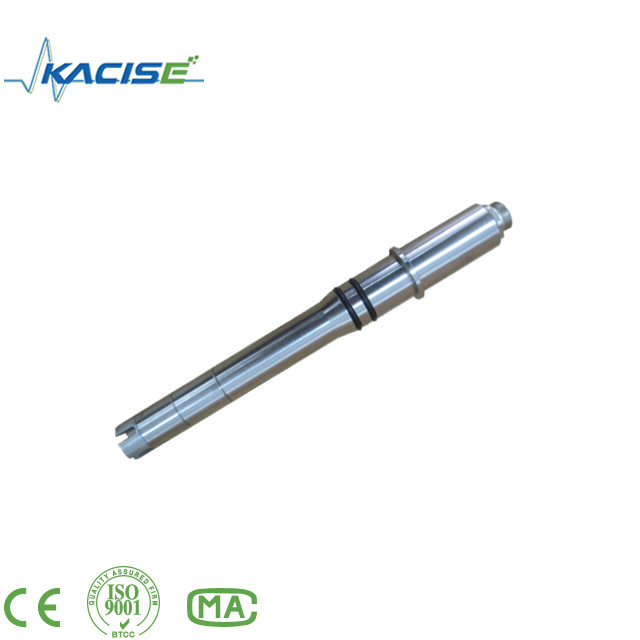

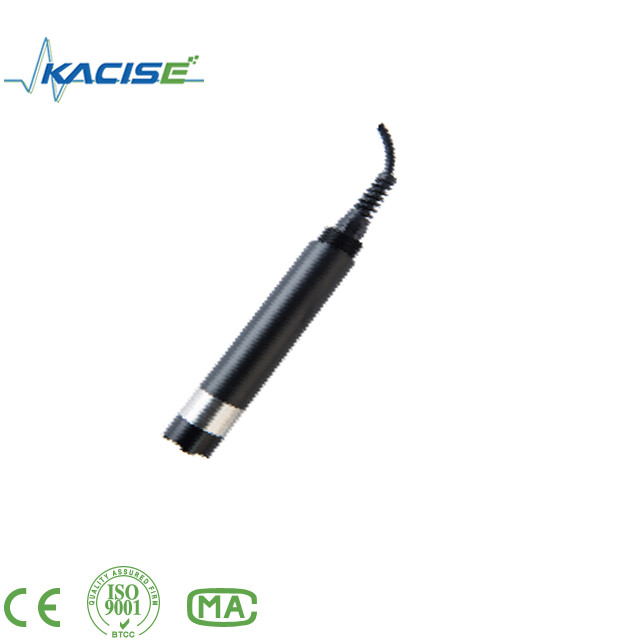

Digital Luminescent Dissolved Oxygen Sensor Two Point Calibration 1% Accuracy

1% Accuracy Luminescent Dissolved Oxygen Sensor

Digital Luminescent Dissolved Oxygen Sensor

Place of Origin:

Shaanxi, China

Nama merek:

Kacise

Sertifikasi:

Hubungi Kami

Minta Kutipan

Digital Luminescent Dissolved Oxygen Sensor Two Point Calibration 1% Accuracy

Rincian produk

principle:

Ultraviolet fluorescence method

Measuring range:

0~20mg/L

Accuracy:

Power supply:

DC 5~12V, current <50mA

Calibration:

two point calibration

Power suppluy:

12~24VDC ±10%

Port:

Xi'an or other

Menyoroti:

1% Accuracy Luminescent Dissolved Oxygen Sensor

Digital Luminescent Dissolved Oxygen Sensor

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

1pcs

Harga

$100.00 - $1,000.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

500 Piece/Pieces per Month

Produk terkait

KCW102 Perangkat pengolahan air gelombang elektromagnetik frekuensi rendah

Dapatkan Harga Terbaik

KCW101 Frekuensi - Peralatan pengolahan air gelombang elektromagnetik yang dimodulasi

Dapatkan Harga Terbaik

KHM100 Monitor Kualitas Air Logam Berat Otomatis Online

Dapatkan Harga Terbaik

KCW104 Frekuensi efisiensi tinggi - Perangkat menyapu

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

Luminescent Dissolved Oxygen Sensor

1. Applications

The fluorescence dissolved oxygen sensor makes use of a brand-new generation of fluorescence lifetime technology. Kacise independently undertakes the development of high-performance fluorescent materials. There is no anaerobic consumption, nor are there any flow restrictions, and no electricity is needed. The solution has no need for maintenance and calibration, no hydrogen sulphide, and exhibits excellent stability. It has a built-in temperature sensor and automatic temperature compensation. The RS485 output is highly suitable for networks that do not have a controller.

For instance, in certain complex industrial processes where precise measurement of dissolved oxygen is crucial, this sensor's new generation technology ensures accurate and reliable data. Without the requirement of electricity, it can operate in locations where power supply is limited or unstable. And the automatic temperature compensation feature means that even in environments with fluctuating temperatures, the sensor can provide consistent and accurate readings.

2. Feature

Digital sensor, RS485 output, support MODBUS,
no membrane,
no electrolyte,
no interference,
no need for frequent calibration,
no oxygen,
no flow restriction,
built-in temperature sensor, automatic temperature compensation.

3.Technical Specifications

product	Online fluorescence dissolved oxygen sensor
principle	Ultraviolet fluorescence method
Measuring range	0~20mg/L
Response time	10 sec
accurate	1%
Protection level	IP68
Deepest depth	Underwater 60 meters	underwater 10 meters
temperature range	0 ~ 50℃
Output	Support RS-485, MODBUS protocol
Power supply	DC 5~12V, current <50mA
size	Φ26*177.5 mm
Probe cable length	10 m, customizable 5 m, 15 m and 30 m cable
Fluorescent cap life	1 year
Maximum working pressure	6bar
product material	POM or ss316

4.Company Information

Digital Luminescent Dissolved Oxygen Sensor Two Point Calibration 1% Accuracy 0 剪切

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

Digital Luminescent Dissolved Oxygen Sensor Two Point Calibration 1% Accuracy 1

Digital Luminescent Dissolved Oxygen Sensor Two Point Calibration 1% Accuracy 2
