Name: High Precision Pressure Level Sensor 0.25% 0.5% 1.0% Accuracy
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GXseries
Price: 115.00 USD
Availability: InStock

Rumah > Produk > Fluid Level Meter >

High Precision Pressure Level Sensor 0.25% 0.5% 1.0% Accuracy

1.0% Accuracy Pressure Level Sensor

Fluid Pressure Level Transducer

Tempat asal:

Cina

Nama merek:

KACISE

Sertifikasi:

Model Number:

GXseries

Hubungi Kami

Minta Kutipan

High Precision Pressure Level Sensor 0.25% 0.5% 1.0% Accuracy

Rincian produk

Accuracy:

0.25%, 0.5%, 1.0%

Temperature:

customized available

name transducer:

Level transducer

Medium:

Oil ,water, fuel ,waste water, sea

Product name:

Standard electronic water level sensor

Port:

Shanghai or other

Menyoroti:

1.0% Accuracy Pressure Level Sensor

Fluid Pressure Level Transducer

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 PCS

Harga

$50.00 - $180.00/pieces

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 hari kerja

Menyediakan kemampuan

1000 Potongan/potongan per Minggu bisa dinegosiasikan

Produk terkait

Video

KDI Series Display Controller Mendukung Komunikasi Multi - Machine

Dapatkan Harga Terbaik

Video

KDI Series Display Controller dengan Open Internal Parameter Setting Interface Keakuratan Tinggi dan Resolusi 0,1

Dapatkan Harga Terbaik

Video

Kontroler Tampilan Pengukuran Seri KDI yang akurat dengan Multiple Index Input Switching dan Kompensasi Suhu

Dapatkan Harga Terbaik

Video

KDI Series Light Column Display Controller Dengan Pengukuran Digital Dan Analog

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

High precision pressure level sensor

1. Specification:

Spec.	Numerical value			Remark
Pressure range	0~1……500mH2O			1mH2O≈9.81kPa
Overload pressure	1.5times Rated pressure
fracture pressure	3 times rated pressure
Accuracy	0.25%F.S, 0.5%F.S, 1.0%F.S
Accuracy	0.25%F.S, 0.5%F.S, 1.0%F.S
Stability	Typical value: 0.1%F.S Max.: 0.2% F.S/year
Operating Temperature	-40°C~85°C or -40 °C ~125 °C
compensation temperature	-10°C~70°C
medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L
electrical properties	2 line	3 line
Output signal	4~20mA	0~5V	0~10V
Power supplies	10~30Vdc	80~30Vdc/ac	11~30Vdc/ac	Vdc/ac
load resistance	(U-10)/0.02( Ω )	more than 100k Ω
insulation	more than 100M Ω @50V
Electrical Connections	waterproof fixed cable + Two rectangle circle+Sealing Rings+seal gum+ Pure glue protection grade : IP68
pressure interface	G1/4,input type
response time	10ms
Electric strength	500Vac@1 second
Graduate Certificate Programs	certificate of explosion-proof, CE
electromagnetic compatibility	electromagnetic radiation EN50081-1/-2, electromagnetic susceptibilty: EN50082-2
lightning protection	air conduction resistance 8000V,case, cable conduction

2. Feature :

1). Diffused-Silicon oil filled core

2). All kinds of structure to satisfy different users

3). Easy to use with submersible measuring

4). Multiple pressure range and signal output

5). Non-polar 2 wire system current output

6). Can be used in lightning protection products

7). Reinforcing rib of liquid cable

8). Intrinsically safe explosion proof, Isolation explosion proof, CE

3. Application:

1). Deep well level measuring

2). Hydrologic measurement for river, lake, sea

3). Sewage treatment

4). Cloudy level measuring

5). Fluid reservoir level measuring

6). Water-saving irrigation

7). Circulating liquid consumption monitoring

8). Diversion works

4. Electric connection & structure

Packaging & Shipping

5. Package

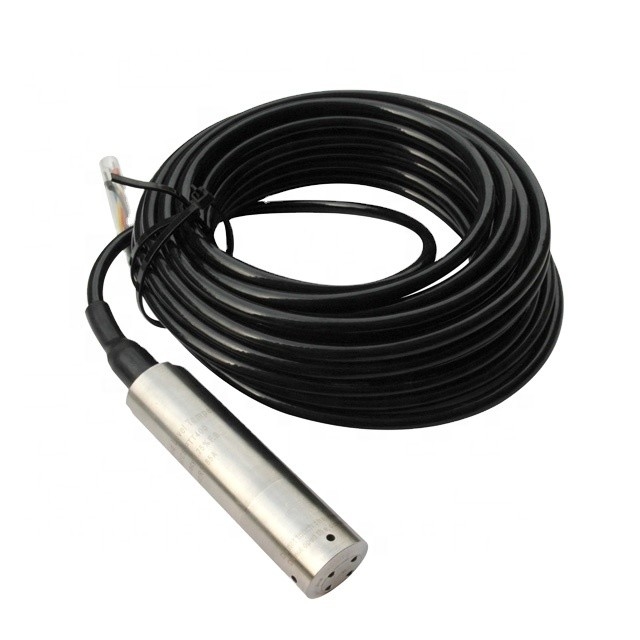

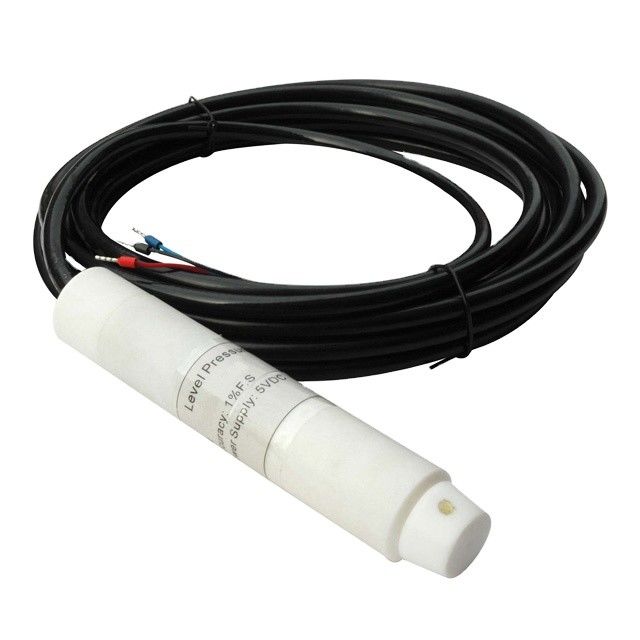

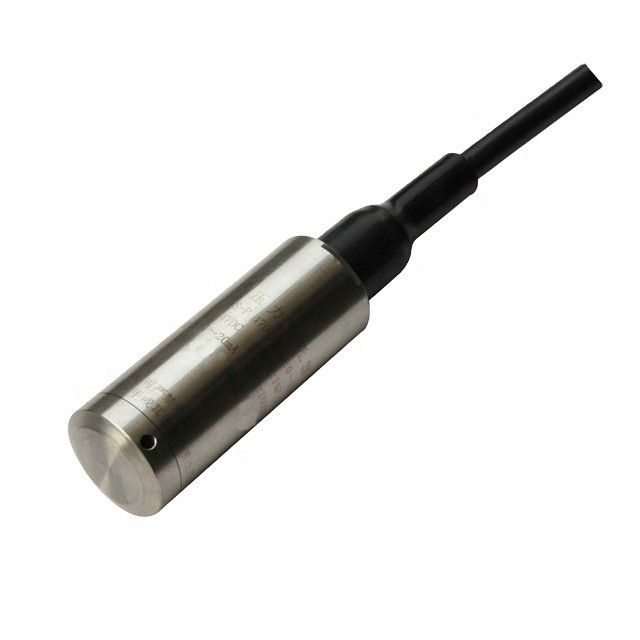

6. Product picture

High Precision Pressure Level Sensor 0.25% 0.5% 1.0% Accuracy 4

Feedback

High Precision Pressure Level Sensor 0.25% 0.5% 1.0% Accuracy 6

Please send us emali for more information.

In order to choose the suitable products for you, please send us below information with the feedback.

1. pressure range
2. accuracy
3. output signal
4. power supply voltage
5. pressure port
6. cable length

7. medium
8. temperature range

******************************************************************************************************************************************
