KUFS2000B Panel Mount Insertion Ultrasonic Flow Meter Installed In Instrument Box

Panel Mount Insertion Ultrasonic Flow Meter

KUFS2000B Ultrasonic Flow Meter

DN50 Ultrasonic Flow Sensor

Place of Origin:

China

Nama merek:

Kacise

Model Number:

KUFS2000B

Hubungi Kami

Minta Kutipan

KUFS2000B Panel Mount Insertion Ultrasonic Flow Meter Installed In Instrument Box

Rincian produk

Accuracy:

±1%

Velocity Range:

0~±10m/s, Bi-directional measurement

Pipe Size:

DN50~DN6000

Temperature:

- 30~160℃

Power Supply:

DC8~36V or AC85~264V

Interface:

RS485, support MODBUS

Data Storage:

SD card regularly store the pre-set results (optional)

Menyoroti:

Panel Mount Insertion Ultrasonic Flow Meter

KUFS2000B Ultrasonic Flow Meter

DN50 Ultrasonic Flow Sensor

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

Harga

274~316USD/pc

Packaging Details

carton

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100+

Produk terkait

Portable Doppler Flowmeter dengan fungsi Ekspor Data USB

Dapatkan Harga Terbaik

Portable Doppler Flowmeter Mendukung Tampilan Berbilang Bahasa

Dapatkan Harga Terbaik

IP65/IP67 Kelas Perlindungan Portable Doppler Flowmeter dengan fungsi penyimpanan data dan baterai lithium 12V dapat diisi ulang

Dapatkan Harga Terbaik

12V Baterai Lithium yang dapat diisi ulang yang didukung oleh Portable Handheld Flowmeter dengan Rating IP67 dan Output RS485

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

KUF2000 Series Insertion Ultrasonic Flow Meter

Introduction
KUF2000 series insertion type ultrasonic flow meter consists of the meter and insertion transducer.
Install the transducer by opening two holes on the pipeline. No need to cutoff water by using the specialized tool. Transducers are in direct contact with fluid, which make the measurement more steady and reliable.
If connecting Pt100 temperature transducer, it can realize the heat/energy measurement.

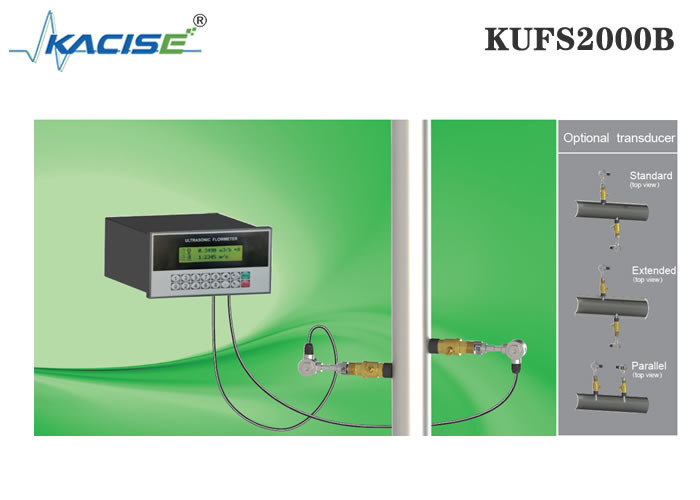

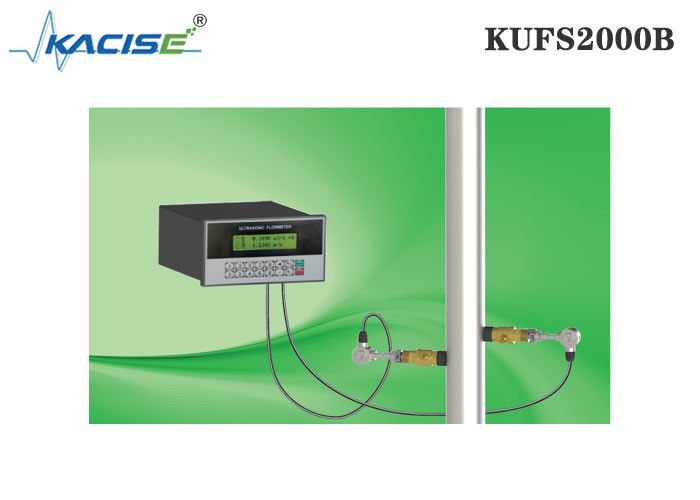

The KUFS2000B flow meter can be installed in instrument box.
Optional insertion type transducers, measuring range from DN50~DN6000mm.

KUFS2000B Panel Mount Insertion Ultrasonic Flow Meter Installed In Instrument Box 0

Working Condition

	Main Unit	Sensor
Protection	None	IP68
Humidity	≤80%RH	IP68
Temperature	-20~60℃	-30~160℃

Basic Parameters

Accuracy	±1%
Velocity Range	0~±10m/s, Bi-directional measurement
Pipe Size	DN50~DN6000
Temperature	- 30~160℃
Type of Liquid	Single liquid can transmit sound wave. such as water, sea water, sewage, oil, chemicals , alcohol, etc
Pipe Material	Carbon steel, stainless steel 304, stainless steel 316. Flange standard GB/T9119-2000, GB/T81-94
Signal Output	1 way 4-20mA output(impedance 0~1K, accuracy 0.1%) 1 way OCT pulse output( Pulse width 6 ~ 1000ms) 1 way relay output
Signal Input	3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
Interface	RS485, support MODBUS
Data Storage	SD card regularly store the pre-set results (optional)
Power Supply	DC8~36V or AC85~264V

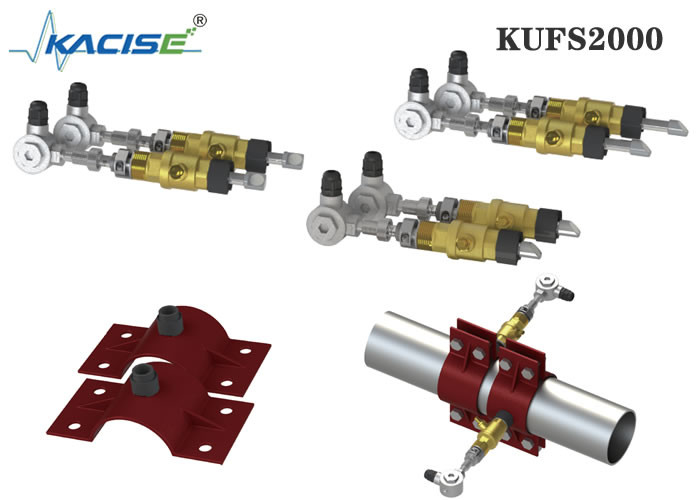

Optional Insertion Sensors

Standard Insertion Sensor

KUFS2000B Panel Mount Insertion Ultrasonic Flow Meter Installed In Instrument Box 1

· Suitable for the pipeline can be directly welded, like carbon steel and stainless.

· Pipeline thickness ≤ 2 0

· Measuring range: DN50~DN6000

· Temperature range:-30~+160℃

Extended Insertion Sensor

KUFS2000B Panel Mount Insertion Ultrasonic Flow Meter Installed In Instrument Box 2

· Suitable for the pipeline cannot be directly welded, like cement pipe, cast iron, PVC, steel or composite material.

· Pipeline thickness ≤ 7 0

· Measuring range: DN50~DN6000

· Temperature range:-30~+160℃

Parallel Insertion Sensor

KUFS2000B Panel Mount Insertion Ultrasonic Flow Meter Installed In Instrument Box 3

· Suitable for installation of insufficient space.

· Suitable for either weldable or non-weldable pipeline.

· Unlimited pipeline thickness, insertion depth=1/3 inner diameter.

· Measuring range: DN80~DN6000

· Temperature range: -30~+160℃

Pipe Clamp
By using pipe clamp, the insertion sensor can be installed without welding. There is no need to cut off water during installation. Especially suitable for cement pipe, cast iron pipe, PVC, copper pipe or composite material.

KUFS2000B Panel Mount Insertion Ultrasonic Flow Meter Installed In Instrument Box 4

Ordering information

KUFS2000B Panel Mount Insertion Ultrasonic Flow Meter Installed In Instrument Box 5
