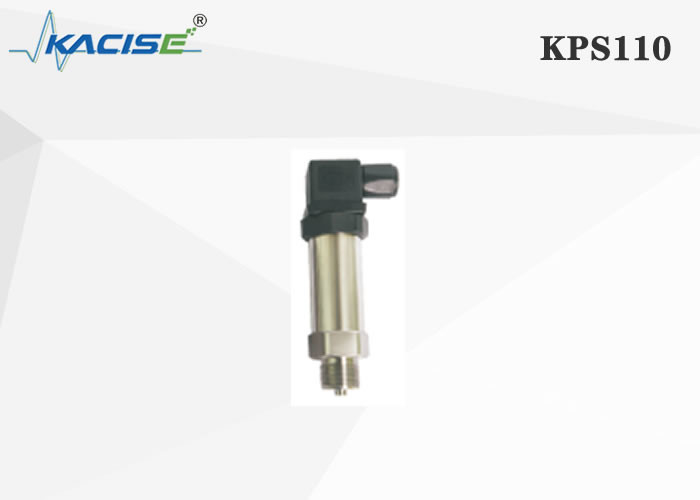

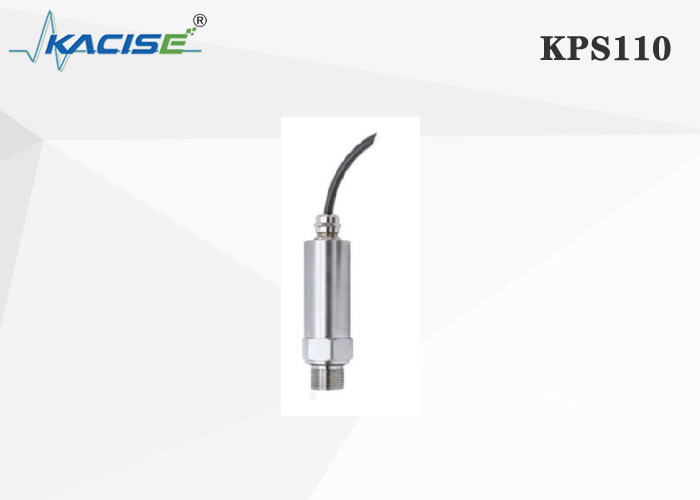

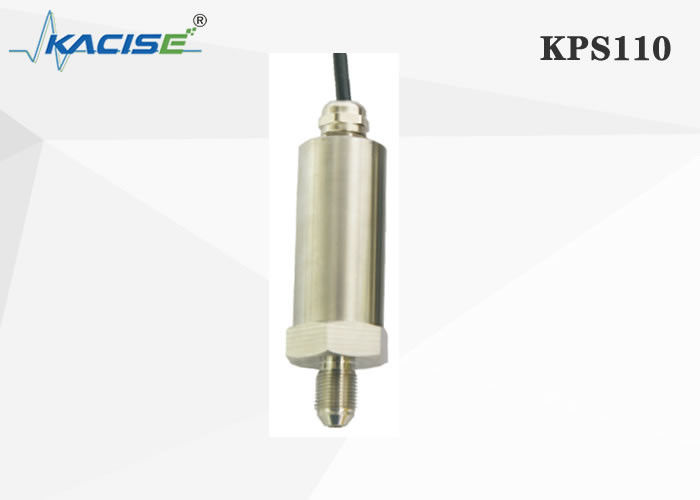

Name: Compensated And Intrinsically Safe Pressure Temperature Transmitter KPS110
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KPS110
Price: 152.00 USD
Availability: InStock

Rumah > Produk > Sensor tekanan presisi >

Compensated And Intrinsically Safe Pressure Temperature Transmitter KPS110

Compensated Pressure Temperature Transmitter

Intrinsically Safe Pressure Temperature Transmitter

KPS 110 Precision Pressure Sensor

Place of Origin:

China

Nama merek:

Kacise

Sertifikasi:

certificate of explosion-proof, CE

Model Number:

KPS110

Hubungi Kami

Minta Kutipan

Compensated And Intrinsically Safe Pressure Temperature Transmitter KPS110

Rincian produk

Pressure Range:

-0.1MPa┅0Mpa~0.01Mpa┅100Mpa

Overload:

2 times full scale pressure or 110MPa (whichever is the smaller)

Pressure Type:

Gauge pressure, absolute pressure, sealed gauge pressure

Temperature Resistance:

PT100 or PT1000 platinum resistance

Output Type:

RS485 temperature and pressure output

Power Supply:

12~30V DC

Load Resistance:

≥10k

Insulation Resistance:

100MΩ,100V DC

Case:

stainless steel

Sensor:

316L stainless steel

Sealing Ring:

fluororubber

Cable:

∅7.5mm polyethylene special cable

Degree of Protection:

IP65 (plug type);IP68 (cable type)

Menyoroti:

Compensated Pressure Temperature Transmitter

Intrinsically Safe Pressure Temperature Transmitter

KPS 110 Precision Pressure Sensor

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

Harga

dapat dinegosiasikan

Packaging Details

carton

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100+

Produk terkait

Bagian Otomotif Sensor Tekanan AC Otomotif

Dapatkan Harga Terbaik

4-20mA Output Grade Makanan Sanitasi Flush Diaphragm Hygienic Industrial Pressure Transmitter

Dapatkan Harga Terbaik

Low Cost 0,5-4,5V Kuningan Sensor Tekanan Air Untuk Gas Udara Industri

Dapatkan Harga Terbaik

4-20mA HART Output Smart Double Flange Differential Level Pressure Transmitter untuk Industri

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

1. Description
KPS110 pressure and temperature integrated transmitter is a temperature and pressure dual output sensor developed and produced by KACISE. It uses high stability and high reliability piezoresistive temperature and pressure integrated sensor and high-performance dual output transmitter. circuit, the overall performance is stable and reliable.
The products can be widely used in the detection and control of fluid pressure in petroleum, chemical, electric power, hydrology, geology and other industries.

2. Features

Reliable performance, safe and convenient to use
With short circuit protection and reverse polarity protection
Can choose gauge pressure, absolute pressure or sealed gauge pressure

3. Application

Petroleum, chemical industry, electric power
Urban water supply, hydrological exploration
Equipment matching, hydraulic and other industries

4. Specifications

Pressure Range	-0.1MPa┅0Mpa~0.01Mpa┅100Mpa
Temperature Range
Overload	2 times full scale pressure or 110MPa (whichever is the smaller)
Pressure Type	Gauge pressure, absolute pressure, sealed gauge pressure
Temperature Resistance	PT100 or PT1000 platinum resistance
Output Type	RS485 temperature and pressure output
Power Supply	12~30V DC
Load Resistance	≥10k
Insulation Resistance	100MΩ,100V DC
Case	stainless steel
Sensor	316L stainless steel
Sealing Ring	fluororubber
Cable	∅7.5mm polyethylene special cable
Degree of Protection	IP65 (plug type)	IP68 (cable type)
Compensation Temperature	-10℃～+80℃
Operating Temperature	-25℃～+80℃
Accuracy	0.5%
Zero Temperature Coefficient	0.03%FS/℃(≤100kPa); 0.02%FS/℃(＞100kPa)
Full Temperature Coefficient	0.03%FS/℃(≤100kPa); 0.02%FS/℃(＞100kPa)
Long-Term Stability	±0.3%FS/year (max.)

5. Drawing

Compensated And Intrinsically Safe Pressure Temperature Transmitter KPS110 0

6.Ordering Information

KPS110	Pressure and Temperature Transmitter
	Pressure Range		-0.1MPa┅0MPa～0.01 MPa┅100MPa
	［0～X］KPa or MPa		X: the actual pressure range
	Temperature Range		-25℃~80℃
	［0～Y］℃		Y: the actual temperature range
		Code		Output
		V		RS485
			Material
			Code	Diaphragm		Interface	Casing
			22	Stainless steel 316L		Stainless steel	Stainless steel
			24	Stainless steel 316L		Stainless steel 316L	Stainless steel 316L
				Code	Other function
				B₁	Hirschmann connection
				B₂	Fixed cable
				PC₃	G1/2 male thread with flush film
				PC₅	M20×1.5 male thread with flush film
				C₃	G1/2 male thread
				C₅	M20×1.5 male thread
				G	gauge pressure
				A	absolute pressure
				S	sealed gauge pressure
KPS110 -［0～100］kPa -［0～50］℃ - V - 22 - B₁C₅G
