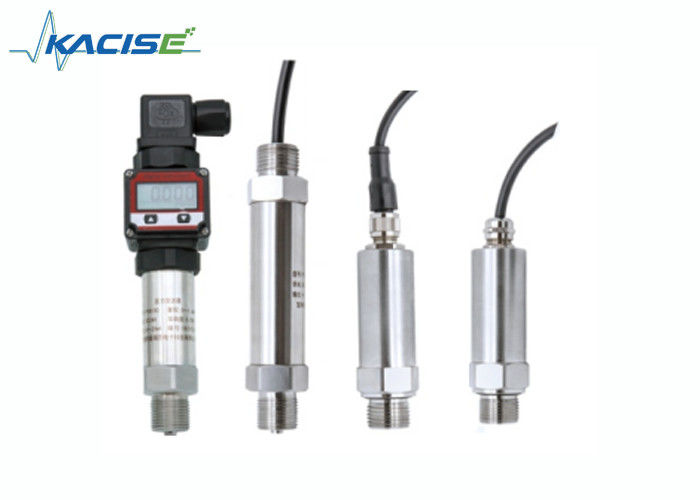

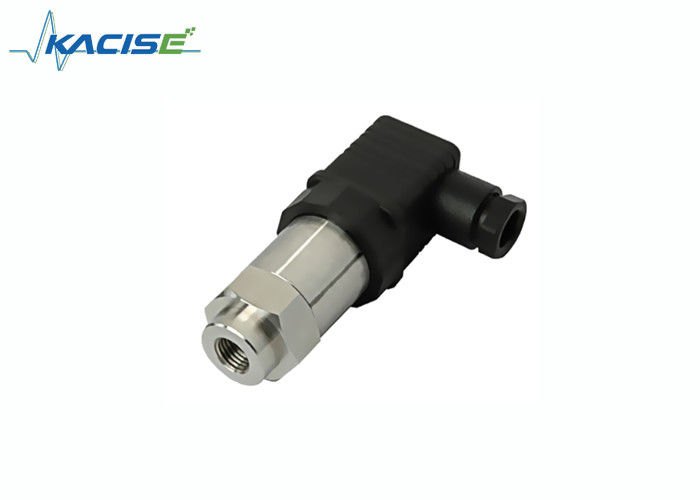

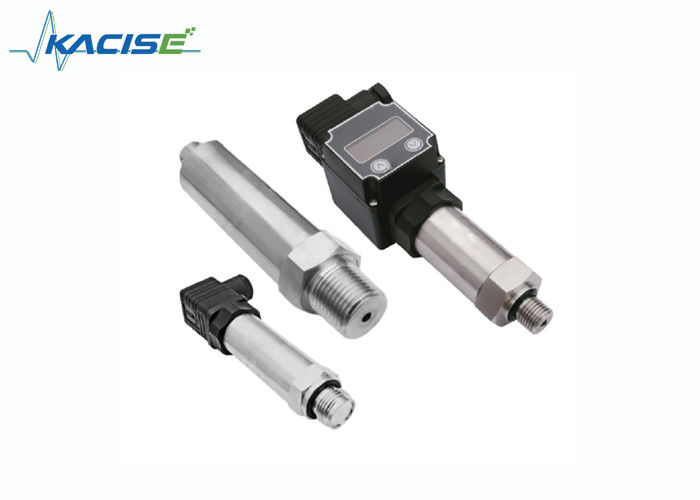

Diffused silicon stainless steel high precision wide range absolute pressure general use pressure transmitter
Introduction
KPT100 pressure transmitter uses diffused silicon pressure core as the sensing element, selects the all-digital circuit, the overall performance is stable and reliable, can carry on the long-distance signal transmission.All stainless steel structure, easy to install.Has the extremely high anti-interference and the anti-impact ability. Widely used in pneumatic, hydraulic, water supply, fire protection, environmental protection, medical and other industries.
Application
Dimensions in mm
Specification
| Pressure range | -0.1...0~100Mpa | Accuracy | ≤0.25%F.S |
| Stability | ≤0.1%/year | Overload | ≤200%F.S |
| Power Supply | 12-30VDC | Wiring Way | A variety of optional |
| Protection | IP65 | Relative Humidity | 0~90%RH |
| Environment temperature | -30~80°C | Medium temperature | -40~150°C |
| KPT100 | Universal pressure transmitter | ||||
| Range | Pressure range: -0.1MPa...0～100MPa | ||||
| ［0～X］bar | X: Actual pressure range | ||||
| Code | Signal output | ||||
| I | 4mA~20mA DC | ||||
| V | 0V~5V/10V DC | ||||
| R | RS485 | ||||
| Code | Electric connection | ||||
| H | Hirsman | ||||
| M | M12 | ||||
| P | PG7 Cable | ||||
| Code | Thread connection | ||||
| M20 | M20×1.5 Internal and external thread | ||||
| G14 | G1/4 Internal and external thread | ||||
| G12 | G1/2 Internal and external thread | ||||
