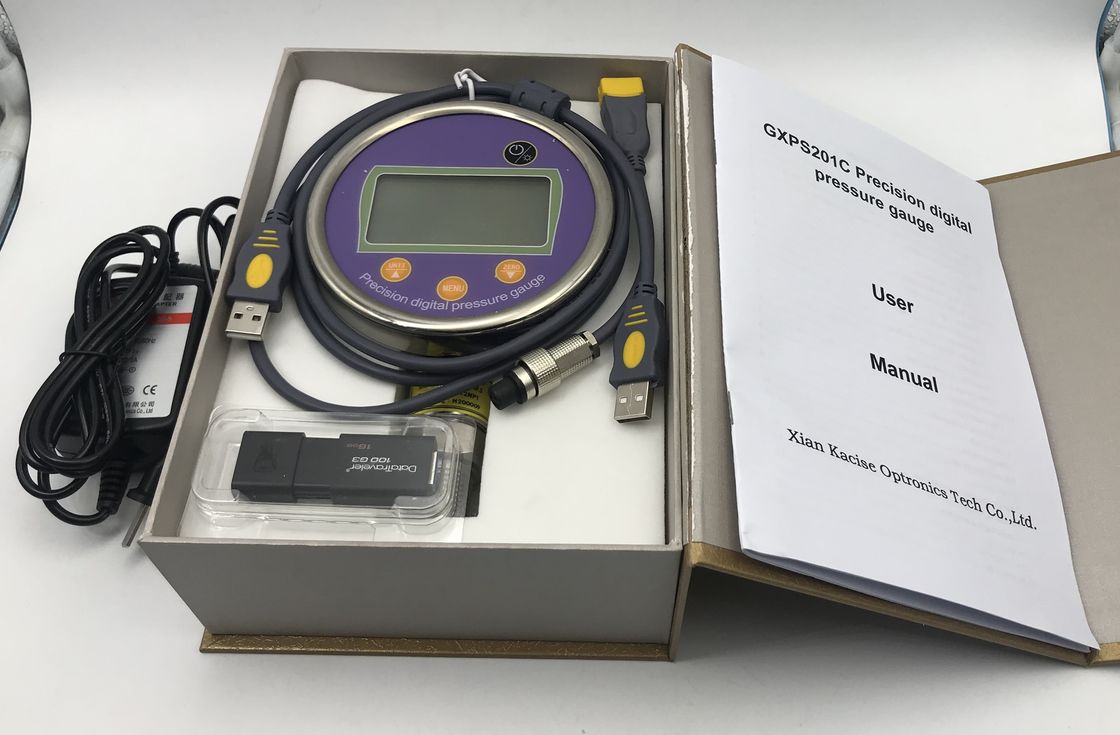

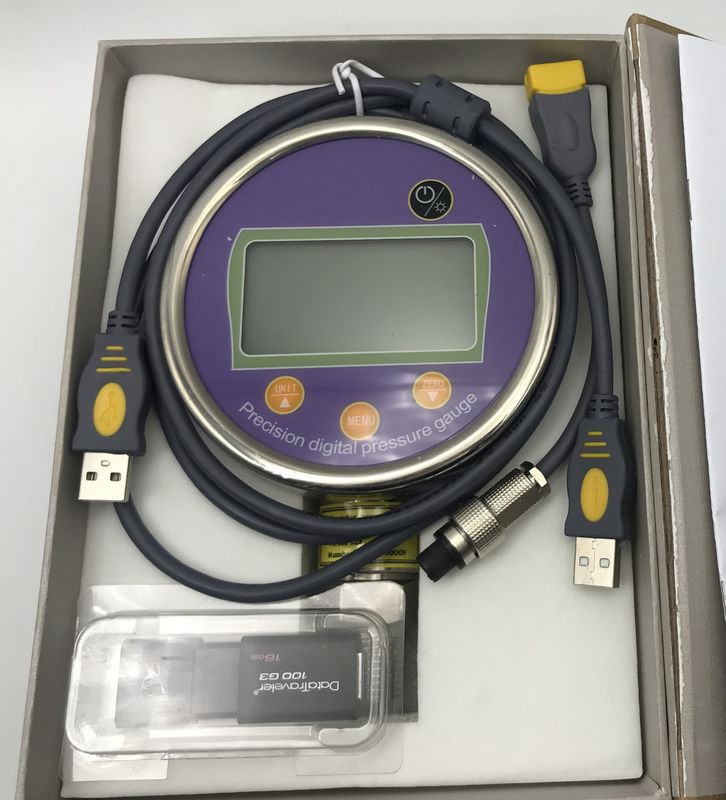

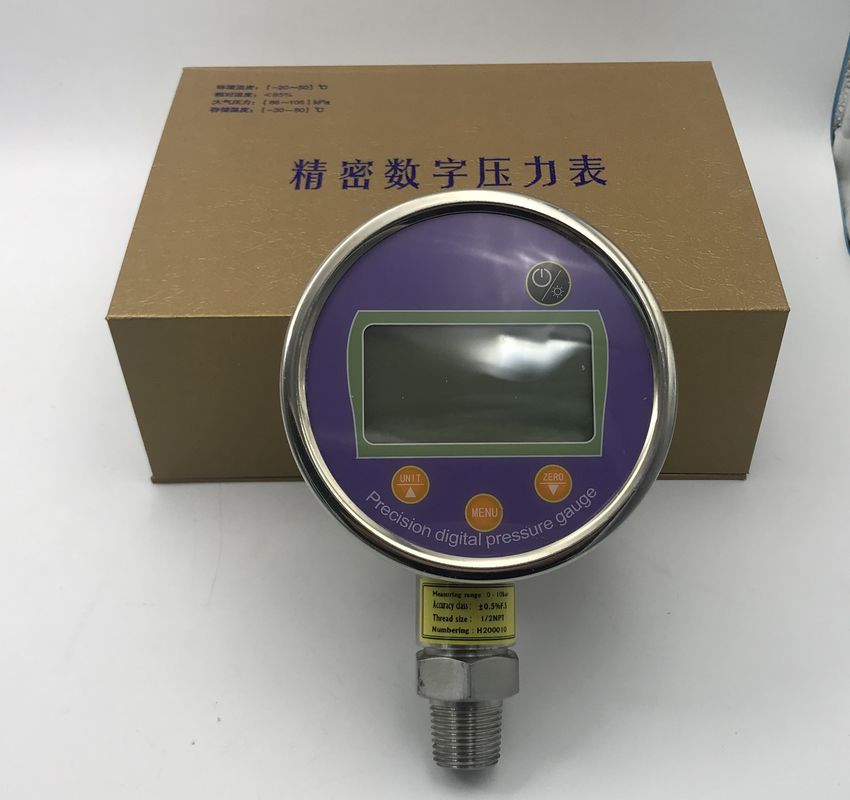

Stainless Steel High Precision Pressure Gauge With Data Logger GXPS201C

GXPS201C Digital Pressure Gauge with Data Logger

1. Product Description

The new generation of GXPS201C Digital Pressure Gauge with Data Logger uses touch button.
Increase the lifespan and waterproof grade of keys , simultaneously , Improve the ability of
human-computer interaction,All kinds of parameters are set,Convenient customer personalization are
set.

2. Product features:

• Touch key,and with a key tone,effectively improving the service life of keys.
• Using 4000mAh lithium battery for power supply (ER18505H),low power design.
• Battery replaceable design,It is convenient for customers to replace the batteries by themselves.
• Wide temperature temperature compensation,the application of various harsh environments.
• Peak record,Unit conversion,Complete function,Easy to use.
• Users can set their own acquisition rate according to their habits,automatic shutdown time,key lock time,backlight automatic closing time and other parameters.
• 11 kinds of pressure unit conversion,and can set the unit that needs to be converted,shut down the units that are not commonly used.
• Add the function of restoring the performance of the factory. In the process of user operation,if the operation is wrong,you can use this function,Restore pressure gauge to factory calibration data and set function.
• Prevent touching other keys, adding lock keys. In use,You can press the lock key,there will be a lock - locked pattern on the screen,lock other touch keys,and it doesn't affect pressure and use.After the completion of the use,can unlock and turn off the machine.

3. Parameter

4. Additional function:

Temperature measurement:the resolution is 0.1 degrees centigrade；
Percentage indication of pressure : use progress bar to display the percentage of pressure
measurements；
Data storage,storing 50 thousand data,data can be derived from U disk or computer software；The
export of 50 thousand data is only 7 minutes；The operation software of the storage type digital pressure
gauge is detailed in the specific instructions and attached CD ROMs.
