Place of Origin:
China (Mainland)
Nama merek:
Kacise
Sertifikasi:
ISO9001:2008
Model Number:
GR4

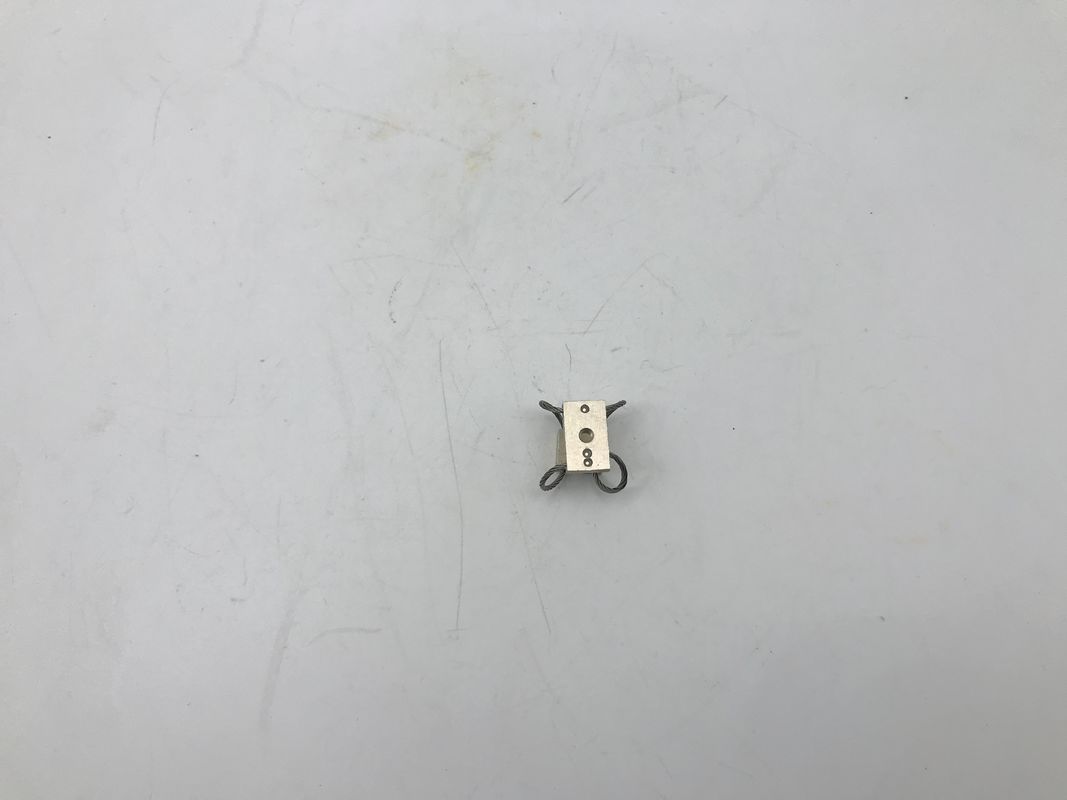

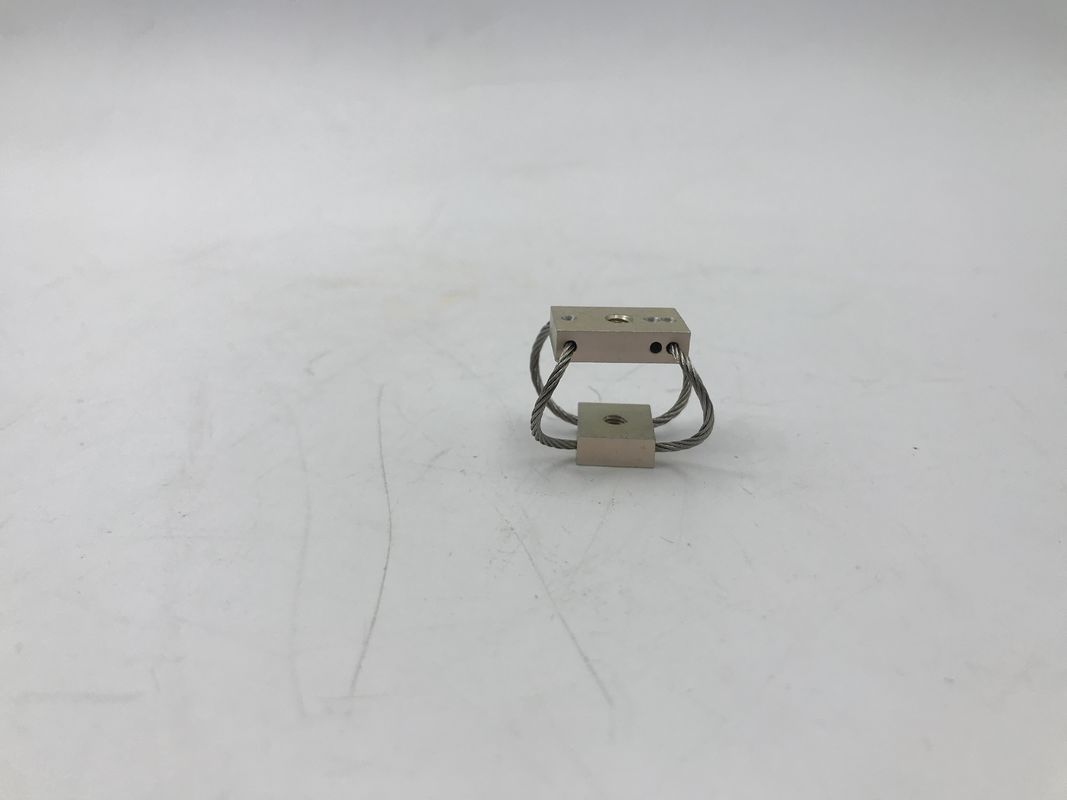

GR4 Exquisite Camera Gimbal Stabilizer Helicopter Drone Shock Vibration Insulation Stainless Steel Camera Vibration Isol
1. Feature
● Be designed as the same production of France
● Feature with less volume and weight
● With the characters of three dimensional variable stiffness and friction
● Widely be used on the small devices
2. Product Description
GX Compact Wire Rope Isolators feature an easy, single-point installation, which allows them to be installed in virtually any application. Their small size also permits the isolation of individual system components, makingthem ideal for use in sensitive equipment and electronics. Just as with our standard GX Wire Rope Isolators, GX Compact Wire Rope Isolators feature a patented, all-metal design and components that ensure maximum reliability, regardless of temperature or substrate requirement, and that can help meet MILSPECS similar to those of our Wire Rope Isolator series. Please refer to our “Compact Wire Rope Isolator Sizing Information”.
3.Parameters
Dimension Parameter Table
| Model | Height ±1.5(mm) | Width (mm) | Weight (kg) | MountingOptions | Thru Hole(mm) | Thread (mm) | C’sink |
| GR4-100 | 42 | 47 | 0.63 | A,B,C,D,E,S | φ7 | M6x1.0 | 90 |
| GR4-200 | 53 | 54 | 0.63 | ||||
| GR4-300 | 60 | 59 | 0.68 | ||||
| GR4-400 | 75 | 58 | 0.77 |
Table 1 GR4 Series Technical Parameters
| Model | Max Static Load(N) | Max Deflection(mm) | Kv (Vibration)(KN/m) | Ka(Shock)(KN/m) |
| GR4-100 | 24 | 19.6 | 12 | 5.8 |
| GR4-200 | 18 | 29.7 | 6 | 2.5 |
| GR4-300 | 13 | 35.8 | 4.4 | 1.6 |
| GR4-400 | 6.7 | 49.3 | 2.2 | 0.7 |
Table 2 GR4 45°Compression/Roll Load
| Model | Max Static Load(N) | Max Deflection(mm) | Kv (Vibration)(KN/m) | Ka(Shock)(KN/m) |
| GR4-100 | 11 | 19.3 | 6.4 | 2.8 |
| GR4-200 | 6.7 | 29.5 | 3.1 | 1.1 |
| GR4-300 | 5.3 | 37.1 | 2.2 | 0.7 |
| GR4-400 | 3.6 | 52.3 | 1.1 | 0.4 |
Table 3 GR4 Shear/Roll Load
| Model | Max Static Load(N) | Max Deflection(mm) | Kv (Vibration)(KN/m) | Ka(Shock)(KN/m) |
| GR4-100 | 8.5 | 17.3 | 1.9 | 1.9 |
| GR4-200 | 7.1 | 26.4 | 1.1 | 1.1 |
| GR4-300 | 5.3 | 33.3 | 0.7 | 0.7 |
| GR4-400 | 3.3 | 47 | 0.4 | 0.5 |
4. Application Field
| Applications | Typical Equipment | Protection From | Operational Advantages |
| Shipboard | Electronics, Computers, Machinery |
Explosive blast, Inherent vibration, Storms |
Long life, Maintenance-free, Temperature extremes, Corrosion resistance, All axes protection |
| Rough Terrain Vehicles | Instrumentation, Generators, Electronics |
Rough terrain, Poor road conditions, Collision |
Long life, Maintenance-free, Temperature extremes, Ozone, Radioactivity, UV Radiation |
| Aircraft | Electronics, Computers | High-G maneuvering, Hard landings, Turbulent air |
Temperature and altitude extremes, Lightweight |
| Shipping Containers | Optics, Instruments, Missiles, Electronics |
Transit, Handling drop, Loading/Unloading |
Long life, Maintenance-free, Exposure to moisture, Repeated use |
| Industrial Equipment |
Centrifuge, Dryers, Pumps |
Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness |
Long life, Maintenance-free, Corrosive environments |
| Ordnance Equipment |
Missile launchers, Tank artillery, Computer controls, Electronics |
Rough terrain, Railroad humping, Transit | Maintenance-free, Temperature extremes, Nearby blast |
| Medical Equipment |
Mechanical equipment necessary for patient care |
Vibration from moving parts, Mobile carts-Transport shock | Maintenance-free, No out gassing, Can be sterilized |
| Chimneys |
Chimneys, Scrubbers, Measuring devices |
Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc. |
Maintenance-free, Temperature extremes, Corrosive environments |
