Name: IP65 24V Overload 200% High Precision Pressure Gauge 4 - 20mA 0.56 Inch LED Display
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KPG104
Price: 1,030.00 USD
Availability: InStock

Rumah > Produk > Tekanan presisi digital >

IP65 24V Overload 200% High Precision Pressure Gauge 4 - 20mA 0.56 Inch LED Display

stainless steel pressure gauge

submersible pressure sensor

Place of Origin:

China (Mainland)

Nama merek:

Kacise

Sertifikasi:

certificate of explosion-proof, CE

Model Number:

KPG104

Hubungi Kami

Minta Kutipan

IP65 24V Overload 200% High Precision Pressure Gauge 4 - 20mA 0.56 Inch LED Display

Rincian produk

Pressure type::

Gauge

Long term Stability::

≤0.1%/year

Power ::

24VDC /220VAC

Display:

0.56” LED

Display range::

-1999~9999

Operating temperature::

-20~70 ℃

Protection::

IP65

range:

-0.1…0~0.01…100MPa

accuracy:

±0.5%FS

Overload:

200%

Menyoroti:

stainless steel pressure gauge

submersible pressure sensor

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

1pcs

Harga

dapat dinegosiasikan

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal

Supply Ability

1000 Pieces per Week

Produk terkait

Video

86--17719566736

Hubungi Sekarang

Deskripsi Produk

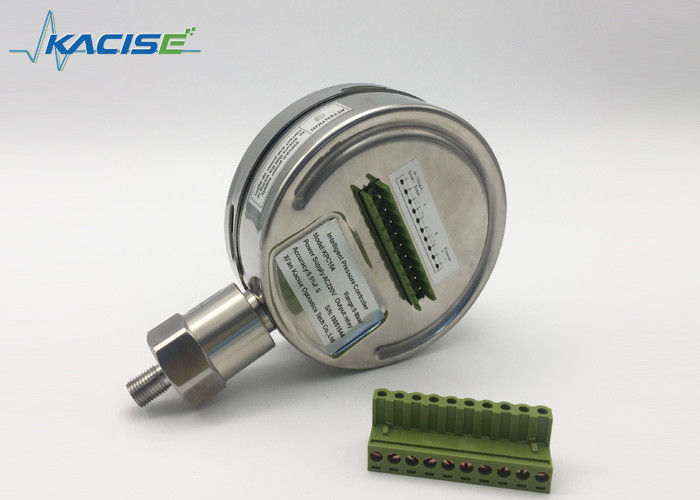

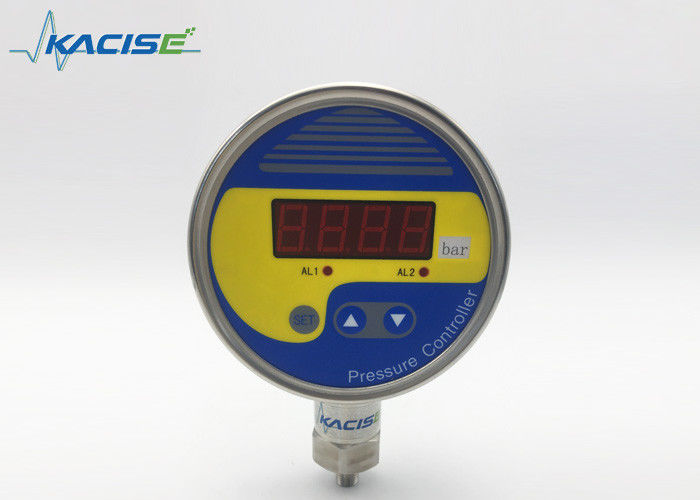

KPG104 Digital Pressure Gauge

1. Product features:

100mm dial design
4-digit LED display
Various power supply 24VDC or 220VAC
4-20ma standard signal output (RS485 optional)

2. Parameter

range:	-0.1…0~0.01…100MPa
accuracy:	±0.5%FS
Overload:	200%
Pressure type	Gauge
Long term Stability:	≤0.1%/year
Power :	24VDC /220VAC
Display:	0.56” LED
Display range:	-1999~9999
Operating temperature:	-20~70 ℃
Relative humility:	≤80%
Protection:	IP65
Pressure range:	according to buyers’ request.

3.Product Description

A pressure measurement & control product with intelligent digital display, it is combined the functions of pressure measurement, display, output and control.

IP65 24V Overload 200% High Precision Pressure Gauge 4 - 20mA 0.56 Inch LED Display 0
