Name: KWS-206 Ammonia Gas Sensor High Accuracy With PH And Temperature Compensation
Brand: Kacise
SKU: KBU601
Rating: 4.7 (193 reviews)

Rumah > Produk > Sensor Kualitas Air >

KWS-206 Ammonia Gas Sensor High Accuracy With PH And Temperature Compensation

water turbidity sensor

oil in water sensor

Place of Origin:

China

Nama merek:

Kacise

Sertifikasi:

Model Number:

KBU601

Hubungi Kami

Minta Kutipan

KWS-206 Ammonia Gas Sensor High Accuracy With PH And Temperature Compensation

Rincian produk

Measuring range:

0-1000mg/L NH4-N

accurate:

pH range:

4-10

pH accurate:

±0.1

Power supply:

12～24VDC ±10%

Output:

Support RS-485, MODBUS protocol

Menyoroti:

water turbidity sensor

oil in water sensor

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

0-100

Harga

dapat dinegosiasikan

Packaging Details

carton

Supply Ability

100

Produk terkait

Sensor pemantauan air ozon presisi menggunakan metode tegangan konstan dan kompensasi suhu otomatis Pt1000

Dapatkan Harga Terbaik

3/4 Metode Pemasangan NPT Industri Grade Online Ozon Content Sensor Untuk Lingkungan -5-65C

Dapatkan Harga Terbaik

Detektor Air Ozon RS-485 Modbus RTU Profesional Untuk Aplikasi Industri

Dapatkan Harga Terbaik

Top- IP68 Ozone Water Monitor Untuk Kondisi PH 4-9 Dengan Kompensasi Suhu Otomatis Pt1000 Sempurna

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

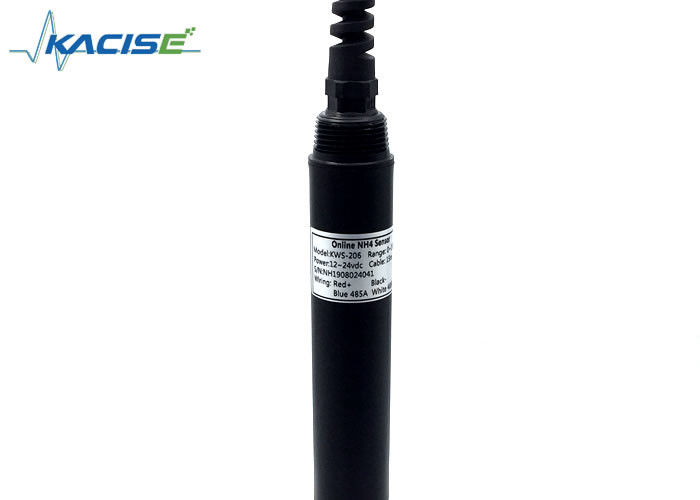

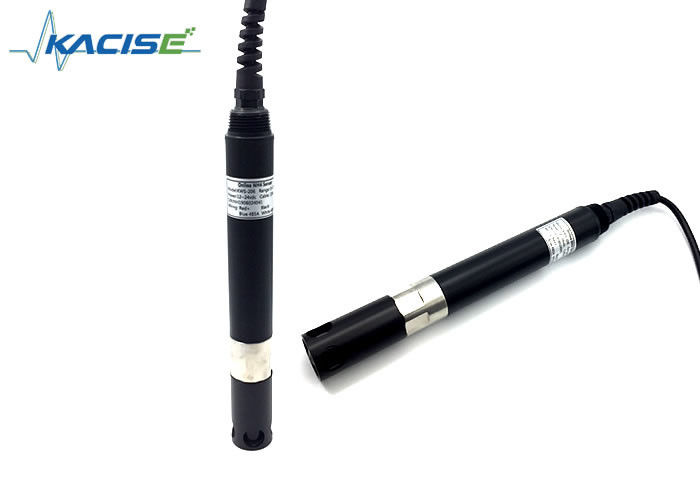

KWS-206 Online NH4-N Ammonia Nitrogen Sensor With pH And Temperature Compensation

Introduction

The Kacise KWS-206 integrated online ammonia nitrogen sensor is fabricated using a PVC membrane-based ammonium ion selective electrode for testing ammonium ion content in water with temperature compensation to ensure fast, simple, accurate and economical testing.

Feature

Signal output: RS-485 bus, Modbus/RTU protocol, convenient to connect to PLC, DCS, industrial control computer, general controller, paperless recording instrument or touch screen and other third-party equipment.
The patented ammonium ion probe, the internal reference solution oozes extremely slowly from the microporous salt bridge at a pressure of at least 100 KPa (1 Bar). Such a reference system is very stable and has a longer electrode life than conventional industrial electrodes.
Easy to install: 3/4 NPT thread (pipe thread) for easy submersible installation or installation in pipes and tanks.
IP68 protection grade.

Technical Specifications

Model	KWS-206
Range	0～1000mg/L
Resolution	0.01mg/L
Accuracy	±10% or ±1mg/L
Operating Temperature	0～40℃
Work Pressure	＜0.1MPa
Ph Range of Medium	4～10 pH
Temperature Compensation	automatic temperature compensation (Pt1000)
Power Supply	12～24VDC ±10%
Output	RS485, Modbus/RTU
Material	PVC and POM
Installation	3/4NPT, submersible installation
Cable Length	5m, customizable
Calibration	two-point calibration
Power Consumption	＜0.5W
Protection Grade	IP68

Dimension
