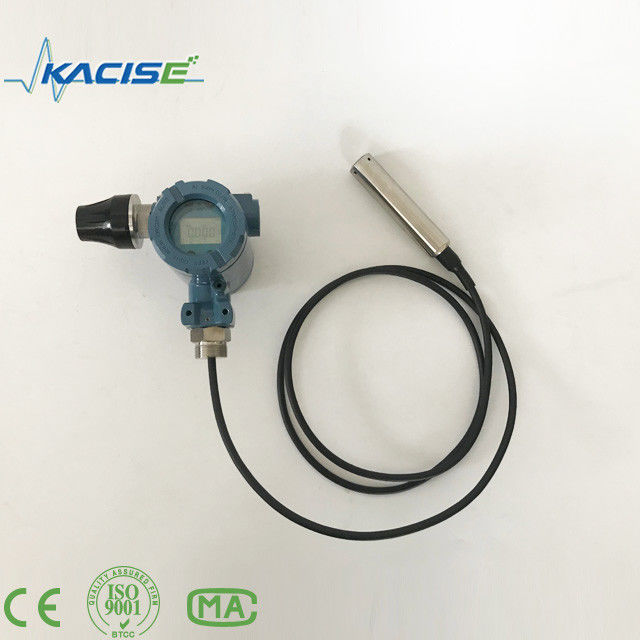

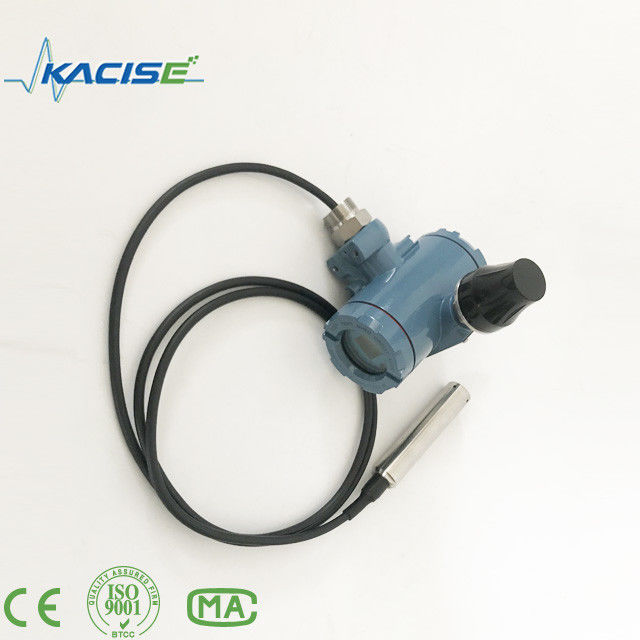

Name: Wireless GPRS / GSM Water Quality Sensor For Water Purification System
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KBU601
Price: 5,000.00 USD
Availability: InStock

Rumah > Produk > Sensor Kualitas Air >

Wireless GPRS / GSM Water Quality Sensor For Water Purification System

water turbidity sensor

oil in water sensor

Place of Origin:

China

Nama merek:

KACISE

Sertifikasi:

ISO / CE

Model Number:

KBU601

Hubungi Kami

Minta Kutipan

Wireless GPRS / GSM Water Quality Sensor For Water Purification System

Rincian produk

Product Material:

POM

Measuring Range:

0~20ppb, 0~50ppb, 0-500ppb, 0~ 0-5000ppb

Accurate:

Resolution:

0.1ppb, 0.01ppb

Temperature:

0 ~ 50℃

communication mode:

GPRS/GSM, 2G/3G/4G

Protection Level:

IP68

Cable:

10m,5m, other

Application:

Oil in waste water,Water Purification System

Menyoroti:

water turbidity sensor

oil in water sensor

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

0-100

Harga

dapat dinegosiasikan

Packaging Details

Carton / Wooden box

Delivery Time

7 Working days

Payment Terms

L/C, D/A, D/P, Western Union, MoneyGram, T/T

Supply Ability

100

Produk terkait

KCW102 Perangkat pengolahan air gelombang elektromagnetik frekuensi rendah

Dapatkan Harga Terbaik

KCW101 Frekuensi - Peralatan pengolahan air gelombang elektromagnetik yang dimodulasi

Dapatkan Harga Terbaik

KHM100 Monitor Kualitas Air Logam Berat Otomatis Online

Dapatkan Harga Terbaik

KCW104 Frekuensi efisiensi tinggi - Perangkat menyapu

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

Online oil-in-water sensor

Feature

Digital sensor, RS-485 output, support MODBUS. Optional automatic cleaning brush to eliminate the impact of oil on the measurement, this product uses a unique optical and electronic filtering technology to eliminate the impact of ambient light on the measurement, not affected by suspended solids.

Applications

The oil sensor in the water uses the principle of ultraviolet fluorescence analysis and has high sensitivity for detecting soluble and emulsifiable oil. were able Use a self-cleaning brush to effectively eliminate the effect of oil on the measurement. Suitable for oil field monitoring, industrial circulating water, condensed water, wastewater treatment,

Various water quality monitoring programs, such as surface water stations.

Technical Specifications

product	oil-in-water sensor	Self-cleaning oil-in-water sensor
principle	Ultraviolet fluorescence method
Measuring range	0-500ppb or 0-5000ppb
Resolution	0.1ppb
accurate	5%
Protection level	IP68
Deepest depth	Underwater 60 meters	underwater 10 meters
temperature range	0 ~ 50℃
Output	Support RS-485, MODBUS protocol
Power supply	DC 5~12V, current <50mA	DC 5~12V, current <50mA (when not cleaned)
size	Φ22mm*120mm	Φ33mm*156mm
Probe cable length	10 m, customizable 5 m, 15 m and 30 m cable
product material	POM
Self-cleaning system	exist	No
Optical window	optical fiber
