Name: Submersible Liquid High Accuracy Pressure Sensor Irrigation Sewage Treatment Measurement Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GXPS400
Price: dapat dinegosiasikan USD
Availability: InStock

Rumah > Produk > Sensor tekanan presisi >

Submersible Liquid High Accuracy Pressure Sensor Irrigation Sewage Treatment Measurement Sensor

high accuracy pressure sensor

piezoresistive pressure transmitter

Place of Origin:

Shaanxi, China (Mainland)

Nama merek:

Kacise

Sertifikasi:

CEISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof certificates

Model Number:

GXPS400

Hubungi Kami

Minta Kutipan

Submersible Liquid High Accuracy Pressure Sensor Irrigation Sewage Treatment Measurement Sensor

Rincian produk

Range:

0...200m

Power Supply:

9-30V

Accuracy:

±0.25%F.S, ±0.5%F.S

Material:

stainless steel or customize

Output:

4-20mA , 0-10V , 0-5V , 0.5-4.5V

Operating temperature:

-40°C~85°C

Menyoroti:

high accuracy pressure sensor

piezoresistive pressure transmitter

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

1 piece

Harga

dapat dinegosiasikan

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

10000 Piece/Pieces per Week negotiable

Produk terkait

Screw Thread Installation Precision Pressure Sensor RS485 Digital Output Pressure Sensor

Dapatkan Harga Terbaik

KSCCP21 Capacitive Ceramic Precision Pressure Sensor Compact Design High Accuracy

Dapatkan Harga Terbaik

Transmitter tekanan dengan output 4 ~ 20mA dan 0 ~ 5V Tekanan -0.1-100MPa untuk peralatan pertanian

Dapatkan Harga Terbaik

CCP serices capacitive ceramic pressure elements circular 21mm chip Pressure sensors

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

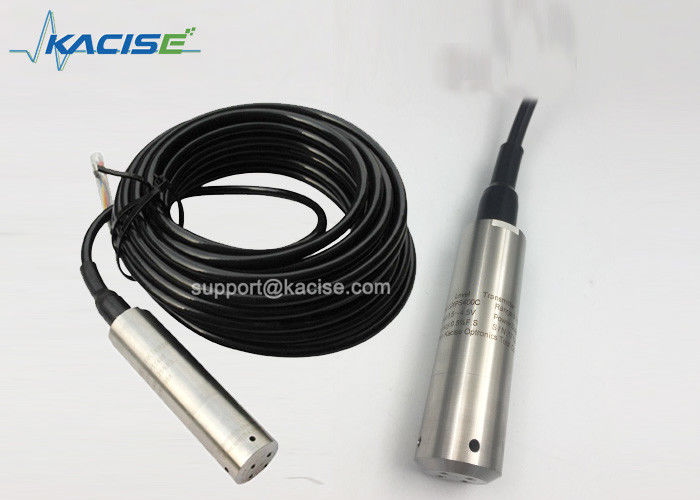

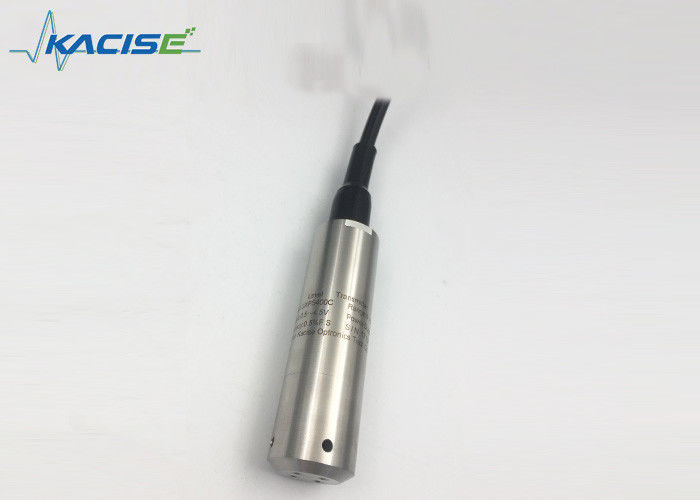

GXPS400 Pressure Submersible Liquid Water / Fuel / Oil / Liquid Level Sensor With Vented Cable

Introduction

GXPS400 series level transmitter is a special structure and use of products, high precision, small size and

good stability. Special strong cables for corrosive, abrasive, and chemical environment are offered

according to filed environment. The products are approved with CE, intrinsically safe and explosion-proof

certificates. Customized solutions for various fluids can be supplied.

Feature

Diffused-Silicon oil filled core
All kinds of structure to satisfy different users
Multiple pressure range and signal output
Non-polar 2 wire system current output
Easy to use with submersible measuring
Can be used in lightning protection products
Reinforcing rib for liquid cable available
Intrinsically safe explosion proof, Isolation explosion proof, CE

Application

Sewage treatment
Cloudy level measuring
Hydrologic measurement for river, lake, sea
Circulating liquid consumption monitoring
Deep well level measuring
Fluid reservoir level measuring
Water-saving irrigation
Diversion project

Electronic interface and signals definition

Parameter

Spec.	Numerical value
Pressure range	0~1……500mH2O 9.8KPa…4900KPa 0.09bar…49bar 0.09atm…48atm 1.4psi… 711psi 2.8inchHg…1400inchHg
Overload pressure	1.5times Rated pressure
Secondary containment	3 times rated pressure
Accuracy	±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Stability	Typical value: 0.1%F.S Max.: 0.2% F.S/year
Operating Temperature	-40°C~85°C or -40 °C ~125 °C
Compensation temperature	-10°C~70°C
Medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L
Electrical properties	2 line	3 line
Output signal	4~20mA	0~5V	0~10V
Power supplies	10~30Vdc	80~30Vdc/ac	11~30Vdc/ac
Load resistance	(U-10)/0.02(Ω)	〉 100kΩ
Insulation	〉 100MΩ@50V
Electrical Connections	waterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue protection grade : IP68
Pressure interface	G1/4,input type
Response time	10ms
Electric strength	500Vac@1 second
Graduate Certificate Programs	certificate of explosion-proof, CE
Electromagnetic compatibility	electromagnetic radiation EN50081-1/-2, electromagnetic susceptibility: EN50082-2
Lightning protection	air conduction resistance 8000V,case, cable conduction

Ordering information

GX-Type-Range-Output-Accuracy-Power-Structure-Cable length-Package

Type: PS400=universal type, PS400E=intrinsically safe type, PS400D=isolation explosion proof ,PS400L= lighting protection, PS400A=thread mounted, PS400B=Submersible & thread type, PS400-TH=Sediment prevention, PS430=minor diameter, PS400-1=antifouling, PS400-2=High density, PS470=economical, RSV=Reserved
Range: 1m…500m= the upper limitation of the range
Output: A=4~20mA, V=0~5Vdc, V1=1~5Vdc. V2=0~10Vdc
Accuracy: 0.25=±0.25%F.S, 0.5=±0.5%F.S, 1.0=±1.0%F.S
Power: 24VDC, 11~30Vdc, or customized
Structure: T= submersible type, G=F=split, Ht=customized
Cable length: XXm=XX meter 1-150m
Package: Bb, Foam

e.g. GXPS400-2.5m-A-0.5-DC24-T-5m-Foam

PS400, measuring range is 0-2.5mH2O, accuracy is 0.5%, 24Vdc power supply 4-20mA output, submersible type with 5m cable, foam packaged.
