Place of Origin:
China
Nama merek:
KACISE
Sertifikasi:
CE
Model Number:
KCZ-201

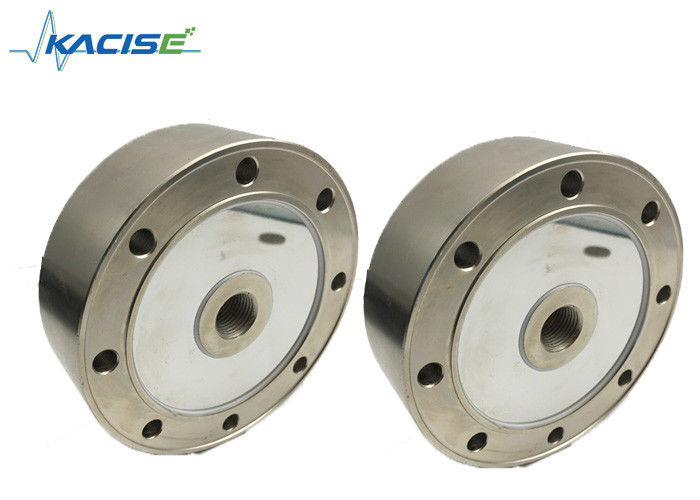

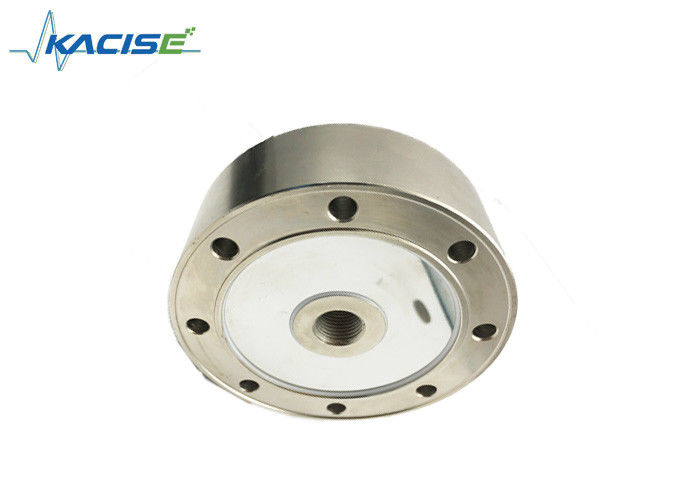

High Capacity Pancake Spoke Scale Tension Compression Load Cell Of Alloy Steel
Features
Low profile with small deflection .
Applications
Made of stainless steel Suitable for automotive press fit, automated assembly, 3CS products testing, new energy product accembly, medical testing, robotics, mold assembly and other industrial testing and controlling system.
Technical Specifications
| Capacity | 50, 100, 200, 300, 500kg |
| Rated output | 2.0±0.1%mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.03%F.S |
| Repeatability | 0.03%F.S |
| Hysteresis | 0.03%F.S |
| Creep (30min) | 0.03%F.S |
| Temp.effect on output | 0.03%F.S/10℃ |
| Temp.effect on zero | 0.03%F.S/10℃ |
| Input impedance | 780±20ohm |
| Output impedance | 700±10ohm |
| Insulation | ≥5000M ohm/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S |
| Ultimate overload | 200%F.S |
| Cable size | Φ5x4000mm |
| Zero balance | ±2%F.S. |
| Capacity | 50, 100, 200, 300, 500kg |
| Rated output | 2.0±0.1%mV/V |
| IP class | IP69 |
Dimensions and Connection
Mounting dimension
| Cap (t) | A | B | C | D | E | F | G | H | J | K | M |
| 0.11~1.76 | 133.4 | 76.2 | 25.4 | 15.4 | 30.7 | 30.2 | 57.7 | 14.2 | 13 | 20.6 | M12 |
| 2.2 | 136.7 | 76.2 | 25.4 | 18.4 | 36.8 | 36.6 | 55.6 | 16.6 | 13 | 12.5 | M12 |
| 4.4 | 171.5 | 95.3 | 38.1 | 21.4 | 43.9 | 432.9 | 73.8 | 22.9 | 20.5 | 22.2 | M20 |
