Name: Accurate Differential Pressure Transmitter , Differential Pressure Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GXPS500
Price: 152.00 USD
Availability: InStock

Rumah > Produk > Sensor tekanan presisi >

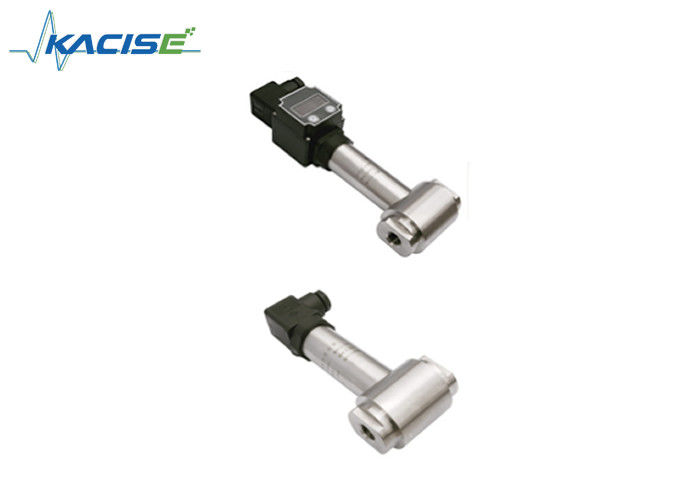

Accurate Differential Pressure Transmitter , Differential Pressure Sensor

piezoresistive pressure transmitter

explosion proof pressure transmitter

Place of Origin:

China

Nama merek:

Kacise

Sertifikasi:

Model Number:

GXPS500

Hubungi Kami

Minta Kutipan

Accurate Differential Pressure Transmitter , Differential Pressure Sensor

Rincian produk

Pressure range:

±5kPa……±10000kPa

Pipeline pressing:

3，5，10 times nominal pressure

Stability:

Typical value 0.25%F.S, Max.: 0.5%F.S

Compensated Temperature Range:

－10℃~70℃

Electrical Connections:

Waterproof cable, 1.5meter length, IP65

Pressure type:

differential pressure

Menyoroti:

piezoresistive pressure transmitter

explosion proof pressure transmitter

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

Packaging Details

normal

Payment Terms

D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

10000 per week

Produk terkait

Bagian Otomotif Sensor Tekanan AC Otomotif

Dapatkan Harga Terbaik

4-20mA Output Grade Makanan Sanitasi Flush Diaphragm Hygienic Industrial Pressure Transmitter

Dapatkan Harga Terbaik

Low Cost 0,5-4,5V Kuningan Sensor Tekanan Air Untuk Gas Udara Industri

Dapatkan Harga Terbaik

4-20mA HART Output Smart Double Flange Differential Level Pressure Transmitter untuk Industri

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

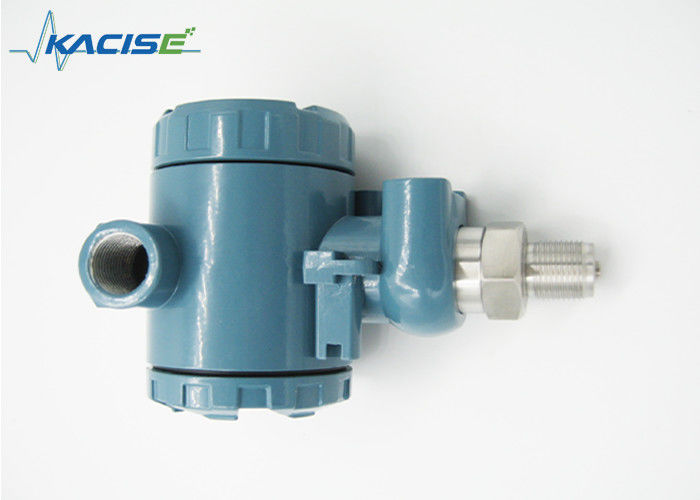

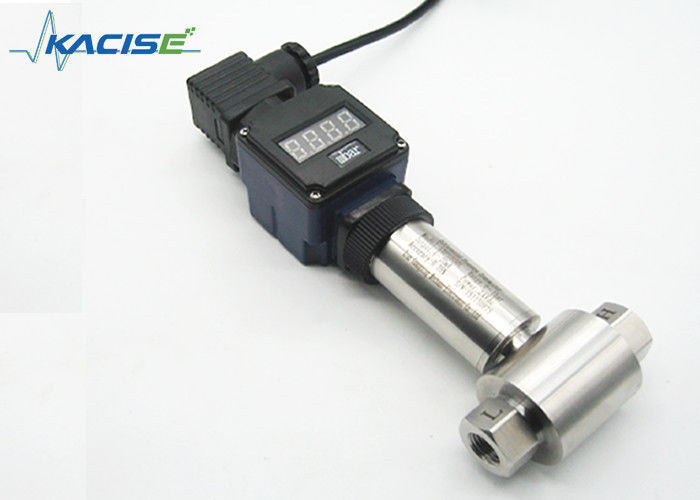

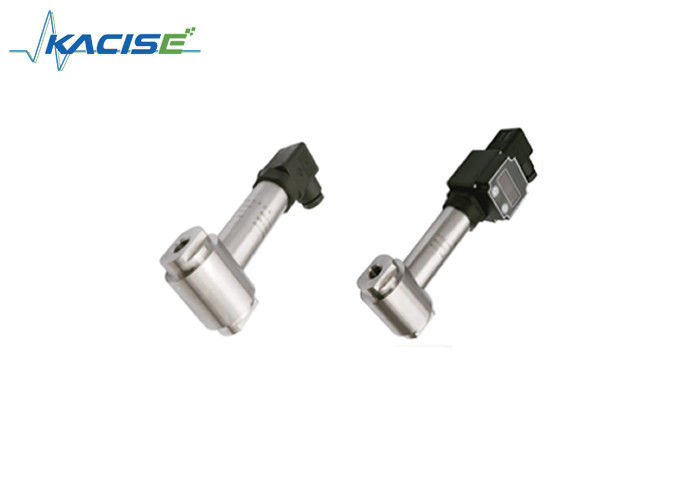

GXPs500 4~20mA and 0-10V Output Differential Pressure Sensors for Groundwater monitoring

Feature

Accuracy: ±0.25,±0.5%F.S
Diffused-Silicon oil-filled core
Multiple pressure range and output signal
Display and output node available
Various screw connection
Non polarity 2 line current output
AC,DC voltage output
Intrinsically safe mode , isolation explosion protection, CE

Electronic interface and signals definition

Accurate Differential Pressure Transmitter , Differential Pressure Sensor 0

Parameter

Spec.	Value
Pressure range	0~±5kPa……±5000kPa
Load pressure	1.5 times nominal value
pipeline Isostatic pressing	3, 5, 10 times nominal value 20MPa
Accuracy	±0.25%F.S, ±0.5%F.S
Stability	Typical value 0.1%F.S, Max. value: 0.2%F.S
Operating temperature	-40°C~85°C
Compensation temperature	-10 °C~70 °C
Medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti & 316L
Electrical properties	two-wire system	Three-wire system
Output signal	4~20mA	0/1~5V	0~10V
Power supply	10~30Vdc	8~36Vdc/ac	11~30Vdc/ac
Load resistance	(U-10)/0.02(Ω)	>100kΩ
Min. isolation between case & terminations	>100M Ω@50V
Electric Strength	500V@60 second
vibration/Impact	10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Seal grade	Waterproof cable, Protection grade IP68; DIN43650, IP65
Response time	10ms
Pressure durable	2×10⁶pressure circle @25 °C
EMI/ EMC	EMI: EN50081-1/-2; EMC: EN50082-2
lightning protection	Air conduction resistance 8000V, outer casing, cable conduction resistance 4000V

Application

The city flood protection and water logging drainage project
Air supply system for cogeneration plant
Ventilation system testing for under pit
Hydropower station ‘s water-head
Underwater engineering
Groundwater monitoring
Sewage disposal
Oil-field flooding
