Place of Origin:
Shaanxi, China (Mainland)
Nama merek:
KACISE
Model Number:
K-2QJJ300/300D/500/500D

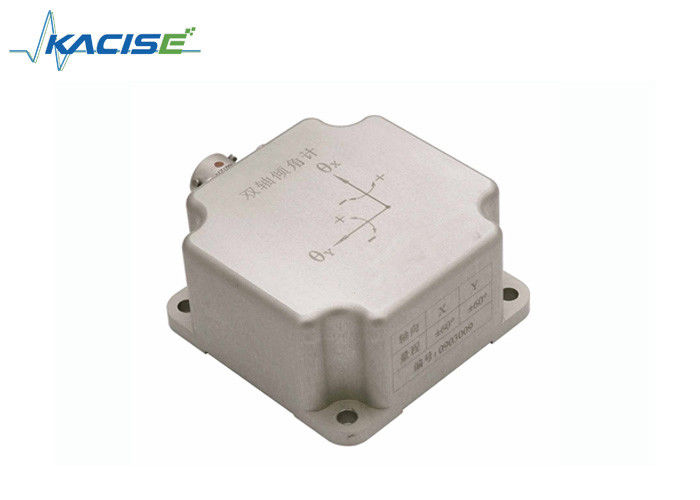

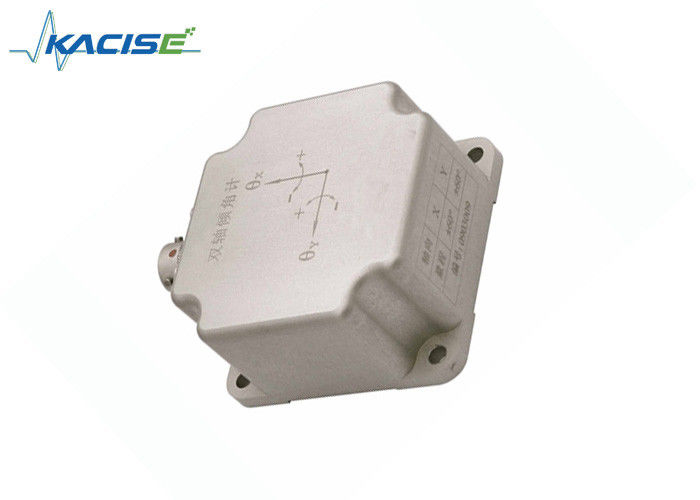

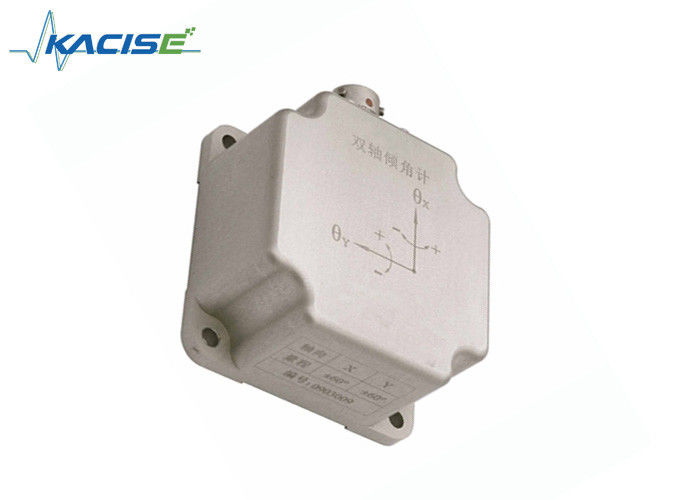

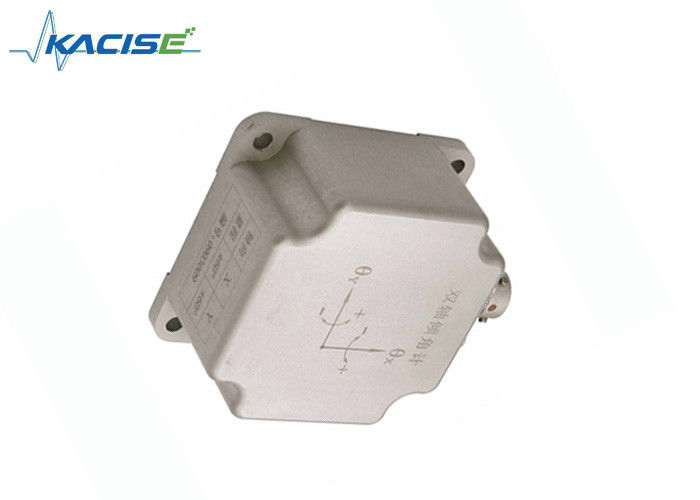

High Accuracy Inclinometer Sensor With explosion protection shell (300D/500D)
Features
☆ high accuracy
☆ temperature compensation
☆ With explosion protection shell (300D/500D)
Application
☆engineering machinery horizontal measurement
☆Precision Angle measurement
Specification
| Type | K-2QJJ300/300D | K-2QJJ500/500D |
| Electric character | ||
| Input voltage | 10～30VDC | |
| Input current | ＜40mA | ＜70mA |
| Output mode | RS485 | 4～20mA |
| Baud Rate | 19200 bps | - |
| Data updating | 25 Hz | - |
| Performance index | ||
| Range | ±20°,±40°,±60°,±75°selectable | |
| Nonlinear (%F.S.) | 0.1%F.S. | |
| Resolution (°/s) | 0.01° | |
| Bias | ≤0.2° | |
| Bandwidth | 5Hz | |
| Start-up time | ＜0.5s | |
| Environmental characteristics | ||
| Compensated Temperatures | -40℃～70℃ | |
| compensation temperature | -40℃~+70℃ | |
| Temperature (°C) | -40℃~+70℃ | |
| Storage Temperature | -40℃~+125℃ | |
| Physical Characteristics | ||
| Weight (g) | 250g | |
| Dimensions | 60×60×30mm | |
Note: Range can choose ±20°,±40°,±60°,±75°
Dimension
workshop
Our Advantage
1.100% real photos--Detailed images, detailed description7
2.*24 hours online--Efficient service, Professional answers
3. The sale of products within one year warranty and life time maintenance.
4.After the receipt of the goods if the quality problems can be returned(Not artificial damage, Never used)
5.OEM is available; small quantities, mixed bulk orders are also welcome;
6. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
When the company set up, we began to focus on the coordination of military supplies production, achieved GB/T19001-2008/ISQ9001:2008, GJB 9001B-2009 certification. When our company is running mature and stable, in 2008, we began to develop our business. Based on the production of military products quality control, we developed a lot of sensor products, such as a pressure sensor / transducer / sensor, level transmitter / ultrasonic level meter / ultrasonic flow meter, inertial navigation products, IMU, gyroscope, accelerometer etc.
Company strength
1.Through the ISO9001: 2008 quality system certification, access to a number of patent certificates and software copyrights
2.And Xiamen University, Chinese Academy of Sciences Institute of Acoustics, 715, Ha Engineering underwater acoustic college and many other colleges and universities,Scientific research unit cooperation
3.Products in the Northwest Industrial Group, Hainan Airlines Co., Ltd., are widely used
4.China's largest sensor, flowmeter production base
