Place of Origin:
Shaanxi, China (Mainland)
Nama merek:
KACISE
Model Number:
K-IMU-004

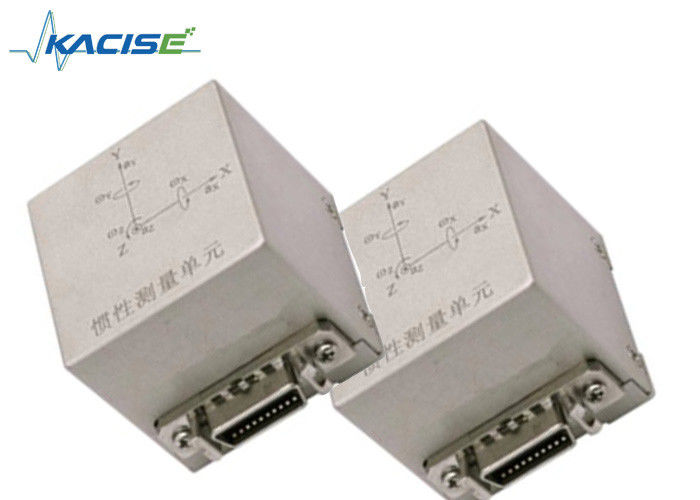

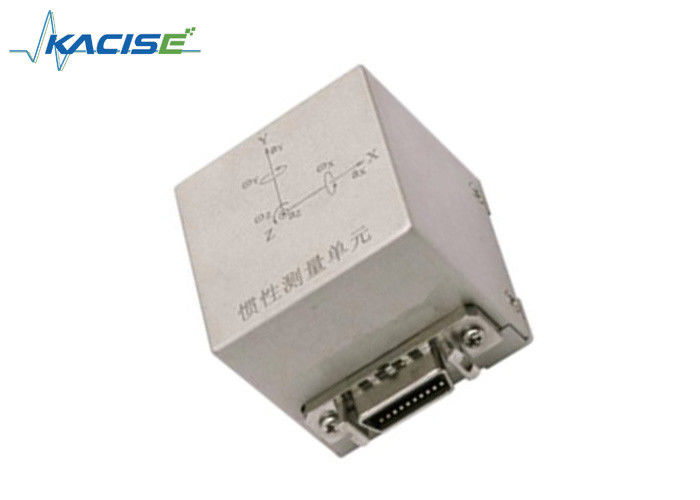

Analog Voltage Output Navigation Guidance System Lnertial Measurement Unit
Features
☆ Analog voltage output, Economic products
☆vibration performance
☆Small size, light weight
Application
☆ System for vehicle rollover
☆ Navigation guidance system
Specification
| Type | K-IMU-001 | ||||||||
| Electric character | |||||||||
| Input voltage | 5±0.25 VDC | ||||||||
| Input current | ≤ 30 mA | ||||||||
| Output Mode | 0.5～4.5 V | ||||||||
| Performance index | |||||||||
| Sensor | Gyroscope | accelerometer | |||||||
| Range | ±100゜/s | ±10g | |||||||
| Bandwidth | ≥40 Hz | ||||||||
| Sensitivity | 15±3mV∕°/s | 100±10mV / g | |||||||
| Resolution (°/s) | ≤ 0.06°/s | 0.002g | |||||||
| Nonlinear (%FS) | ≤ 0.5% Fs | ||||||||
| Bias | 2.5±0.1 V | ||||||||
| Bias stability | 0.1°/s | 0.002g | |||||||
| Start-up time (ms) | ≤ 0.035 s | ||||||||
| Environmental characteristics | |||||||||
| Temperature (°C) | -40~70 | ||||||||
| Storage Temperature | -40~+125 | ||||||||
| Resistant to shock | 500g | ||||||||
| Physical Characteristics | |||||||||
| Weight (g) | 90g | ||||||||
| Dimensions | 38×38 ×36 mm | ||||||||
Dimensions
Company strength
1. Through the ISO9001: 2008 quality system certification, access to a number of patent certificates and software copyrights
2. And Xiamen University, Chinese Academy of Sciences Institute of Acoustics, 715, Ha Engineering underwater acoustic college and many other colleges and universities,Scientific research unit cooperation
3. Products in the Northwest Industrial Group, Hainan Airlines Co., Ltd., are widely used
4. China's largest sensor, flowmeter production base
workshop
Our Advantage
1.100% real photos--Detailed images, detailed description7
2.*24 hours online--Efficient service, Professional answers
3.After the receipt of the goods if the quality problems can be returned(Not artificial damage, Never used)
4. OEM is available; small quantities, mixed bulk orders are also welcome;
5.The sale of products within one year warranty and life time maintenance.
6. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
7. Payment: L/C, T/T, Paypal , Western Union, MoneyGram;
The IMU(Inertail Measurment Unit)is used to determine the full angle rates and acceleration in 3D space. The IMU has the characteristic of high stability, small size, low weight, instantaneous startup, etc. and can be used in the integrated navigation system.
Our company’s IMU products include IMU, IMU-04, IMU-07, and they can be used for the aircraft control, platform stability and vehicle navigation system.
