Manual of GXPS609A Liquid level measuring system in GPRS communicate mode
1.System Summarize
The “Liquid height measuring system in GPRS communicate mode” include “Liquid height measuring terminal equipment in GPRS communicate mode”, “Server Management Software” and “Configuration Line”. It is used for timing measure liquid height value, temperature value, longitude and latitude data, date and time information and show these value in the “Server Management Software”.
Notice 1: The “Liquid height measuring system in GPRS communicate mode” for short “System” as following description.
Notice 2: The “Liquid height measuring terminal equipment in GPRS communicate mode” for short “Terminal” as following description.
Notice 3: The “Server Management Software” for short “Software” as following description.
Notice 4: The “Configuration Line” for short “Line” as following description.
The “Terminal” is used for timing measure liquid height value and temperature value, and transmit these measuring value to the “Software” in GPRS communicate mode, the user can use “Software” to see the liquid height value and manage these “Terminal”.
The “Software” is only a demo software to offer the user, its function is very simple, and it is not have a powerful function to take many “Terminal” running at the same time. If user need a large system “Software” with powerful function, please contact Xi’an Kacise Optronics Tech Co., Ltd.
The “Line” is only used for configure “Terminal” by user, it is connect between the “Terminal” and the RS232 serial port of computer.
2.“Terminal” Structure Drawing

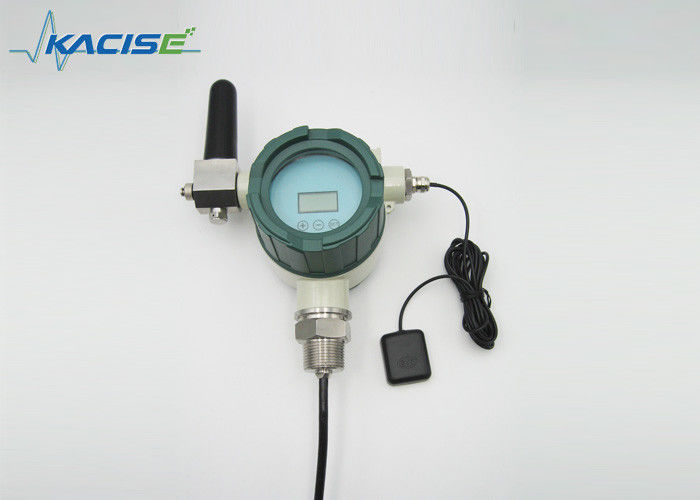

GXPS609(GPRS) terminal structure drawing: as picture one
The back of GXPS609(GPRS) terminal: as picture two
3.Technology Standard and Power Supply Use
| Measure Range | 0～3m diesel. |
| Measure Precision | 0.5%F.S. |
| Power Supply Way |
3.6VDC battery and 10VDC～35VDC external power supply. |
| Defend Grade | IP65 |
| Work Temperature | -25℃～85℃. |
| Storage Temperature | -25℃～85℃. |
| Communication Frequency | GSM/GPRS 850/900/1800/1900MHz. |
| Interface Type | NPT1. |
| Timing Work Time | 3 minute ～ 1000 minute(can set). |
| Append Function | LCD, key-press, GPS. |
| “Terminal” battery use time limit | for example, use number one battery “ER34615M”, its capacity is 14.5AH, the “System” work frequency is work once per hour: The GXPS609 (GPS) terminal can work about 120 days. |
| Battery model select |
recommend use number one battery “ER34615M”. If user want select battery by self, please according to the battery standard as following. battery voltage: 3.0VDC～3.6VDC; max continue output current: more than 0.5A; pulse output current capacity: more than 1A.
|
| Power supply use illuminate |
the “Terminal” can use battery or external power supply. See the terminal structure drawing, the position of external power supply in the “External Electrical Interface”, in the interface, “1” is anode, “2” is cathode.
|
4.“System” Use Illuminate
When you use the “System” maiden, please configure the “Terminal” use the “Software” first, and then you can use the “System” complete.
4.1 “Software” Setup
⑴ Copy the “GPRS_Server_Setup” file in the CD to the compute.
⑵ Double click “setup” and “GPRS_Server_Setup” in turn.
Please reset the computer when setup complete.
4.2“Terminal” configure
⑴ Open the back cover of “Terminal”, fix the battery, and open the “Power Switch” to “ON”.
⑵ Hold the green port of “Line” insert “Configuration Socket”, and another port connect to the RS232 serial port of computer.
(3) Double click “LLMServer.exe” to open the “Software”: as picture three
Picture three
Picture four
If appear the dialog box as picture four, please click “determine” or “OK”.
(4) Click “” button, open the “GPRS Information Configure” dialog box, select the serial port number, baud rate is 9600, and click “Open serial port” to open the serial port: as picture five
Picture five
⑸ Please wait for the initialization of “Terminal”, this process is about five minute. After five minute, press “Configuration Keys” on the “Terminal”, and then the “GPRS Information Configure” dialog box can show a message “Message: The terminal is connected!”. The user can configure the “Terminal” at this time: as picture six.
Picture six
⑹ “Server IP”: Must fill in, please fill in the “public network IP address” of server, the “public network IP address” is unique in the global.
“Port number”: Must fill in, please fill in the port number of server by router assign.
“Mobile Number”: Fill in mobile telephone number, this number can receive alarm short message when the GPRS disconnection. If user need this function, please fill in. This function can open or close use the “Software”.
⑺ Click “Save Configuration” button to save in the “Terminal”, and you can click “Read Configuration” button to read these configuration. If it is wrong when you read out, please configure again; if it is right, please unplug the “Line”, close “Power Switch” to “OFF”, and cover the back cover of “Terminal”.
⑻ Configuration process is complete at this time, please according to the description as follows to make the “System” work normal.
“System” work process description and use illuminate.
4.3 .1“System” work process description:
⑴ Open and Running the “Software” on the server at first.
⑵ Open the power supply of “Terminal”, and the “Terminal” start work.
⑶ The “Terminal” will check time with “Software” after the “Terminal” reset startup. The “Software” will send the present date and time to the “Terminal”, the “Terminal” will save the data and time, and update the data and time by oneself.
⑷ The “Terminal” will send present measure information to the “Software” when check time work is complete, the measure information includes: “Terminal” address, liquid pressure value at present, “Terminal” running mode, battery capacity, latitude, longitude, present date and time and go on. These measure information will show on the “Software” main interface.
⑸ User must configure the “Terminal” by self in the configure mode(set mode), and then click “Enter Work mode” button let the “Terminal” into the work mode.
⑹ The “Terminal” can self save measure information when the “Software” is disconnect, and send the alarm short message to the mobile telephone number at the same time. The most save measure information number are 5000 item, when the “Terminal” is connect to the “Software” again, the “Terminal” can self send these saved measure information to the “Software”(send frequency: 5 seconds to send a measure information), and saved into the database when “Software” receive these measure information. The “Software” main interface is only show the latest measure information.
⑺ Alarm short message content: “Alarm, GPRS Disconnection! The present pressure value is:***KPa”.
⑻ Because the special system running mode, we don’t recommend user to use the “save measure information” function with long time, therefore please resume the system connect when you receive the alarm short message or find system link disconnect.
4.3.2 “System” use illuminate
(1) Setup the “Software” on the server, and double click the software icon to open the “Software”: as picture three.
Picture seven
(2)“Software” main interface: as picture eight
Picture eight
(3)Click button or click “Parameter Setting” button under the “Setting” menu, the “Setting” dialog box is show. This dialog box is used for configure the “Software”: as picture five
“Server network port setting”: fill in local server computer IP address, and port number of server by router assign.
“Communication failure time setting”: “Terminal” connect-overtime time configure. If “Software” don’t receive the measure information during this time, the main interface table “Status” column will show red word “Disconnect”, this information indicate GPRS line maybe already disconnect, please check server and “Terminal”, and resume connect as soon as possible. This time configure must more than “timing work time interval”, We recommend user configure this time three times than the “timing work time interval”.
“Bucket range set”: configure the column height in the main interface at the right, simulate liquid height in the real environment.
“Alarm Function Set”: alarm function configure, set liquid height alarm up limit and down limit value.
“LanguageSet”: “Software” Language choose, default English
⑷ Click button or click “Data Query” button under the “Search” menu, the “Data Query” dialog box is show: as picture ten
“Terminal ID”: select “Terminal” address you want inquire, or select “All” to inquiry all the “Terminal”.
“Query time”: select the time section you want inquire.
“Inquiry” button: Inquire command button.
“Export” button: as “EXCEL format” export all the data of inquire.
“Delete” button: delete all the data you inquired.
⑸ Insert the SIM card with GPRS serve, open the “Terminal” power supply.
⑹ This “Terminal” will use at best two minutes for search GPS signal, and then send the all measure information to the “Software”, so the user need to wait for about three minutes to see these measure information on the “Software” for the first time.
⑺ When the “Software” receive measure information for the first time, the user need to configure the “Terminal”, and let the “Terminal” into the “Work Mode”. Double click the row of show “Terminal” measure information, the “Terminal Setting” dialog box is show: as picture eleven
Picture eleven
⑼ The “Terminal Setting” dialog box can show the base information of every “Terminal” in the table, and user can configure the “Terminal” in the interface.
The table of above in interface show the base information of every “Terminal”, these information is saved in the database of server, user can click “Delete” button to delete the information in the database of server.
“Working parameter configuration” label:
“Terminal Name”: when the new “Terminal” is coming, user should called a user-defined name for the new “Terminal” and fill in here, then click the “Set” button.
“Liquid Density”: fill in liquid density of measured. For example, the density of diesel is 0.84, please fill in 0.84, and click the “Set” button.
When the “Terminal Name” and “Liquid Density” are filled complete, user must click “New Terminal” button to add the new “Terminal” into the database of server.
“Alarm Upper” and “Alarm Lower”: Set liquid height alarm value.
“Expansion parameter configuration” label: as picture twelve
Picture twelve
“Terminal ID”: configure the new “Terminal” address. The “Terminal” address is already configure complete in factory, we propose user please don’t configure again.
“SMS Function”: open or close send short message function, and click “Set” button.
“Time Interval”: configure the timing work time interval of “Terminal”, and click “Set” button. Please configure the “Time Interval” more than 5 minutes.
⑽ All the parameters are configure complete, please click “Enter Work Mode” button, let the “Terminal” work into the “Work Mode”.
In the “Work Mode”, when the “Terminal” is sending to the measure information, the LCD screen can show the pressure value and pressure unit. When the “send process” over, the “Terminal” will be cut power supply and begin sleep, until the next waken. When the “Terminal” begin sleep, please don’t do anything.
⑾ If user want modify configure again, please click “Enter Set Mode” button and wait for the “Terminal” next waken, and exit the “Work Mode” into the “Set Mode”. In “Set Mode”, user can configure the “Terminal”.
⑿ “Message” frame in the bottom of “Terminal Setting” interface: all the message of operate this “Terminal Setting” interface will show here, user can know the operate is whether succeed or failure see here.
⒀ In the “Software” main interface, click the row of shown measure information, the column will simulate show the liquid height, the chart will show the liquid height value graph.
⒁ In the “Software” main interface, click “About Us” button under the “About” menu, the “About Us” dialog box is show. This dialog box is show the information of XIAN KACISE OPTRONICS TECH CO., LTD.
5.Key-press Operate
The “Terminal” take three key-presses, “(+)”,“(-)”,“(SET)”. User can use these key-presses when the “Terminal” running in “Set Mode” and don’t send any data at the moment.
Operate steps: key-press menu includes “AS ” and “SL”.
“AS ”: configure “Terminal” address.
“SL”: configure “Terminal” timing work time interval.
⑴ Long press “(SET)”, LCD show “AS”, the “Terminal” into key-press menu operate mode.
⑵ Short press “(+)”, switch key-press menu option “AS ” and “SL”.
⑶ Long press “(-)” in the “AS ” menu, you can exit key-press menu show interface, and into show pressure value interface.
⑷ Short press “(SET)” in the “AS ” menu, you can into the configure “Terminal” address interface, address range “0～253”. press “(+)”, address add “1”; press “(-)”, address decrease “1”; press “(SET)”, save address and return. If you don’t want configure “Terminal” address, long press “(-)” to return.
⑸ Short press “(SET)” in the “SL” menu, you can into the configure “Terminal” timing work time interval interface, time interval range “0 seconds～60000 seconds”. press “(+)”, time interval add “1second”; press “(-)”, switch LCD number show segment; press “(SET)”, save time interval and return. If you don’t want configure, long press “(-)” to return
6.Maintenance Illuminate
⑴ Please insert a SIM card with GPRS serve Before use the “Terminal”. The SIM card must accord 800MHz, 850MHz, 1800MHz, 1900MHz.
⑵ Insure use the battery recommend. If “Software” show the “Terminal” battery capacity shortage, please replace new battery.
⑶ If communication disconnect between “Software” and “Terminal”, please check server, “Software”, “Terminal”, battery, and SIM card is whether normal or fault.
⑷ Avoid “Terminal” antenna near the metal and strong magnetic object.
⑸ If “System” work fault, and you don’t resolve the fault, please contact Xi’an Kacise. We don’t allow user take down and repair the “Terminal” for yourself.
