Place of Origin:
China (Mainland)
Nama merek:
Kacise
Sertifikasi:
certificate of explosion-proof, CE
Model Number:
GXPS400

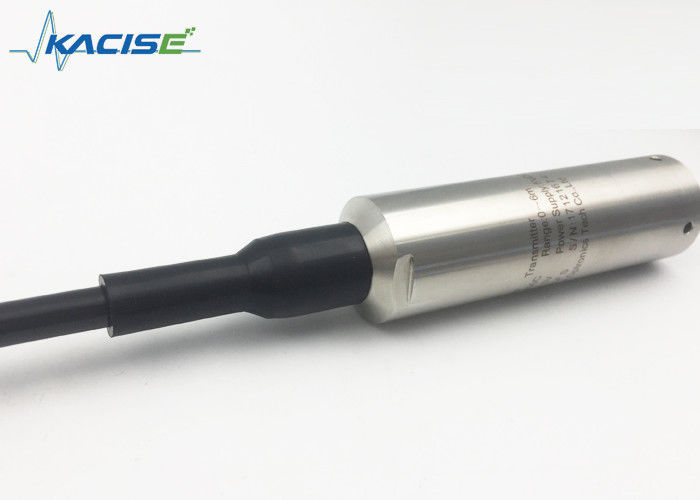

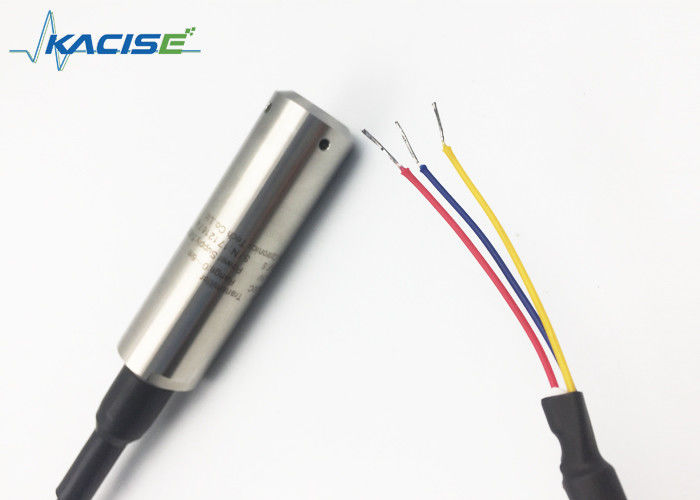

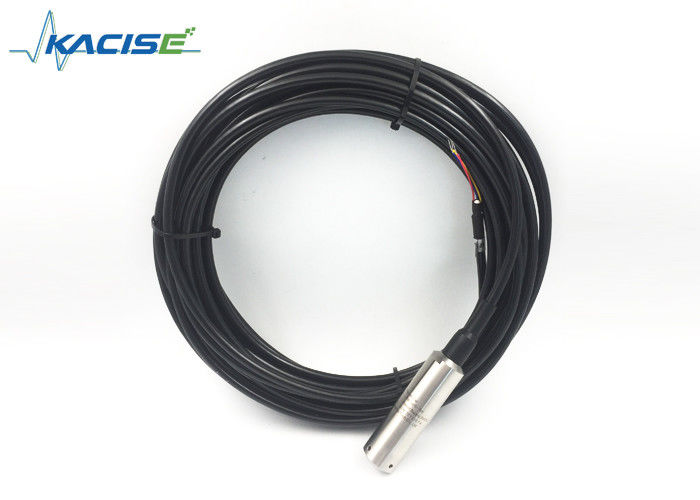

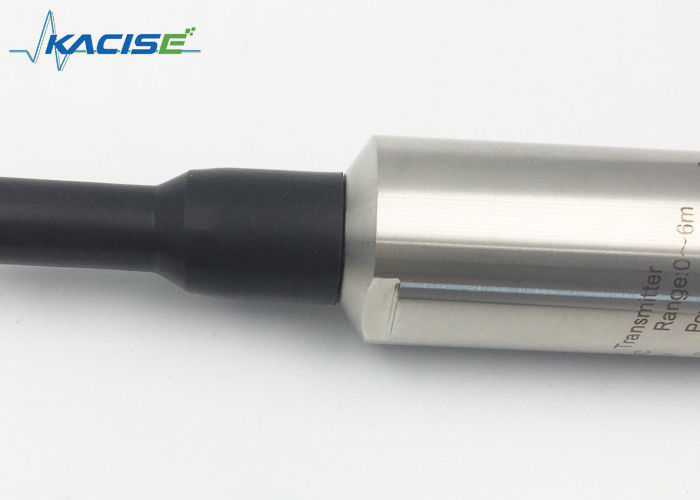

High accuracy Submersible Water Liquid Level Sensor Transmitter Price 0~200m
1.Product Description
GXPS400 series level transmitter is a special structure and use of products, high precision, small size and good stability. Special strong cables for corrosive, abrasive, and chemical environment are offered according to filed environment. The products are approved with CE, intrinsically safe and explosion-proof certificates. Customized solutions for various fluids can be supplied.
2.Parameter
| Spec. | Numerical value | ||
| Accuracy | ±0.25%F.S, ±0.5%F.S, ±1.0%F.S | ||
| Stability | Typical value: 0.1%F.S Max.: 0.2% F.S/year | ||
| Operating Temperature | -40°C~85°C or -40 °C ~125 °C | ||
| Overload pressure | 1.5times Rated pressure | ||
| Secondary containment | 3 times rated pressure | ||
| Compensation temperature | -10°C~70°C | ||
| Pressure range |
0~1……500mH2O 9.8KPa…4900KPa 0.09bar…49bar 0.09atm…48atm 1.4psi… 711psi 2.8inchHg…1400inchHg |
||
| Response time | 10ms | ||
| Electric strength | 500Vac@1 second | ||
| Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L | ||
| Insulation | 〉100MΩ@50V | ||
| Electrical Connections | waterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue protection grade : IP68 | ||
| Pressure interface | G1/4,input type | ||
| Graduate Certificate Programs | certificate of explosion-proof, CE | ||
| Electromagnetic compatibility | electromagnetic radiation EN50081-1/-2, electromagnetic susceptibility: EN50082-2 | ||
| Lightning protection | air conduction resistance 8000V,case, cable conduction | ||
| Electrical properties | 2 line | 3 line | |
| Output signal | 4~20mA | 0~5V | 0~10V |
| Power supplies | 10~30Vdc | 80~30Vdc/ac | 11~30Vdc/ac |
| Load resistance | (U-10)/0.02(Ω) | 〉100kΩ | |
3.Feature
4.Application Field
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
